0.6/1kV HF-EPR Insulated, SW2/SW4 Sheathed Armoured Flame Retardant Power & Control Cables
Application and Description
These elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.
Standards
BS 6883
IEC 60332-3A Flame retardant
IEC 60754-1; IEC 60754-2 Corrosivity
IEC 61034-2 Smoke density
Cold bend and impact (-40°C) (on request)
CSA C22.2 No. 38-95 (on request)

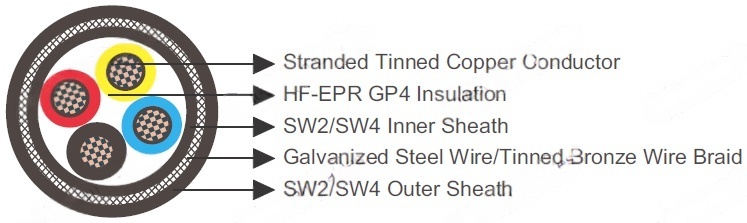

Construction
Conductor : Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
Insulation : HF-EPR GP4 according to BS 7655 1.2.
Inner Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
Armour : Galvanized steel wire braid or tinned bronze wire braid (single core). Copper wire braid can be offered upon request.
Outer Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
Mechanical and Thermal Properties
Minimum Internal Bending Radius : 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range : -40℃ ~ +90℃
Dimensions and Weight
Single core cables

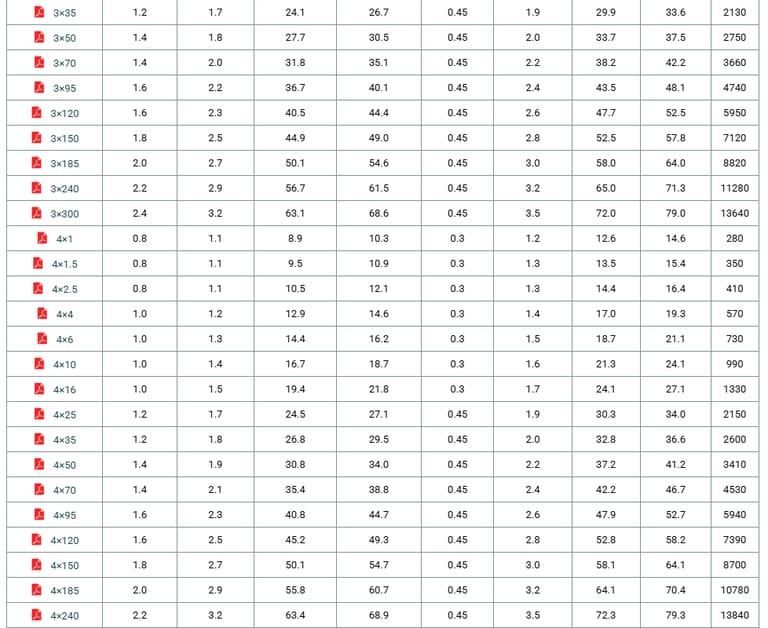

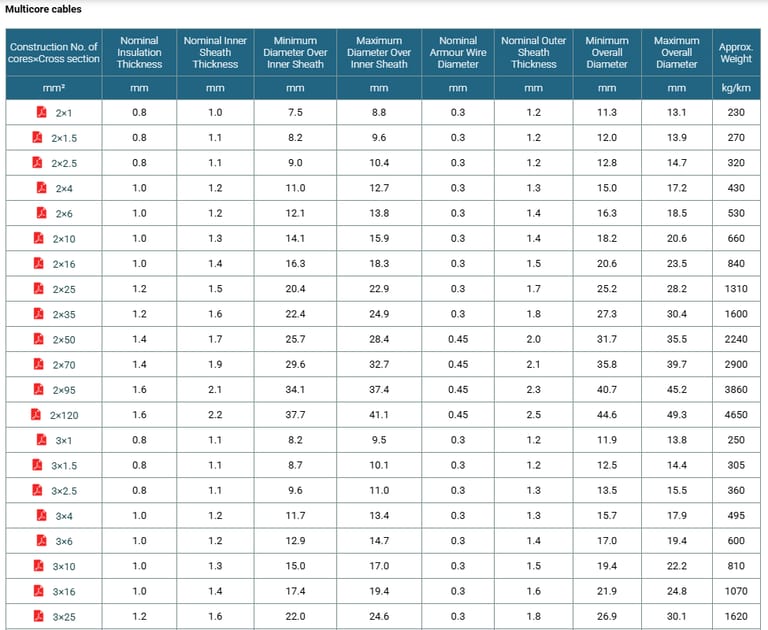

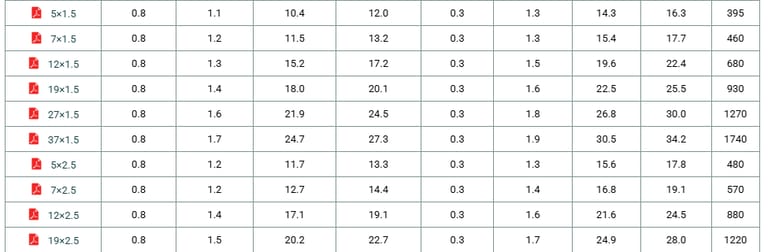

Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Inner Sheath Thickness | Minimum Diameter Over Inner Sheath | Maximum Diameter Over Inner Sheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|---|---|---|---|
mm² | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
1.0 | 1.0 | 6.3 | 7.6 | 0.3 | 1.1 | 9.8 | 11.7 | 220 | |
1.0 | 1.0 | 6.8 | 8.1 | 0.3 | 1.1 | 10.4 | 12.2 | 250 | |
1.0 | 1.0 | 7.7 | 9.1 | 0.3 | 1.2 | 11.5 | 13.4 | 310 | |
1.0 | 1.1 | 8.9 | 10.3 | 0.3 | 1.2 | 12.7 | 14.6 | 400 | |
1.2 | 1.2 | 11.1 | 12.8 | 0.3 | 1.3 | 15.0 | 17.3 | 570 | |
1.2 | 1.2 | 12.0 | 13.7 | 0.3 | 1.4 | 16.1 | 18.4 | 660 | |
1.4 | 1.3 | 13.7 | 15.5 | 0.3 | 1.4 | 17.9 | 20.2 | 870 | |
1.4 | 1.3 | 15.5 | 17.4 | 0.3 | 1.5 | 19.8 | 22.6 | 1110 | |
1.6 | 1.4 | 17.7 | 19.8 | 0.3 | 1.6 | 22.2 | 25.2 | 1460 | |
1.6 | 1.5 | 19.6 | 22.0 | 0.3 | 1.7 | 24.3 | 27.3 | 1770 | |
1.8 | 1.6 | 21.6 | 24.2 | 0.3 | 1.8 | 26.5 | 29.7 | 2110 | |
2.0 | 1.7 | 24.0 | 26.6 | 0.45 | 1.9 | 29.8 | 33.5 | 2720 | |
2.2 | 1.8 | 27.1 | 29.9 | 0.45 | 2.0 | 33.1 | 36.9 | 3410 | |
2.4 | 1.9 | 30.0 | 33.2 | 0.45 | 2.1 | 36.2 | 40.1 | 4180 |
