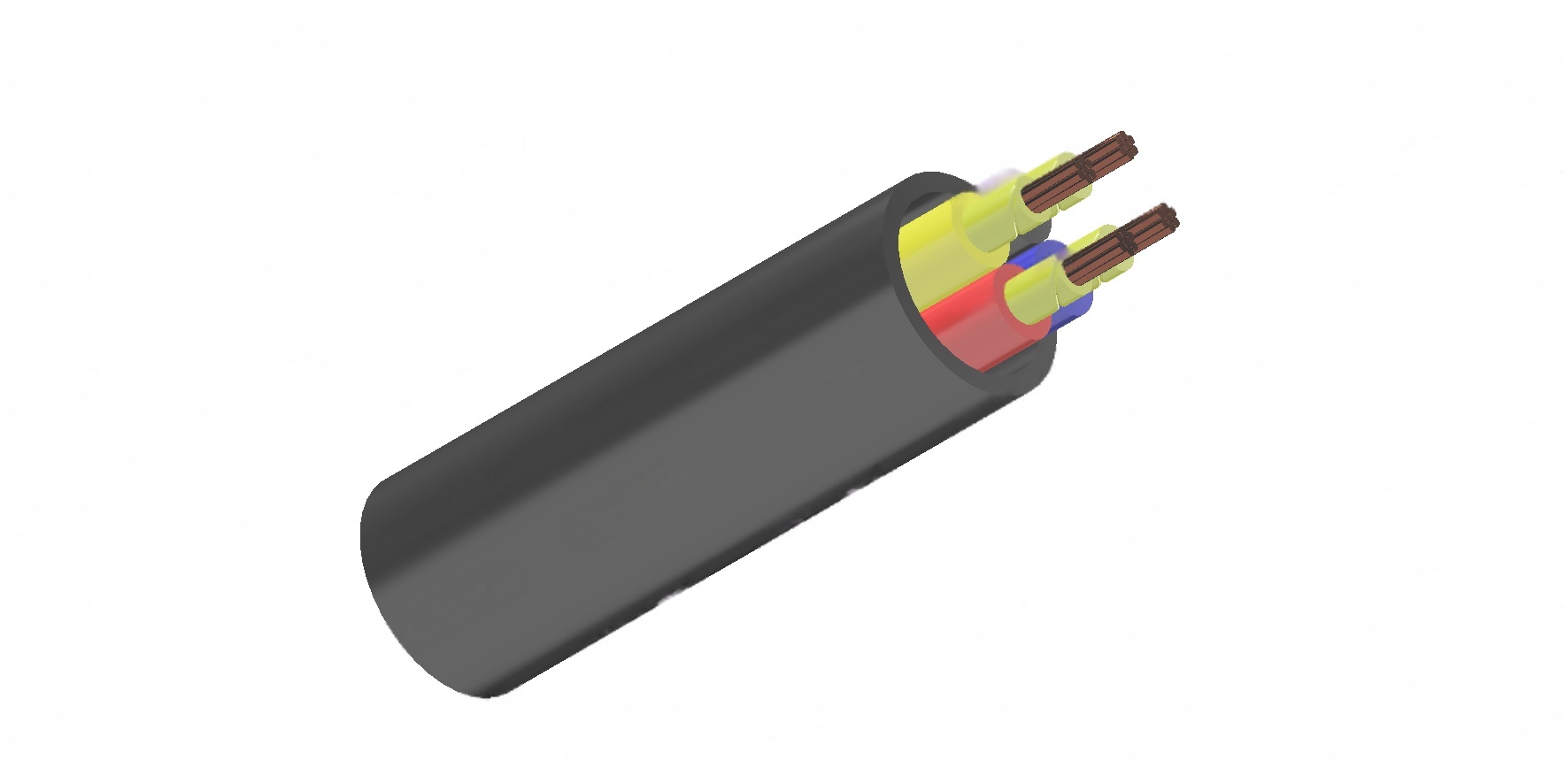

0.6/1kV HF-EPR Insulated, SW2/SW4 Sheathed Unarmoured Fire Resistant Power & Control Cables

Application and Description

These fire resistant elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications where fire integrity is essential.

Standards

BS 7917

IEC 60331-31 Fire resistant

IEC 60332-3A Flame retardant

IEC 60754-1; IEC 60754-2 Corrosivity

IEC 61034-2 Smoke density

Cold bend and impact (-40°C) (on request)

CSA C22.2 No. 38-95 (on request)

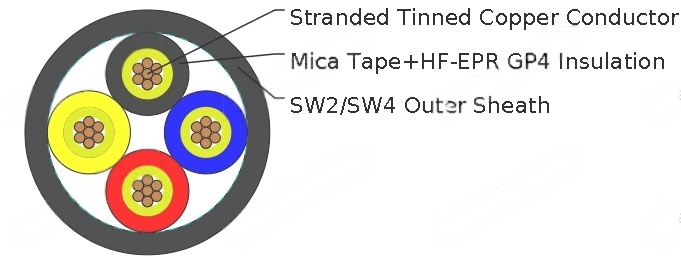

Construction

Conductor : Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.

Insulation : Mica tape + HF-EPR GP4 according to BS 7655 1.2.

Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Mechanical and Thermal Properties

Minimum Internal Bending Radius : 6×OD (OD>25mm); 4×OD (OD ≤25mm)

Temperature Range : -40℃ ~ +90℃
