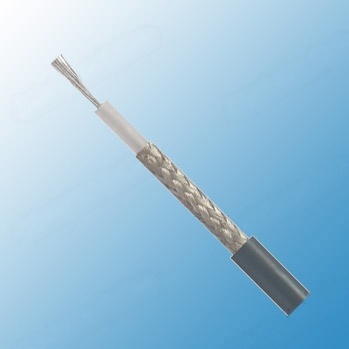

0.81 mm Mini-Coax
Construction
Inner conductor | Silver plated copper | 7 x 0.05 mm |
Dielectric | PFA | Φ0.40 mm |
Outer conductor | Silver plated copper | 0.05 mm |
Shield coverage |
| 95% |
Sheath | PFA | Φ0.81 mm |
Electrical & Mechanical Characteristics
Impedance | 50±3 Ohm |
Nominal capacitance | 96 pF/m |
Velocity of propagation | 70% |
Insulation resistance | |
Inner conductor resistance | Ohm/Km |
Outer conductor resistance | Ohm/Km |
Operating temperature range | -55°C - +180 °C |
Test insulation voltage | 1000V |
Attenuation
Frequency (MHz) | Attenuation (dB/100 m) | Max. Attenuation(dB/100ft) |
1000 | 320 | 97.5 |
2000 | 400 | 121.9 |
3000 | 580 | 176.8 |
4000 | 650 | 198.1 |
5000 | 740 | 225.6 |
6000 | 940 | 286.5 |
