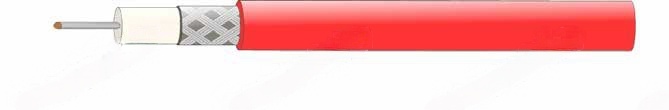

100kV DC Screened Silicone Wire

Advantages of Silicone Rubber Insulation in High Voltage Applications

Silicone rubber stands out as a superstar in the realm of insulation materials for high voltage cables, offering a suite of benefits that make it indispensable. First and foremost is its thermal resilience. Unlike traditional materials that degrade under heat, silicone rubber can operate continuously at 180°C and withstand short-term spikes up to 200°C without losing its insulating properties. This is due to its cross-linked polymer structure, which resists thermal decomposition. In South Africa's power systems, where transformers and machinery often run hot during peak loads, this prevents insulation failure and extends cable lifespan.

Electrically, silicone boasts high dielectric strength – the ability to withstand electric fields without breaking down – often exceeding 20 kV/mm. This makes it perfect for 100kV DC applications, reducing the risk of arcing or tracking. Additionally, its hydrophobicity repels water, minimising surface leakage currents in rainy regions like KwaZulu-Natal. Cold resistance down to -45°C ensures functionality in frosty Free State winters, where brittle materials might crack.

From a mechanical viewpoint, silicone's flexibility is unmatched. It remains pliable even at low temperatures, facilitating easier bending and routing during installation. This elasticity also absorbs vibrations, crucial in high-voltage electric machineries or television receivers exposed to mechanical stress. Chemically stable, it resists ozone, UV radiation, and corrosive environments, such as those in South Africa's mining sector with acidic mine water.

Environmentally, silicone is halogen-free, producing no toxic gases if overheated, aligning with safety standards like those from the Occupational Health and Safety Act. Its longevity reduces waste, supporting sustainable practices. In HVDC cable accessories, silicone composites enhance field grading, preventing premature aging. Overall, these advantages position silicone rubber as a versatile choice, balancing performance with practicality in demanding power cable scenarios.

Comparing Silicone Rubber Cables to Other Power Cables

When pitting high voltage DC silicone rubber cables against alternatives like PVC, EPDM (ethylene propylene diene monomer), or cross-linked polyethylene (XLPE), the differences are stark. PVC-insulated cables, common in low-voltage setups, falter in extreme temperatures; they soften above 70°C and become rigid below 0°C, limiting their use in South Africa's variable climate. Silicone, by contrast, thrives in these conditions, offering superior flexibility and thermal stability.

EPDM rubber cables provide good ozone resistance but lack silicone's high-temperature endurance, topping out at around 150°C. In HVDC applications, EPDM might suffice for accessories, but silicone's better electrical insulation under DC stress – resisting space charge accumulation – gives it an edge. XLPE, widely used in underground power cables, excels in AC systems with high voltage ratings but can suffer from water treeing in moist environments, a risk mitigated by silicone's hydrophobicity.

Cost-wise, silicone cables are pricier due to raw material expenses, but their durability lowers long-term maintenance costs. In flexibility tests, silicone outperforms rubber sheathed cables, which can crack under repeated bending. For high voltage DC, silicone's low corona discharge is vital, unlike some PVC variants that generate more noise.

In South African contexts, where power outages from cable failures cost billions in GDP, silicone's reliability shines. While PILC (paper-insulated lead-covered) cables dominate older MV networks, transitioning to silicone in HVDC upgrades enhances efficiency. Ultimately, silicone rubber cables offer a premium blend of resilience and performance, ideal for future-proofing power systems.

Applications in Power Systems: From Global to Local

High voltage DC silicone rubber cables find their niche in scenarios demanding unwavering performance. Globally, they're used in high-voltage cabinets for safe power distribution, power systems for long-distance transmission, and high-voltage electric machineries like motors in industrial settings. In transformers and electronic instruments, their screening prevents interference, ensuring precise operations. Even in television receivers, they handle internal high voltages without breakdown.

In South Africa, these applications align with national priorities. The country's power grid, spanning over 28,000 km of high-voltage lines, relies on efficient cables to minimise losses. In renewable energy, silicone cables connect solar PV plants in the Northern Cape to the grid, enduring dust and heat. Mining operations in Mpumalanga use them in high-voltage machinery, where flexibility aids in underground installations.

From an economic perspective, these cables support job creation in manufacturing hubs like Johannesburg. Safety-wise, their insulation reduces electrocution risks in densely populated areas. Environmentally, they facilitate HVDC links that integrate green energy, cutting carbon emissions. In healthcare, they're in medical imaging equipment, though less common. Overall, their versatility powers South Africa's development.

Frequently Asked Questions

What is the maximum temperature these cables can handle?

They operate from -45°C to 180°C, with short-term peaks to 200°C, ideal for South African extremes.

Are silicone cables suitable for underground use?

Yes, their water repellency and flexibility make them viable, though often paired with additional protection in MV networks.

How do they compare in cost to PVC cables?

Higher upfront, but lower lifecycle costs due to durability.

Can they be used in marine environments?

Absolutely, tinned copper screening resists corrosion.

What maintenance is required?

Minimal; regular visual inspections suffice, thanks to their robustness.

As South Africa navigates its energy future, 100kV DC screened silicone wires and high voltage DC silicone rubber cables emerge as pivotal players. Their innovative design, coupled with real-world successes, promises a brighter, more reliable power landscape. By embracing these technologies, we not only enhance efficiency but also pave the way for sustainable growth.
