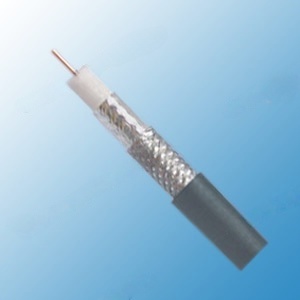

10D-FB
Construction
Inner conductor | Bare copper/Copper clad aluminium | Φ3.5 mm |
Dielectric | Foam /Solid PE | Φ10.0±0.02 mm |
Shield | Bonded aluminium foil | Φ10.2 mm |
Outer conductor | Tinned copper braid(24x7x0.15mm) | Φ10.8 mm |
Shield coverage |
| 85% |
Sheath | PVC/PE | Φ13.0 mm |
Electrical & Mechanical Characteristics
Impedance | 50±3 Ohm |
Nominal capacitance | 84 pF/m |
Velocity of propagation | 80% |
Insulation resistance | >5000 Mohm.Km |
Inner conductor resistance | 1.8(2.8) Ohm/Km |
Outer conductor resistance | 6.4 Ohm/Km |
Operating temperature range | -40°C - +85 °C |
Min.bending radius | 65 mm |
Attenuation
Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
100 | 3.2 | 1 |
150 | 4.1 | 1.2 |
280 | 5.6 | 1.7 |
350 | 6.3 | 1.9 |
400 | 7 | 2.1 |
800 | 10.2 | 3.1 |
900 | 11 | 3.4 |
1200 | 13.1 | 4 |
1500 | 15.3 | 4.6 |
1800 | 16.8 | 5.1 |
1900 | 17.4 | 5.3 |
2000 | 18 | 5.5 |
2200 | 18.8 | 5.7 |
2500 | 22.5 | 6.3 |
