13.8KV Silicone Rubber insulation High-voltage leading Wire
APPLICATION
Apply to F or H class insulation motors and electrical appliances.

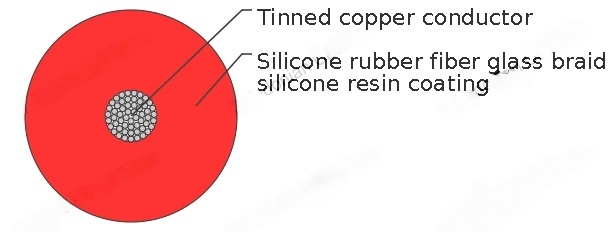

CONSTRUCTION
Conductor : Tinned copper wire
Insulation : Silicone rubber fiber glass braid silicone resin coating
TECHNICAL
Working voltage : 13.8kV
Vol. test : 30KV/5 min
Temp range : -60 ℃ ~ +180 ℃
Tensile strength(Before aging) : ≥5.0N/mm2
Elongation at break(Before aging) : ≥150%
Tensile strength(After aging) : ≥4.0N/mm2
Elongation at break(After aging) : ≥120%
PRODUCT SPECIFICATION
No of Cores | Section | Conductor Structure | Nominal Insulation thickness | Nominal Wire OD |
|---|---|---|---|---|
mm² | No./mm | mm | mm | |
1 | 4 | 56/0.30 | 4.0 | 10.7 |
1 | 6 | 84/0.30 | 4.0 | 11.3 |
1 | 10 | 80/0.40 | 4.0 | 12.6 |
1 | 16 | 126/0.40 | 4.0 | 13.8 |
1 | 25 | 196/0.40 | 4.0 | 15.3 |
1 | 35 | 276/0.40 | 4.0 | 16.6 |
1 | 50 | 396/0.40 | 4.0 | 18.7 |
1 | 70 | 360/0.50 | 4.0 | 20.4 |
1 | 95 | 485/0.50 | 4.0 | 22.5 |
1 | 120 | 608/0.50 | 4.0 | 24.0 |
1 | 150 | 756/0.50 | 4.2 | 26.4 |
1 | 185 | 925/0.50 | 4.2 | 28.4 |
1 | 240 | 1221/0.50 | 4.5 | 32.0 |
1 | 300 | 1525/0.50 | 4.5 | 35.0 |
1 | 400 | 2037/0.50 | 4.5 | 39.0 |
