150Ω profibus-1-pair-0-35mmPROFIBUS 1 Pair 0.35mm² IEC60092

Application

These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

Standards

DIN VDE 0472 part 805
IEC 60332-1&2
IEC 60754-1/2
IEC 61034

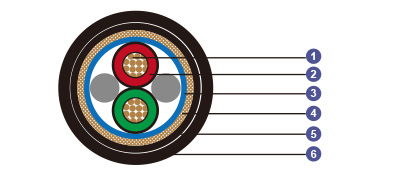

Construction

Conductors

Stranded bare copper.

Insulation

Foam polyethylene (cellular HDPE).

Overall Screen1

Aluminium/polyester tape.

Overall Screen2

Tinned copper braid.

Intermediate Sheath

Halogen-free polymer HM4.

Outer Sheath

LSOH (SHF1).

Core Identification

Core 1: Red
Core 2: Green

Characteristic Impedance

Ω

150 ± 15

Mutual Capacitance @800MHz

nF/km

30

Insulation Resistance

MΩ.km

16000

Attenuation @9.6kHz

dB/km

3

Attenuation @38.4kHz

dB/km

5

Attenuation @4kHz

dB/km

22

Attenuation @16kHz

dB/km

45

Part No.

Construction

No. of elements×No. of cores in element×Cross

section(mm²)

Core Diameter mm

Nominal Overall

Diameter mm

Nominal Weight kg/km

UE092-02Y(ST)CH-1×2×0.35

1×2×0.35

2.75

10.3

110
