176℉/80℃ PP/HDPE Round Electrical Submersible Pump Cable
Application
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standard
IEEE Std. 1019
API RP 11S5
API RP 11S6

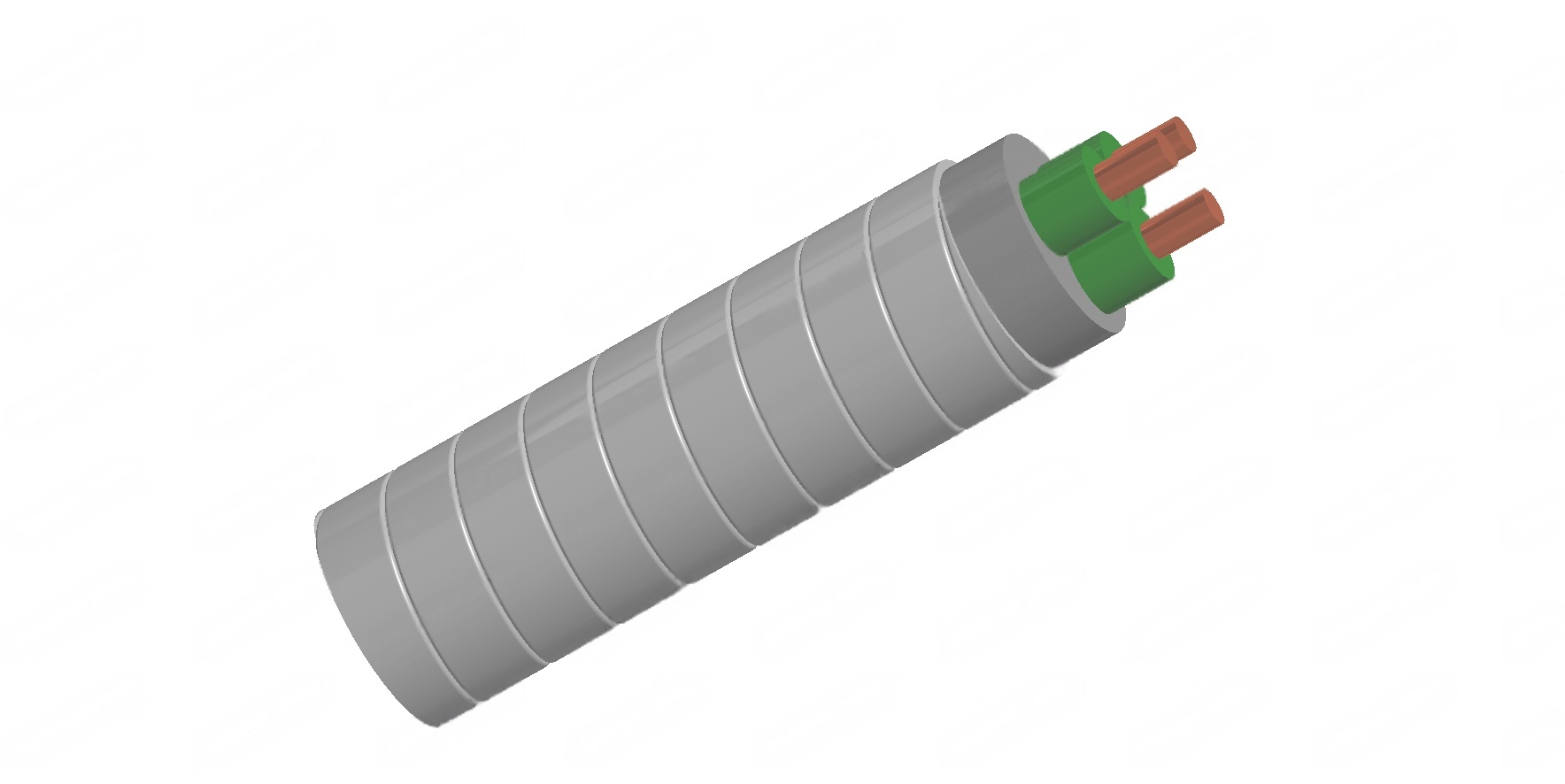

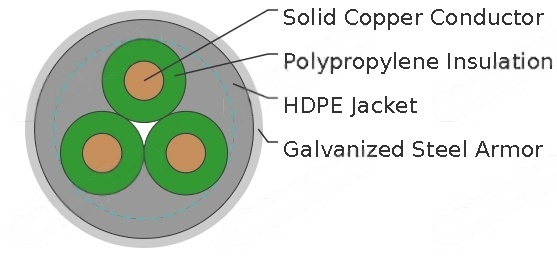

Construction
Conductor | Solid bare copper conductor with poly adhesive layer. |
|---|---|
Insulation | Polypropylene insulation. |
Jacket | Integral HDPE jacket. |
Armor | Galvanized steel armor. |
Dimension and Weight
3kV
Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm^2 | inches | mm | inches | mm | inches | mm | lbs/kft | kg/km |
6 | 13.3 | 0.16 | 4.1 | 0.075 | 1.9 | 1.1 | 26.8 | 860 | 1280 | |
4 | 21.1 | 0.20 | 5.1 | 0.075 | 1.9 | 1.1 | 29.1 | 1080 | 1607 | |
2 | 33.5 | 0.26 | 6.6 | 0.075 | 1.9 | 1.3 | 32.6 | 1420 | 2113 | |
1 | 42.4 | 0.29 | 7.4 | 0.075 | 1.9 | 1.3 | 33.8 | 1640 | 2440 | |
4kV
Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm^2 | inches | mm | inches | mm | inches | mm | lbs/kft | kg/km |
6 | 13.3 | 0.16 | 4.1 | 0.08 | 2.1 | 1.1 | 27.7 | 900 | 1339 | |
4 | 21.1 | 0.20 | 5.1 | 0.08 | 2.1 | 1.2 | 30.0 | 1120 | 1666 | |
2 | 33.5 | 0.26 | 6.6 | 0.08 | 2.1 | 1.3 | 33.5 | 1460 | 2172 | |
1 | 42.4 | 0.29 | 7.4 | 0.08 | 2.1 | 1.4 | 34.6 | 1680 | 2500 | |
5kV
Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm^2 | inches | mm | inches | mm | inches | mm | lbs/kft | kg/km |
6 | 13.3 | 0.16 | 4.1 | 0.09 | 2.3 | 1.1 | 28.5 | 930 | 1384 | |
4 | 21.1 | 0.20 | 5.1 | 0.09 | 2.3 | 1.2 | 30.9 | 1160 | 1726 | |
2 | 33.5 | 0.26 | 6.6 | 0.09 | 2.3 | 1.4 | 34.3 | 1500 | 2232 | |
1 | 42.4 | 0.29 | 7.4 | 0.09 | 2.3 | 1.4 | 35.5 | 1720 | 2559 | |
Other conductor size can be offered upon request.
