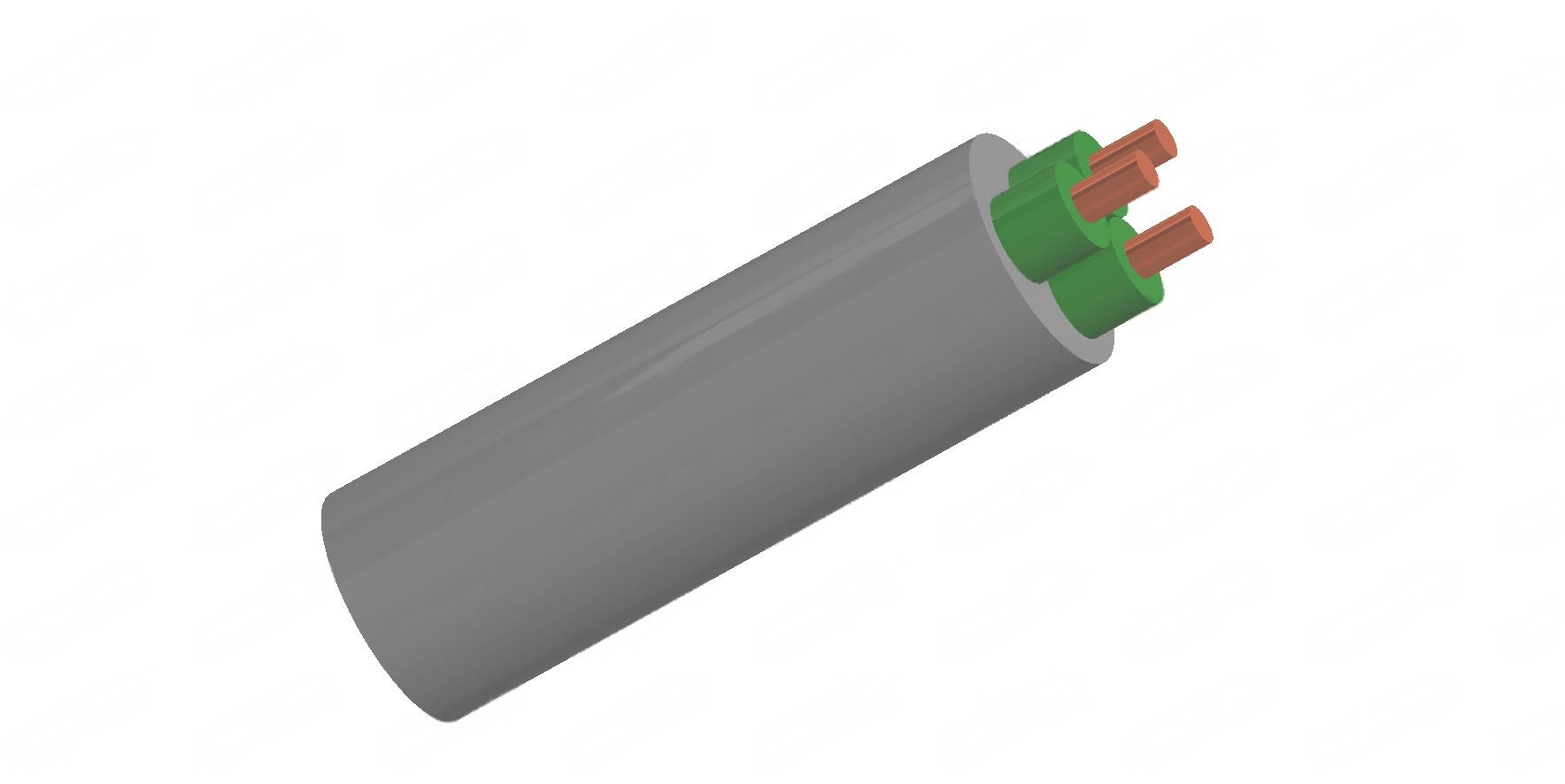

176℉/80℃ PP/PE Unarmored Round Electrical Submersible Pump Cable

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Conductor	Solid/stranded copper conductor.
Insulation	Polypropylene insulation.
Jacket	Excellent abrasion resistance PE.

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYPHY(U)-80-3kV-3G10S	-	10	0.14	3.556	0.075	1.9	0.98	24.9	518	771
QYPHY(U)-80-3kV-3G6	6	13.3	0.162	4.115	0.075	1.9	1.04	26.5	613	913
QYPHY(U)-80-3kV-3G16S	-	16	0.178	4.521	0.075	1.9	1.09	27.7	689	1025
QYPHY(U)-80-3kV-3G4	4	21.1	0.204	5.182	0.075	1.9	1.17	29.7	823	1225
QYPHY(U)-80-3kV-3G25S	-	25	0.222	5.639	0.075	1.9	1.22	31.1	924	1375
QYPHY(U)-80-3kV-3G2	2	33.6	0.258	6.553	0.075	1.9	1.33	33.8	1146	1705
QYPHY(U)-80-3kV-3G1	1	42.4	0.289	7.341	0.075	1.9	1.42	36.1	1358	2021
QYPHY(U)-80-3kV-3G1/0	1/0	53.5	0.368	9.347	0.075	1.9	1.66	42.1	1987	2958
QYPHY(U)-80-3kV-3G2/0	2/0	67.4	0.414	10.516	0.075	1.9	1.80	45.6	2413	3591

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYPHY(U)-80-5kV-3G10S	-	10	0.14	3.556	0.09	2.3	1.07	27.2	582	866
QYPHY(U)-80-5kV-3G6	6	13.3	0.162	4.115	0.09	2.3	1.14	28.9	681	1013
QYPHY(U)-80-5kV-3G16S	-	16	0.178	4.521	0.09	2.3	1.19	30.1	759	1129
QYPHY(U)-80-5kV-3G4	4	21.1	0.204	5.182	0.09	2.3	1.26	32.1	897	1335
QYPHY(U)-80-5kV-3G25S	-	25	0.222	5.639	0.09	2.3	1.32	33.4	1001	1489
QYPHY(U)-80-5kV-3G2	2	33.6	0.258	6.553	0.09	2.3	1.42	36.2	1228	1827
QYPHY(U)-80-5kV-3G1	1	42.4	0.289	7.341	0.09	2.3	1.52	38.5	1445	2150
QYPHY(U)-80-5kV-3G1/0	1/0	53.5	0.368	9.347	0.09	2.3	1.75	44.5	2087	3105
QYPHY(U)-80-5kV-3G2/0	2/0	67.4	0.414	10.516	0.09	2.3	1.89	47.9	2520	3749
