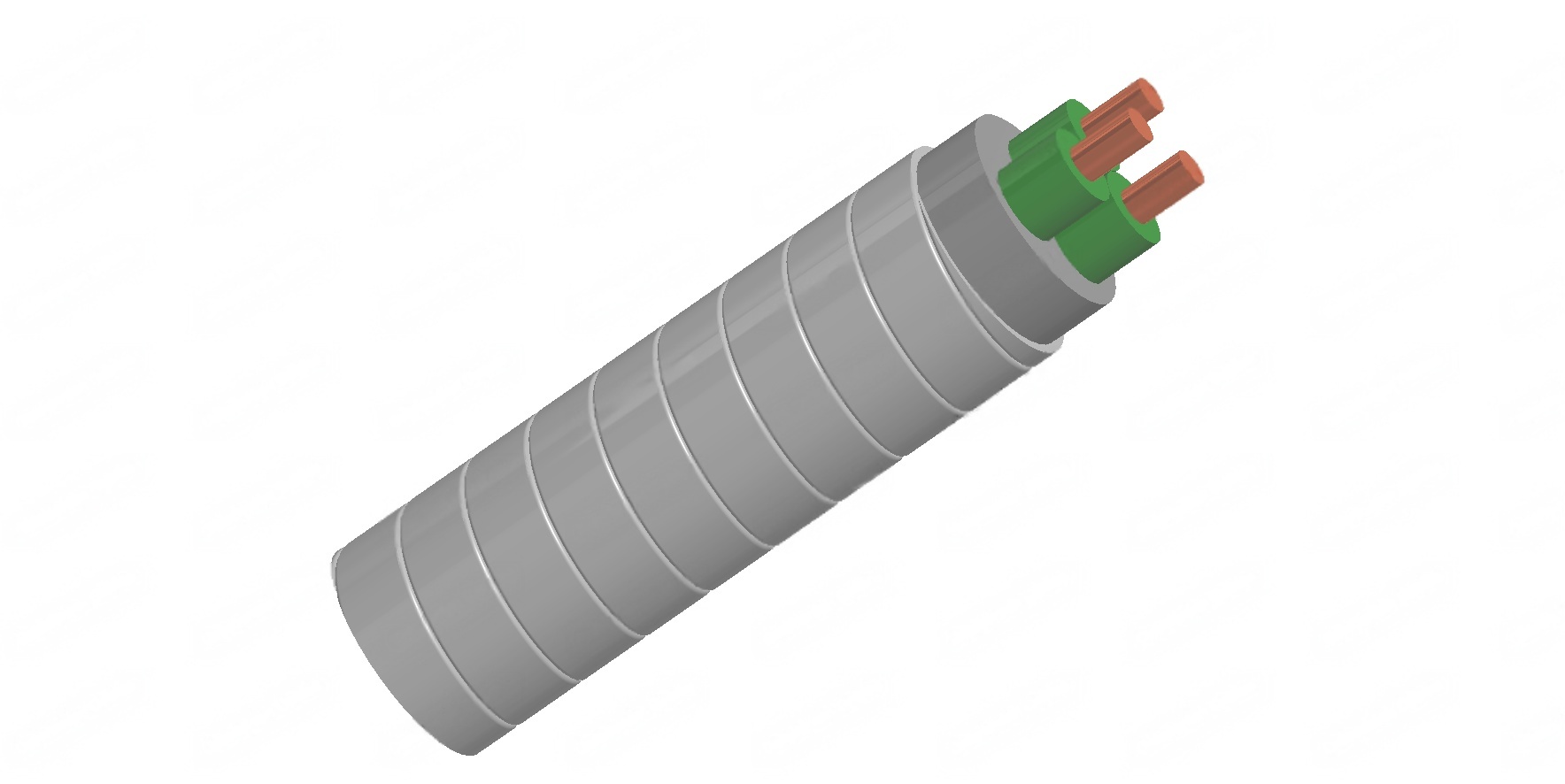

205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Conductor	Solid/stranded copper conductor.
Insulation	Polypropylene insulation.
Jacket	Oil-resistant nitrile rubber.
Armor	Galvanized steel.

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYPNY-96-3kV-3G10S	-	10	0.14	3.556	0.075	1.9	1.03	26.1	724	1077
QYPNY-96-3kV-3G6	6	13.3	0.162	4.115	0.075	1.9	1.09	27.8	832	1238
QYPNY-96-3kV-3G16S	-	16	0.178	4.521	0.075	1.9	1.14	29.0	917	1364
QYPNY-96-3kV-3G4	4	21.1	0.204	5.182	0.075	1.9	1.22	31.0	1066	1587
QYPNY-96-3kV-3G25S	-	25	0.222	5.639	0.075	1.9	1.27	32.3	1178	1752
QYPNY-96-3kV-3G2	2	33.6	0.258	6.553	0.075	1.9	1.38	35.1	1420	2114
QYPNY-96-3kV-3G1	1	42.4	0.289	7.341	0.075	1.9	1.47	37.4	1651	2456
QYPNY-96-3kV-3G1/0	1/0	53.5	0.368	9.347	0.075	1.9	1.71	43.4	2326	3462
QYPNY-96-3kV-3G2/0	2/0	67.4	0.414	10.516	0.075	1.9	1.84	46.8	2779	4135

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYPNY-96-5kV-3G10S	-	10	0.14	3.556	0.09	2.3	1.12	28.5	806	1199
QYPNY-96-5kV-3G6	6	13.3	0.162	4.115	0.09	2.3	1.19	30.2	917	1365
QYPNY-96-5kV-3G16S	-	16	0.178	4.521	0.09	2.3	1.24	31.4	1005	1495
QYPNY-96-5kV-3G4	4	21.1	0.204	5.182	0.09	2.3	1.31	33.4	1158	1724
QYPNY-96-5kV-3G25S	-	25	0.222	5.639	0.09	2.3	1.37	34.7	1272	1894
QYPNY-96-5kV-3G2	2	33.6	0.258	6.553	0.09	2.3	1.47	37.4	1521	2263
QYPNY-96-5kV-3G1	1	42.4	0.289	7.341	0.09	2.3	1.57	39.8	1756	2613
QYPNY-96-5kV-3G1/0	1/0	53.5	0.368	9.347	0.09	2.3	1.80	45.7	2444	3637
QYPNY-96-5kV-3G2/0	2/0	67.4	0.414	10.516	0.09	2.3	1.94	49.2	2903	4321
