250℉/121℃ PP/LEAD Flat Electrical Submersible Pump Cable
Application
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.
Standard
IEEE Std. 1019
API RP 11S5
API RP 11S6

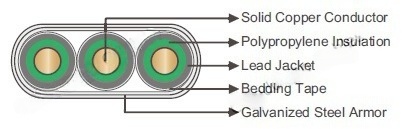

Construction
Conductor | Solid bare copper conductor. |
|---|---|
Insulation | Polypropylene insulation with a metal deactivator and a poly adhesive layer to the conductor. |
Jacket | Lead jacket. |
Tape | Longitudinally applied, rubber backed, fabric bedding tap. |
Armor | Galvanized steel tape. |
Dimension and Weight
5kV
Cable Type | Conductor Size | Conductor O.D. | Insulation Thickness | Overall O.D. | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| AWG | mm^2 | inches | mm | inches | mm | inches | mm | lbs/kft | kg/km |
QYPQ-121-5kV-3G4 | 4 | 21.1 | 0.20 | 5.2 | 0.09 | 2.3 | 1.60 x 0.62 | 40.6 x 15.7 | 1700 | 2529 |
QYPQ-121-5kV-3G2 | 2 | 33.6 | 0.26 | 6.6 | 0.09 | 2.3 | 1.76 x 0.67 | 44.7 x 17.0 | 2100 | 3124 |
QYPQ-121-5kV-3G1 | 1 | 42.4 | 0.29 | 7.4 | 0.09 | 2.3 | 1.85 x 0.70 | 47.0 x 17.8 | 2400 | 3571 |
Other conductor size can be offered upon request.
