25kV DC Screened Silicone Wire
Applications
The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries, television receivers, transformers,high-voltage cables for electronic instruments, etc.
Rated Voltage
25kV

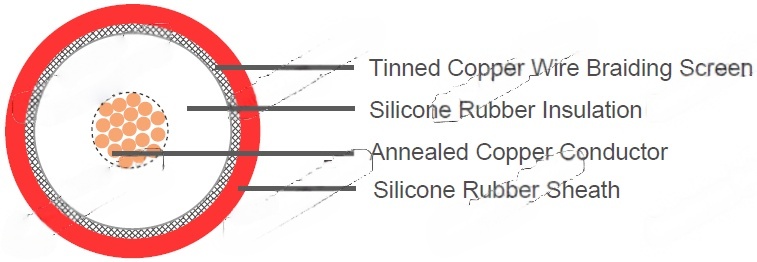

Construction
Conductor : Annealed copper conductor, class 5.
Insulation : Silicone rubber.
Screen : Tinned copper wire braiding.
Sheath : Silicone rubber.
Color Code
Red, (other colours upon request).
Physical Properties
Operating Temperature : -45°C - 180°C
Dimension Data
Part NO. | Conductor | Approx. Overall Diameter | ||
|---|---|---|---|---|
No. of Core × Cross Section | No./Nominal Diameter of Strands | Nominal Diameter | ||
| mm² | No./mm | mm | mm |
1x0.20 | 7/0.20 | 0.6 | 7.1 | |
1x0.35 | 19/0.16 | 0.8 | 7.3 | |
1x0.50 | 16/0.2 | 0.94 | 7.5 | |
1x0.75 | 24/0.2 | 1.2 | 8.3 | |
1x1.0 | 32/0.2 | 1.34 | 8.5 | |
1x1.5 | 30/0.25 | 1.6 | 8.7 | |
1x2.5 | 49/0.25 | 2.1 | 10.0 | |
1x4.0 | 56/0.3 | 2.61 | 11.0 | |
1x6.0 | 84/0.3 | 3.21 | 11.8 | |
Introduction
In the heart of South Africa's bustling energy sector, where the demand for reliable, efficient power clashes with the challenges of load shedding and transitioning to renewables, innovative technologies like high-voltage cables are stepping into the spotlight. Among these, 25kV DC Screened Silicone Wires stand out as a robust solution for high-voltage applications. These cables, also known as High Voltage DC Silicone Rubber Cables, are engineered to handle extreme conditions while ensuring safe and efficient power transmission. With South Africa's economy heavily reliant on mining and emerging renewable energy projects, understanding these cables is crucial for anyone interested in the nation's power infrastructure.
Understanding 25kV DC Screened Silicone Wires: Construction and Basics

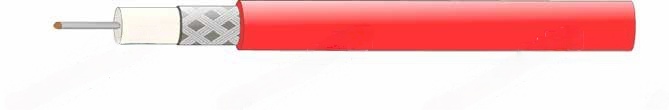

At its core, the 25kV DC Screened Silicone Wire is a single-core cable designed for high-voltage direct current (DC) applications. Rated at 25kV, it's built to withstand significant electrical stress without compromising safety or performance. The construction is meticulously layered to optimise functionality.
The conductor forms the heart of the cable: an annealed copper conductor classified as class 5, meaning it's flexible and stranded for better handling. This is typically composed of multiple strands— for example, in a 1x0.20 mm² variant, it's 7 strands of 0.20 mm diameter, resulting in a nominal diameter of 0.6 mm. Annealing softens the copper, enhancing its conductivity and resistance to fatigue.
Surrounding the conductor is the insulation layer, made from silicone rubber. This material is chosen for its exceptional dielectric properties, providing a barrier against electrical breakdown. Next comes the screen: a braiding of tinned copper wires that shields the cable from electromagnetic interference (EMI), ensuring signal integrity in noisy environments like power systems or industrial machinery.
Finally, the outer sheath is another layer of silicone rubber, often in red (though other colours are available on request). This sheath protects against mechanical damage, moisture, and environmental factors. The overall diameter varies by cross-section, ranging from 7.1 mm for the smallest (1x0.20 mm²) to 11.8 mm for the largest (1x6.0 mm²) in standard configurations.
These dimensions and materials make the cable compact yet durable, ideal for installations where space is at a premium. In South Africa, where power infrastructure often navigates rugged terrains, this design ensures longevity and ease of deployment.
Applications in Power Systems and Beyond
The versatility of 25kV DC Screened Silicone Wires makes them indispensable across various sectors. Primarily, they're suited for high-voltage cabinets, power systems, and high-voltage electric machineries. In television receivers and transformers, they handle the step-up voltages required for operation. Electronic instruments benefit from their screened protection, ensuring precise measurements without interference.
In broader power systems, these cables facilitate efficient DC transmission, which is gaining traction for its lower losses over long distances compared to AC. With the rise of renewable energy, DC cables like these are integral to solar and wind farms, connecting inverters to grids or storage systems.
High Voltage DC Silicone Rubber Cables extend to emerging fields like electric vehicles (EVs), where they link batteries to motors under high stress. In South Africa, as the government pushes for green transport, these cables could play a role in charging infrastructure.
In-Depth Analysis: Role in Modern Energy Challenges
Diving deeper, let's analyse why 25kV DC Screened Silicone Wires are pivotal in addressing global and local energy woes. DC transmission reduces energy losses—up to 30% less than AC in some cases—making it ideal for integrating renewables. Silicone's properties amplify this: its high breakdown voltage (often exceeding 20kV/mm) ensures safe operation at 25kV.
An analysis of cross-linked networks in silicone shows how it maintains DC electrical properties under stress, preventing space charge accumulation that can lead to failures. Compared to rubber or PVC, silicone's elasticity allows for better vibration resistance, crucial in seismic-prone areas or machinery.
In power systems, the screened feature mitigates corona discharge, a common issue in high-voltage lines that causes power loss and noise. This is backed by research on silicone compounds for HV insulators, which emphasise their thermal and electrical insulation.
However, challenges exist: silicone is pricier than alternatives, but lifecycle costs are lower due to durability. In an era of climate change, their environmental footprint—silicone is recyclable and non-toxic—aligns with sustainable goals.
Frequently Asked Questions
What is the rated voltage of 25kV DC Screened Silicone Wires? These cables are rated at 25kV DC, making them suitable for medium to high-voltage applications without excessive bulk.
Why use silicone rubber over other insulations? Silicone offers superior temperature resistance (-45°C to 180°C), flexibility, and electrical insulation, ideal for harsh environments like South African mines.
What are common applications in South Africa? They're used in power systems, mining machinery, and renewable setups, as seen in Cronimet's solar hybrid and Eskom projects.
How does the screening work? Tinned copper braiding shields against EMI, ensuring stable performance in noisy industrial settings.
Are these cables customisable? Yes, colours beyond red are available on request, and dimensions vary from 0.20 mm² to 6.0 mm² cross-sections.
What maintenance do they require? Minimal, thanks to silicone's durability; regular inspections for physical damage suffice.
How do they contribute to sustainability? By enabling efficient renewable integration, they reduce carbon emissions, aligning with South Africa's JET goals.
25kV DC Screened Silicone Wires represent a cornerstone of modern high-voltage technology, blending innovation with practicality. From their robust construction to unparalleled advantages, these High Voltage DC Silicone Rubber Cables are transforming power systems worldwide—and crucially, in South Africa. Through case studies like Eskom's transmission lines and Cronimet's mining hybrid, we see their real impact: fostering reliable, green energy amid challenges.
As South Africa strides towards a renewable future, embracing such technologies will be key. Whether in the depths of a mine or the expanse of a solar farm, these cables ensure power flows safely and efficiently. The energy revolution is here—wired with silicone.
