What Are 300/500V Mica+XLPE Insulated, LSZH Sheathed Power Cables?

The 300/500V Mica+XLPE Insulated, LSZH Sheathed Power Cables are single-core cables engineered to meet the stringent requirements of BS 7211:2012, a British standard that outlines specifications for low-smoke, zero-halogen (LSZH) cables. The designation "300/500V" indicates the cable’s voltage rating, suitable for low-voltage applications with a maximum conductor operating temperature of 90°C. These cables combine Mica (a fire-resistant mineral) and Cross-Linked Polyethylene (XLPE) insulation with a Low Smoke Zero Halogen (LSZH) sheath, ensuring both electrical reliability and enhanced safety in fire-prone environments.

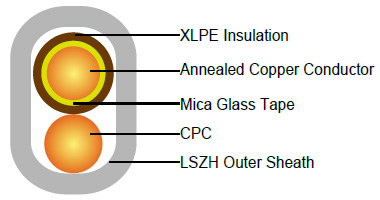

Key Components of the Cable

The construction of these cables is a marvel of material science, tailored to balance electrical performance with safety:

• Conductor: Made from annealed copper, the conductor is solid (Class 1 per BS EN 60228) to ensure low resistance and high conductivity. Copper’s excellent electrical properties make it ideal for efficient power transmission.

• Fire Barrier: A layer of Mica glass tape provides exceptional circuit integrity under fire conditions, allowing the cable to function even during intense heat exposure.

• Insulation: XLPE (Cross-Linked Polyethylene), specifically type GP 8 per BS 7655-1.3, insulates the conductor. XLPE is renowned for its thermal stability and ability to withstand high temperatures (up to 90°C during operation and 250°C during short circuits).

• Circuit Protective Conductor (CPC): An uninsulated copper conductor ensures grounding, enhancing safety by mitigating electrical faults.

• Outer Sheath: The LSZH sheath (type LTS 2 per BS 7655-6.1) minimizes smoke and toxic gas emissions during combustion, making it ideal for enclosed or populated spaces.

• Optional Features: The sheath can be enhanced with UV resistance, hydrocarbon resistance, oil resistance, or anti-rodent/anti-termite properties, catering to diverse environmental challenges.

Why Fire Safety Matters in Cable Design

Fire safety is a critical concern in environments like mass transit systems, hospitals, airports, and petrochemical plants, where these cables are commonly used. Traditional cables with PVC sheaths release dense smoke and toxic halogen gases when burned, posing severe risks to human health and complicating evacuation efforts. In contrast, LSZH sheathed cables emit minimal smoke and no corrosive gases, aligning with standards like IEC 60754-1, IEC 60754-2, and IEC 61034-2.

The Mica fire barrier is a standout feature, enabling the cable to meet rigorous fire performance standards such as IEC 60331-21 and BS 6387 for circuit integrity. This ensures that critical systems, like emergency lighting or fire alarms, remain operational during a fire. Additionally, the cables comply with IEC 60332-1-2 and IEC 60332-3-24 for flame retardance and reduced fire propagation, making them a cornerstone of modern fire-safe electrical systems.

Applications of 300/500V Mica+XLPE Insulated Cables

The versatility of these cables makes them indispensable across various high-stakes environments:

• Power Stations: Reliable power transmission is crucial in power generation facilities, where these cables ensure uninterrupted operation under demanding conditions.

• Mass Transit Systems: Underground Hawkins and underground railways require cables that maintain functionality during emergencies. The fire-resistant and low-smoke properties of these cables are ideal for such settings.

• Hospitals and High-Rise Buildings: In densely populated areas, the LSZH sheath minimizes risks to occupants, while the Mica layer ensures critical systems remain operational during fires.

• Petrochemical Plants and Airports: These cables withstand harsh environmental conditions, including potential exposure to hydrocarbons, when equipped with optional resistant sheaths

The Science Behind the Materials

Mica: The Fire-Resistant Champion

Mica, a naturally occurring silicate mineral, is prized for its ability to withstand temperatures exceeding 1000°C without losing its insulating properties. When layered as a tape around the conductor, it forms a barrier that prevents electrical failure during fires, ensuring circuit integrity for critical systems.

XLPE: The Thermal Powerhouse

Cross-Linked Polyethylene (XLPE) is created by chemically bonding polyethylene molecules, enhancing its thermal and mechanical properties. Unlike standard polyethylene, XLPE resists deformation at high temperatures, making it ideal for applications requiring sustained performance at 90°C or brief exposure to 250°C.

LSZH: The Safety-First Sheath

The LSZH sheath is formulated to emit minimal smoke and no halogenated gases when exposed to fire. This is achieved through the use of halogen-free compounds, which reduce toxicity and visibility issues during combustion, aligning with standards like IEC 60754-1 and IEC 61034-2.

Advantages Over Traditional Cables

Compared to traditional PVC-insulated cables, Mica+XLPE Insulated, LSZH Sheathed Cables offer several advantages:

• Enhanced Fire Safety: The Mica barrier and LSZH sheath ensure functionality and safety in fire scenarios.

• Environmental Benefits: Halogen-free materials reduce environmental impact and health risks.

• Durability: Optional sheath enhancements protect against UV, oil, and pests, extending cable lifespan in harsh environments.

• High Thermal Tolerance: XLPE insulation supports higher operating temperatures than many alternatives.

Conclusion

The 300/500V Mica+XLPE Insulated, LSZH Sheathed Power Cables to BS 7211 represent a pinnacle of cable technology, blending fire resistance, environmental safety, and electrical reliability. Their use of Mica, XLPE, and LSZH materials ensures they meet the rigorous demands of modern infrastructure, from power stations to hospitals. As technology evolves, these cables will continue to play a vital role in powering our world safely and sustainably.
