3KV Silicone Rubber Insulation High Voltage Motor Lead Wire
Product application
Applicable for high temperature environment such as electronics and electrical equipment.

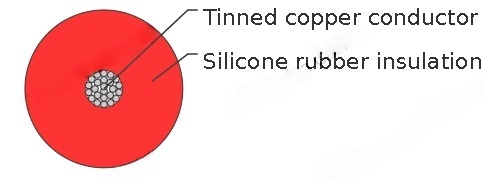

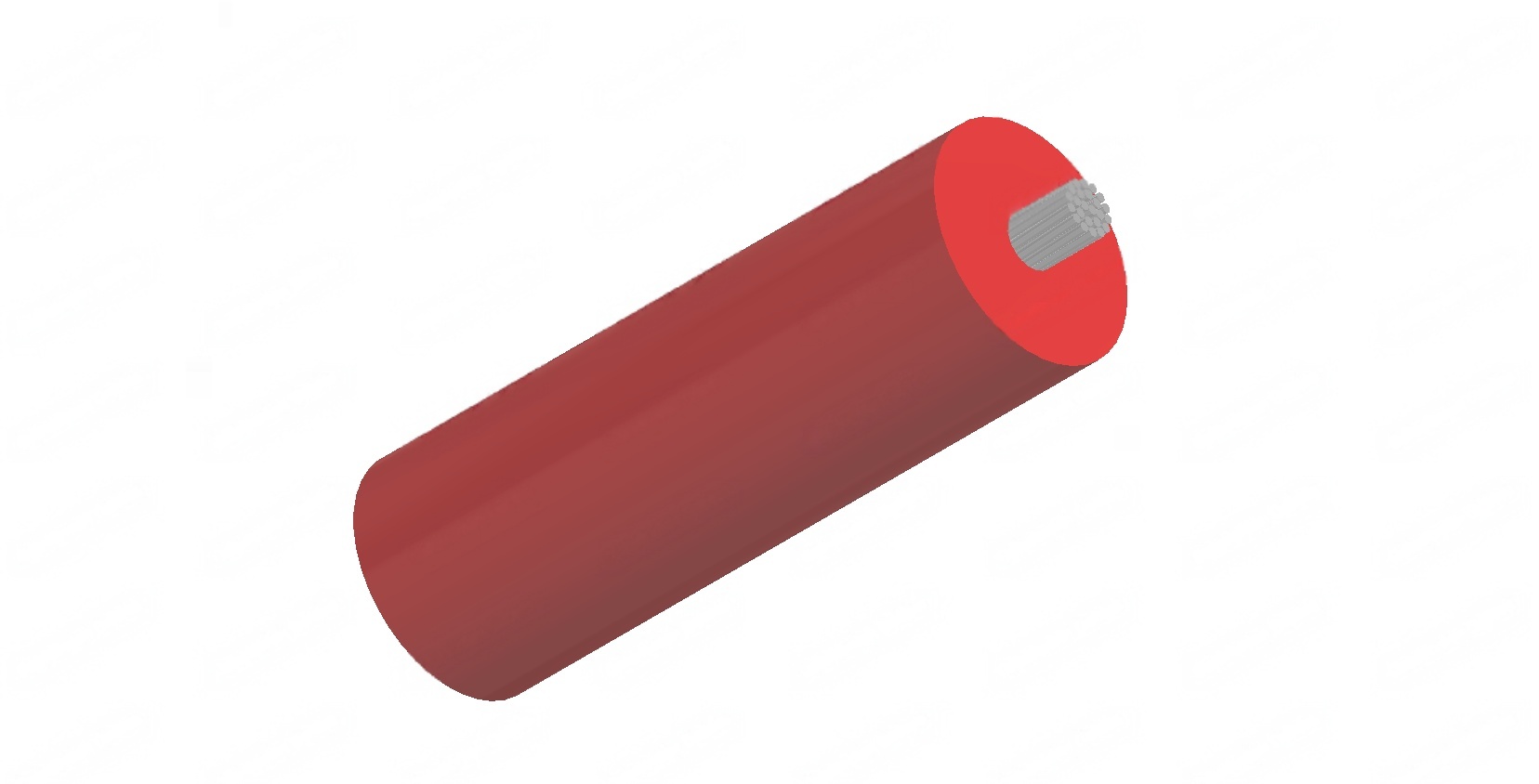

Construction
Conductor: Tinned copper wire
Insulation: silicone rubber
Technical
Working voltage: 3kV
Spark test: AC10KV/ 0.15 S
Vol. test: 9 KV/5 min
Temp range: -60 ℃ ~ +200 ℃
Tensile strength(Before aging): ≥5.0N/mm2
Elongation at break(Before aging): ≥150%
Tensile strength(After aging): ≥4.0N/mm2
Elongation at break(After aging): ≥120%
Product specification
No of Cores | Section | Conductor Structure | Nominal Insulation thickness | Nominal Wire OD |
mm2 | No./mm | mm | mm | |
1 | 0.75 | 24/0.20 | 2.0 | 5.15 |
1 | 1.0 | 32/0.20 | 2.0 | 5.35 |
1 | 1.5 | 30/0.25 | 2.2 | 6.0 |
1 | 2.0 | 41/0.25 | 2.2 | 6.3 |
1 | 2.5 | 49/0.25 | 2.4 | 6.8 |
1 | 4 | 56/0.30 | 2.4 | 7.5 |
1 | 6 | 84/0.30 | 2.6 | 8.5 |
1 | 10 | 84/0.40 | 2.6 | 9.8 |
1 | 16 | 126/0.40 | 2.8 | 11.4 |
1 | 25 | 196/0.40 | 2.8 | 12.9 |
1 | 35 | 276/0.40 | 2.8 | 14.2 |
1 | 50 | 396/0.40 | 3.0 | 16.7 |
1 | 70 | 360/0.50 | 3.0 | 18.4 |
1 | 95 | 475/0.50 | 3.2 | 20.9 |
1 | 120 | 608/0.50 | 3.2 | 22.4 |
1 | 150 | 756/0.50 | 3.5 | 25.0 |
1 | 185 | 925/0.50 | 3.5 | 27.0 |
1 | 240 | 1221/0.50 | 3.5 | 30.0 |
