400℉/204℃ EPDM/EPDM Round Electrical Submersible Pump Cable

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

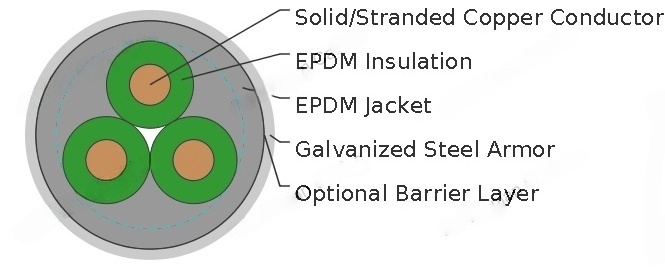

Conductor	Solid/stranded copper conductor.
Insulation	EPDM insulation.
Optional Barrier:	Tape, braid, tape and braid, or extruded barrier, used for fluid protection and hoop strength.
Jacket	EPDM rubber.
Armor	Galvanized steel.

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYEEY-204-3kV-3G10S	-	10	0.14	3.556	0.075	1.9	1.03	26.1	694	1032
QYEEY-204-3kV-3G6	6	13.3	0.162	4.115	0.075	1.9	1.09	27.8	798	1187
QYEEY-204-3kV-3G16S	-	16	0.178	4.521	0.075	1.9	1.14	29.0	880	1309
QYEEY-204-3kV-3G4	4	21.1	0.204	5.182	0.075	1.9	1.22	31.0	1024	1524
QYEEY-204-3kV-3G25S	-	25	0.222	5.639	0.075	1.9	1.27	32.3	1132	1685
QYEEY-204-3kV-3G2	2	33.6	0.258	6.553	0.075	1.9	1.38	35.1	1368	2036
QYEEY-204-3kV-3G1	1	42.4	0.289	7.341	0.075	1.9	1.47	37.4	1593	2370
QYEEY-204-3kV-3G1/0	1/0	53.5	0.368	9.347	0.075	1.9	1.71	43.4	2254	3354
QYEEY-204-3kV-3G2/0	2/0	67.4	0.414	10.516	0.075	1.9	1.84	46.8	2697	4014

Cable Type	Conductor Size		Conductor O.D.		Insulation Thickness		Overall O.D.		Weight
	AWG	mm^2	inches	mm	inches	mm	inches	mm	lbs/kft	kg/km
QYEEY-204-5kV-3G10S	-	10	0.14	3.556	0.09	2.3	1.12	28.5	760	1131
QYEEY-204-5kV-3G6	6	13.3	0.162	4.115	0.09	2.3	1.19	30.2	867	1290
QYEEY-204-5kV-3G16S	-	16	0.178	4.521	0.09	2.3	1.24	31.4	950	1414
QYEEY-204-5kV-3G4	4	21.1	0.204	5.182	0.09	2.3	1.31	33.4	1097	1632
QYEEY-204-5kV-3G25S	-	25	0.222	5.639	0.09	2.3	1.37	34.7	1207	1796
QYEEY-204-5kV-3G2	2	33.6	0.258	6.553	0.09	2.3	1.47	37.4	1446	2152
QYEEY-204-5kV-3G1	1	42.4	0.289	7.341	0.09	2.3	1.57	39.8	1674	2491
QYEEY-204-5kV-3G1/0	1/0	53.5	0.368	9.347	0.09	2.3	1.80	45.7	2342	3485
QYEEY-204-5kV-3G2/0	2/0	67.4	0.414	10.516	0.09	2.3	1.94	49.2	2790	4152
