What Are 450/750V PVC Insulated Power Cables?

The 450/750V PVC insulated, non-sheathed power cables are single-core cables designed to transmit electrical power in environments requiring robust and safe wiring solutions. The designation “450/750V” indicates their voltage rating: 450 volts for phase-to-earth and 750 volts for phase-to-phase in alternating current (AC) systems. These cables are primarily used in fixed installations, such as power stations, mass transit systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

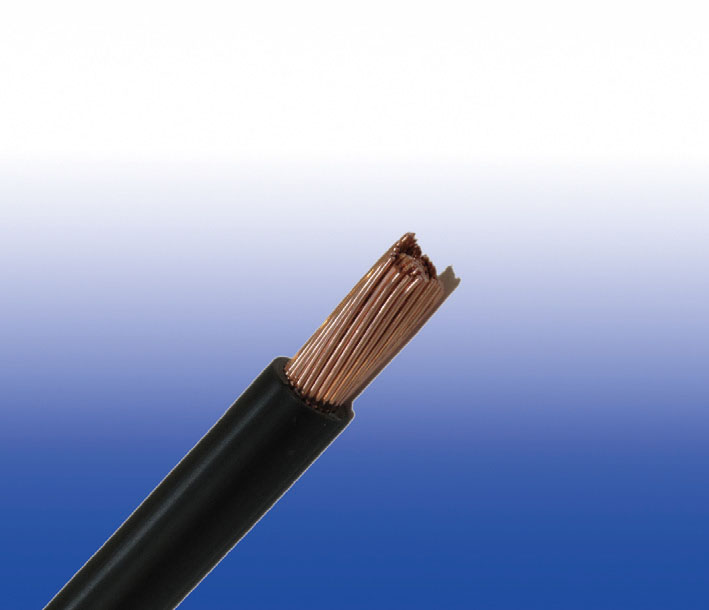

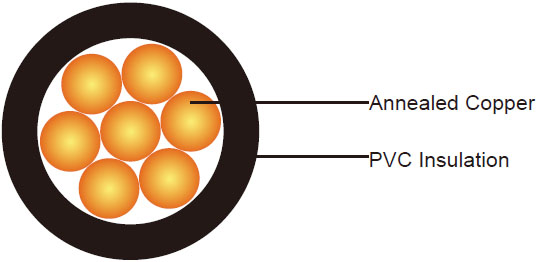

The cables are constructed with a copper conductor and PVC (polyvinyl chloride) insulation, offering a balance of conductivity, durability, and cost-effectiveness. The absence of a sheath makes them suitable for installations where additional protection is provided by conduits, trunking, or other external coverings. Their compliance with BS EN 50525-2-31 (formerly BS 6004:2000) and flame retardance under EN 60332-1-2 ensures they meet stringent safety and performance standards, earning them CE and TUV approvals.

Applications in South Africa’s Mining and Heavy Industry Sectors

South Africa’s mining and heavy industry sectors are critical to the country’s economy, contributing significantly to GDP and employment. The 450/750V PVC insulated power cables play a vital role in these industries due to their reliability, safety, and adaptability.

Case Study 1: Gold Mining in Gauteng

In South Africa’s gold mines, such as those in the Witwatersrand Basin, reliable power distribution is essential for operating heavy machinery, ventilation systems, and lighting in underground environments. A leading gold mining company in Gauteng recently upgraded its electrical infrastructure to comply with modern safety standards. They installed H05V-R Class 2 cables with cross-sectional areas of 16mm² to 95mm² for power distribution to pumps and drilling equipment. The cables’ flame-retardant properties and compliance with EN 60332-1-2 were critical in preventing fire hazards in the confined, dusty conditions of the mines. The flexibility of the stranded conductors allowed for easy installation in tight spaces, while the PVC insulation ensured durability against abrasion and moisture.

Advantages of 450/750V PVC Insulated Power Cables

1. Versatility: Suitable for a wide range of applications, from fixed installations in buildings to dynamic setups in industrial environments.

2. Safety: Flame-retardant properties and compliance with international standards ensure minimal fire risk.

3. Cost-Effectiveness: PVC insulation is affordable yet durable, making these cables a cost-effective choice for large-scale projects.

4. Ease of Installation: Available in solid, stranded, and flexible conductor options, catering to diverse installation requirements.

5. Durability: Resistant to thermal and mechanical stresses, with a maximum operating temperature of 70°C and short-circuit tolerance of 160°C.

Frequently Asked Questions (FAQs)

1. What does the 450/750V rating mean?

The 450/750V rating indicates the cable’s voltage capacity: 450 volts for phase-to-earth and 750 volts for phase-to-phase in AC systems. This makes the cables suitable for medium-voltage applications in industrial and commercial settings.

2. Why choose PVC insulation over other materials?

PVC insulation is cost-effective, durable, and provides excellent electrical insulation. It is also flame-retardant, meeting EN 60332-1-2 standards, making it ideal for environments where fire safety is a priority.

3. What are the differences between H05V-U, H05V-R, and H05V-K cables?

• H05V-U: Solid conductor (Class 1), best for fixed installations.

• H05V-R: Stranded conductor (Class 2), offering moderate flexibility for semi-permanent setups.

• H05V-K: Fine-stranded conductor (Class 5), highly flexible for applications requiring frequent movement or tight bending.

4. Are these cables suitable for outdoor use?

These cables are non-sheathed, meaning they lack an outer protective layer. They are best used in protected environments, such as within conduits or trunking. For outdoor use, additional protection (e.g., conduit or weatherproof covering) is recommended.

5. How do these cables support South Africa’s mining industry?

In South Africa’s mining sector, these cables power critical equipment like pumps, conveyors, and ventilation systems. Their flame-retardant properties and robust construction ensure safety and reliability in harsh underground conditions.

6. What is the significance of the BS EN 50525-2-31 standard?

This standard (formerly BS 6004:2000) specifies the design and performance requirements for low-voltage power cables, ensuring they meet safety, durability, and electrical performance criteria for use in various applications.

7. Can these cables handle high-power loads?

Yes, with cross-sectional areas up to 1000mm², these cables can handle significant current loads (e.g., 1154A for a 1000mm² cable in free air), making them suitable for heavy industrial applications.

8. How do I choose the right conductor size?

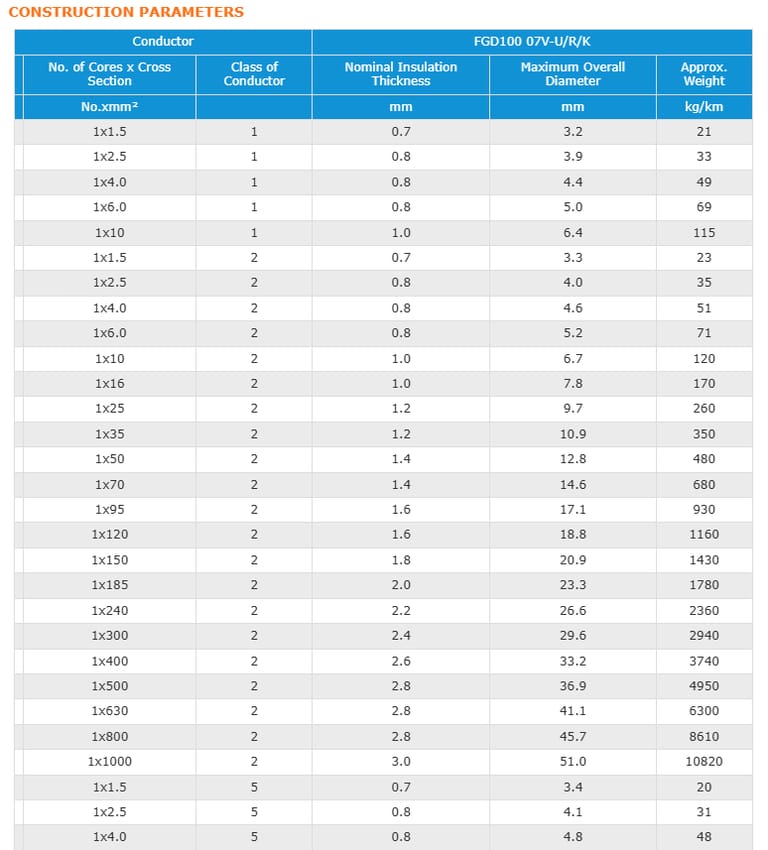

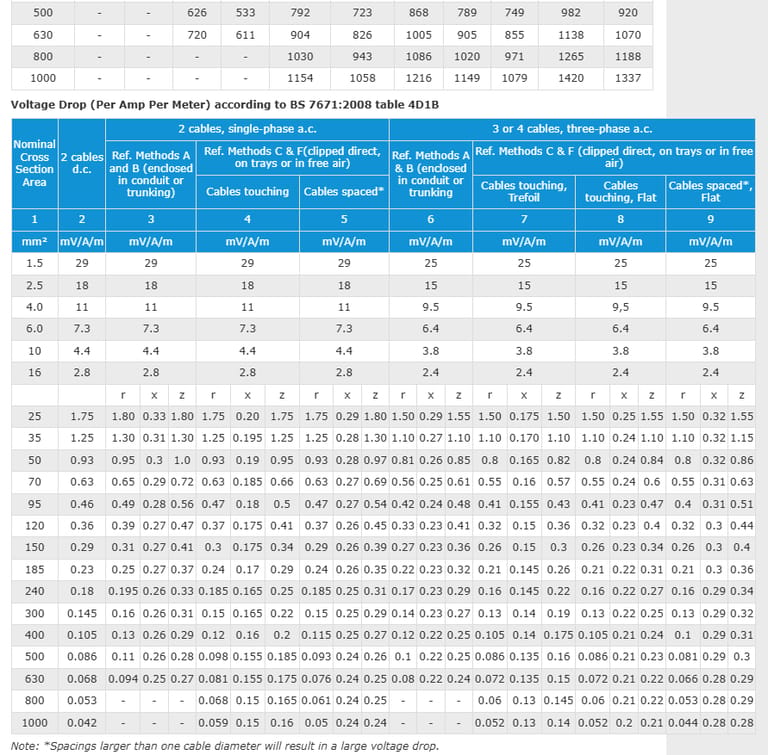

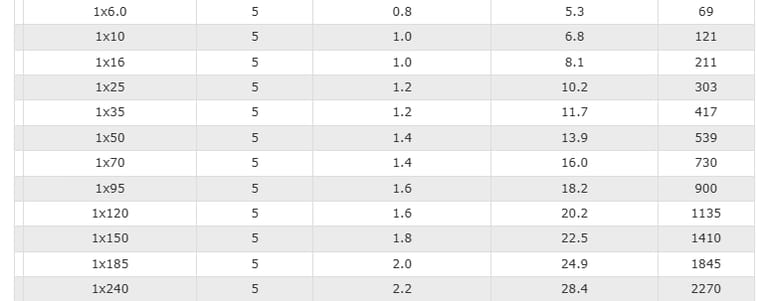

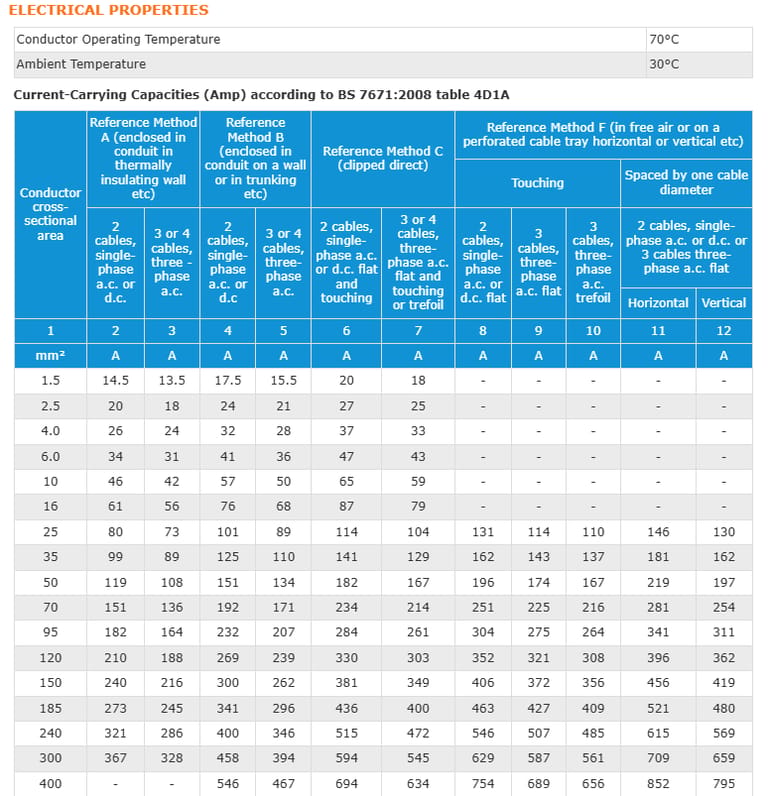

The choice depends on the current load, installation method, and voltage drop requirements. Refer to BS 7671:2008 tables (e.g., 4D1A for current-carrying capacity and 4D1B for voltage drop) to select the appropriate size.

The 450/750V PVC insulated, non-sheathed power cables are a cornerstone of modern electrical infrastructure, offering reliability, safety, and versatility across industries. In South Africa’s mining and heavy industry sectors, these cables play a pivotal role in powering critical operations while addressing challenges like safety, efficiency, and sustainability. Their compliance with international standards, flame-retardant properties, and wide range of conductor sizes make them a preferred choice for engineers and project managers. Whether in the depths of a gold mine or the control room of a platinum processing plant, these cables ensure that power flows safely and efficiently, driving progress in one of the world’s most demanding industrial landscapes.
