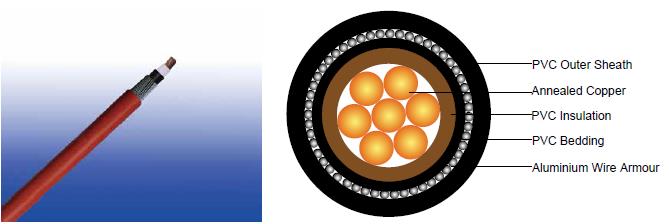

600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to BS 6346 (Single Core)

Introduction

In modern electrical engineering, the selection of appropriate power cables is critical to ensuring safety, reliability, and efficiency in power distribution systems. Among the various options available, 600/1000V PVC insulated, PVC sheathed, armoured power cables designed to British Standard (BS) 6346 (single core) are widely used in South Africa for their robustness and versatility. These cables are integral to power stations, mass transit systems, petrochemical plants, and high-rise buildings, where stringent safety and performance standards are paramount.

Applications in South Africa

Power Stations

In South Africa, where energy demand is high due to industrial growth and urbanisation, these cables are extensively used in power stations. Their high current-carrying capacity and mechanical protection make them ideal for connecting transformers, generators, and switchgear. For instance, the Kusile Power Station, one of South Africa’s largest coal-fired power plants, utilises armoured cables to ensure reliable power distribution within its infrastructure.

Mass Transit Systems

The Gautrain, South Africa’s high-speed rail network, relies on these cables for its underground and elevated sections. The aluminium armouring protects against mechanical stress in tunnels, while the PVC insulation and sheath ensure safety in passenger-heavy environments. The cables’ flame-retardant properties are critical in preventing fire spread in confined spaces.

Petrochemical Plants

South Africa’s petrochemical industry, including facilities like Sasol’s Secunda plant, demands cables that can withstand harsh chemical environments. The optional hydrocarbon and oil-resistant sheaths enhance durability, ensuring uninterrupted power supply in these critical operations.

High-Rise Buildings

In urban centres like Johannesburg and Cape Town, high-rise buildings require reliable power distribution systems. These cables are used in vertical risers and distribution boards, where their fire performance and mechanical strength ensure safety and longevity. The availability of LSPVC options is particularly valuable in densely populated buildings.

South African Case Studies

Case Study 1: Medupi Power Station

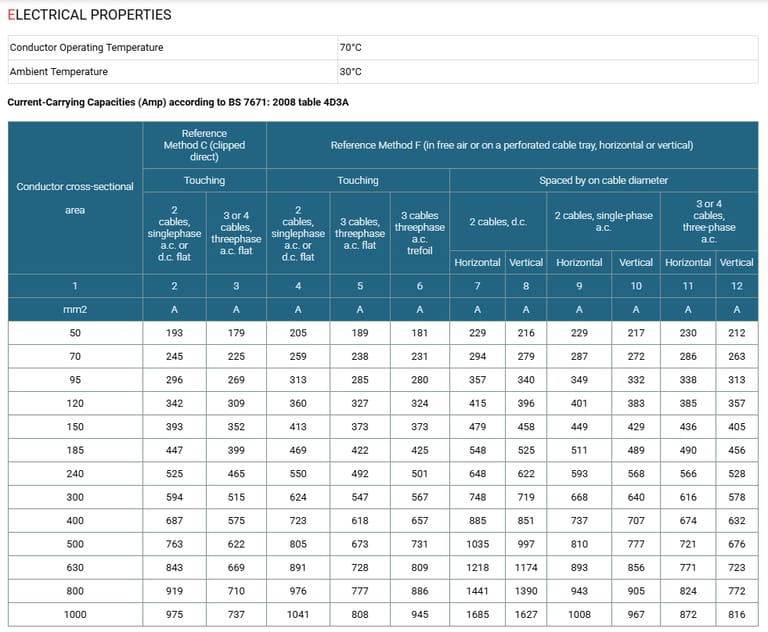

The Medupi Power Station, located in Limpopo, is a flagship project in South Africa’s energy sector. During its construction and commissioning (completed in 2021), 600/1000V PVC insulated, armoured cables were extensively used for internal power distribution. The cables’ ability to handle high currents (up to 975 A for 1000 mm² conductors in clipped direct configurations) ensured efficient power delivery to critical systems. The aluminium armouring protected against mechanical damage during installation in rugged terrain, while UV-resistant sheaths were employed to withstand Limpopo’s intense sunlight. This case highlights the cables’ reliability in large-scale power infrastructure projects.

Case Study 2: Cape Town International Airport Expansion

The 2019-2022 expansion of Cape Town International Airport incorporated these cables for power distribution to new terminals and runways. The cables’ compliance with BS EN 50265-2-1 for flame retardance was crucial in meeting stringent safety regulations for public spaces. The use of 185 mm² and 240 mm² conductors supported high-power lighting and HVAC systems, with current capacities of 447 A and 525 A, respectively, under clipped direct conditions. The project demonstrated the cables’ suitability for high-traffic, safety-critical environments.

Case Study 3: Johannesburg High-Rise Development

A recent high-rise residential development in Sandton, Johannesburg (completed in 2024), utilised these cables for vertical power distribution. The 300 mm² and 400 mm² cables were selected for their high current-carrying capacities (594 A and 687 A, respectively) and ability to navigate tight bending radii in confined riser shafts. The optional anti-rodent properties were incorporated to address pest issues common in urban settings, ensuring long-term reliability. This case underscores the cables’ adaptability to modern urban infrastructure.

Advantages and Limitations

Advantages

1. Versatility: The range of conductor sizes (50 mm² to 1000 mm²) and optional sheath properties make these cables suitable for diverse applications.

2. Safety: Compliance with fire performance standards and the availability of LSPVC options enhance safety in public and industrial settings.

3. Durability: Aluminium armouring and optional resistance to UV, hydrocarbons, and pests ensure longevity in harsh environments.

4. Ease of Installation: The cables’ flexibility and defined bending radii facilitate installation in complex layouts.

Limitations

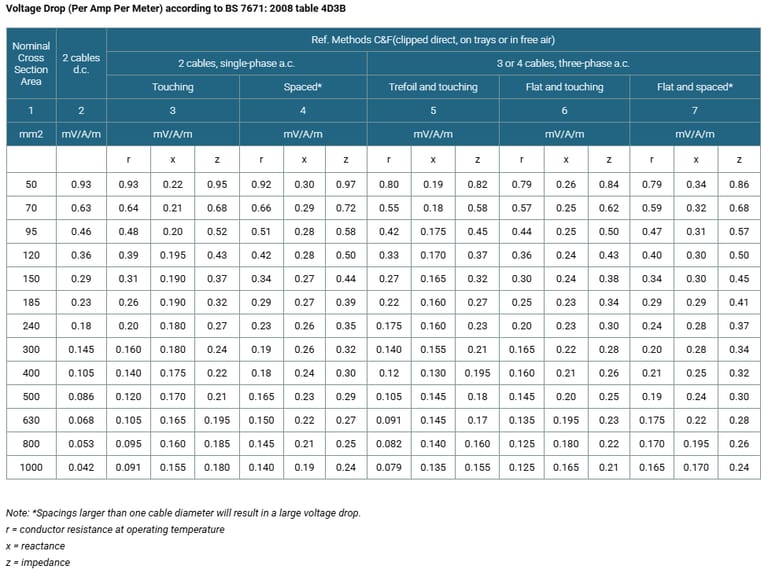

1. Voltage Drop: Larger cable spacings can increase voltage drop, requiring careful design to maintain efficiency.

2. Temperature Constraints: The maximum operating temperature of 70°C may limit use in extreme heat without additional cooling measures.

3. Cost: The inclusion of optional features like UV or hydrocarbon resistance can increase costs, which may be a consideration for budget-constrained projects.

The 600/1000V PVC insulated, PVC sheathed, armoured power cables to BS 6346 (single core) are a cornerstone of South Africa’s power distribution infrastructure. Their robust construction, compliance with stringent standards, and adaptability to diverse environments make them indispensable in power stations, transit systems, petrochemical plants, and high-rise buildings. Recent case studies, such as Medupi Power Station, Cape Town International Airport, and Johannesburg’s high-rise developments, demonstrate their reliability and versatility. While challenges like voltage drop and temperature constraints exist, their advantages far outweigh these limitations, ensuring their continued relevance in South Africa’s evolving energy landscape.
