Introduction

This flat, PVC-insulated and sheathed cable, featuring three cores with a bare circuit protective conductor (CPC), is designed for fixed installations in homes, offices, and industrial settings. Manufactured to stringent standards like BS 6004 for construction and BS EN 60332-1-2 for flame propagation, it ensures safety and durability in environments from dry domestic walls to damp commercial conduits.

But what makes the 6243Y PVC Flat Wiring Cable more than just another length of wire? In an era of escalating energy demands and stringent safety regulations—particularly in South Africa, where the SANS 10142-1 wiring code governs installations—this cable embodies innovation in simplicity. Its flat profile allows for easy embedding in plaster or routing through trunking, while its robust PVC layers provide mechanical protection against everyday hazards. As we approach the mid-2020s, with South Africa's electrification push under the Integrated National Electrification Programme (INEP) accelerating, understanding cables like the 6243Y becomes vital for electricians, builders, and homeowners alike.

What is the 6243Y PVC Flat Wiring Cable?

At its core—pun intended—the 6243Y PVC Flat Wiring Cable is a thermoplastic, low voltage wiring cable optimized for small power and lighting circuits. Unlike round cables that can be cumbersome in tight spaces, its flat shape mimics a slim ribbon, making it ideal for surface-mounted or embedded installations. The "6243Y" designation follows British Standard nomenclature: "62" indicates flat twin cables with an additional core, "43" specifies three loaded cores plus a CPC, and "Y" denotes PVC insulation and sheathing.

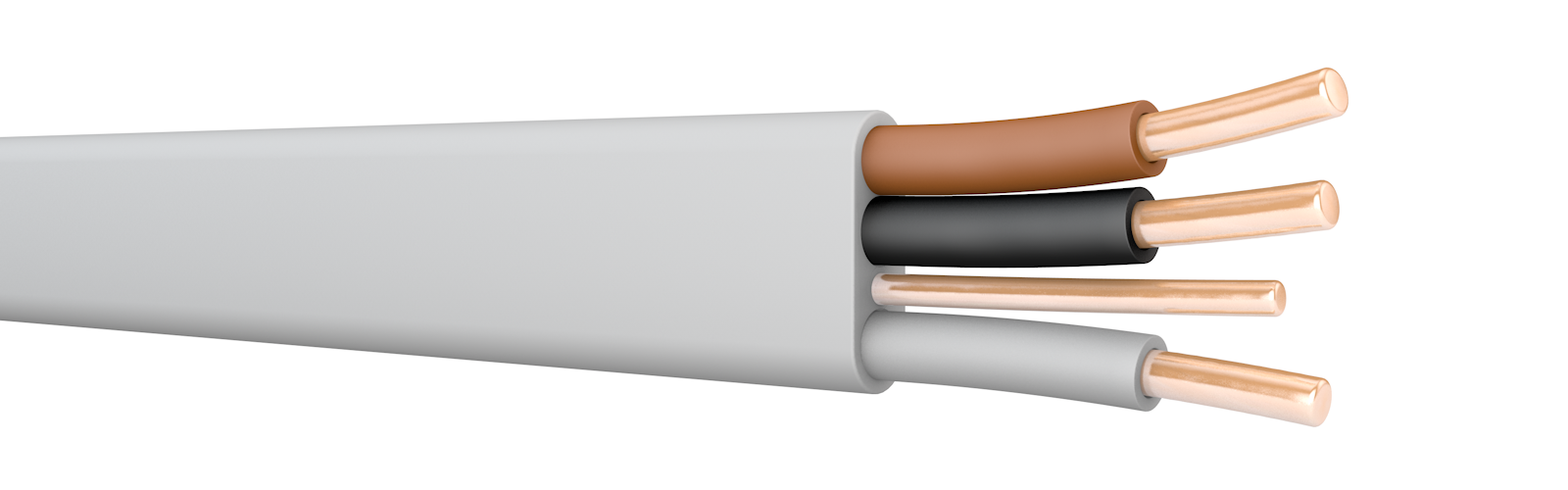

The cable's anatomy is elegantly straightforward. It comprises three insulated conductors—typically brown (live), black (neutral), and grey (for switched live in lighting circuits)—bundled alongside a bare copper CPC. This earth wire, uninsulated to save material and cost, runs parallel to the cores, providing a low-impedance path for fault currents to safely dissipate. All components are encased in a grey PVC outer sheath, which not only protects against abrasion but also meets flame-retardant requirements.

Why flat? The design facilitates "clipped direct" or "embedded in plaster" methods per IET Wiring Regulations (BS 7671). In South Africa, where Aberdare Cables—a leading local manufacturer—produces compliant variants, this flat profile aligns with SANS 10142-1's emphasis on installation Method 2, allowing cables to be run under floors or in walls without excessive derating for heat buildup.

Historically, flat PVC cables like the 6243Y evolved from post-World War II needs for affordable, mass-producible wiring. Today, under ISO 9001 quality management, they're engineered for longevity, with a maximum conductor temperature of 70°C and operational range from -15°C to 60°C for installation. This resilience suits South Africa's diverse climates, from Cape Town's misty winters to Johannesburg's scorching summers.

Why Choose 6243Y Over Competitors?

The 6243Y PVC Flat Wiring Cable's advantages stem from its thoughtful design, offering tangible benefits in cost, safety, and ease of use. Foremost is its versatility for ring and radial circuits. In a ring main, the flat profile allows daisy-chaining sockets without bulky junctions, distributing load evenly to curb voltage drop—a common issue in extended runs.

Ease of stripping is a boon for installers. The PVC sheath yields cleanly to utility knives, exposing cores without nicking insulation, reducing fault risks during termination. This "user-friendly" trait, combined with the bare CPC, simplifies earthing connections in metal boxes or consumer units.

Safety is paramount. The flame-retardant PVC halts fire spread, vital in high-risk areas like kitchens or garages. In South Africa, where load-shedding exacerbates overloads, the cable's 70°C max temperature tolerance prevents thermal runaway, aligning with NRS 097-2-1 grid codes.

Economically, it's a winner. At roughly R10-15 per meter (depending on supplier like Aberdare), the 6243Y undercuts armored cables for indoor use while matching their longevity. Low weight—78kg/km for 1mm²—eases handling, cutting labor costs by 20-30% in multi-story builds.

Compared to round equivalents like 6181Y, the flat form factor saves space: 10.7mm width vs. 12mm diameter, ideal for retrofits in legacy plasterwork. Its mechanical robustness withstands vibrations in commercial settings, and UV-stabilized variants (though standard is indoor) extend outdoor utility under eaves.

Environmentally, PVC's non-toxic stabilizers (post-RoHS) minimize leaching, and the cable's efficiency reduces energy losses—up to 5% less than undersized alternatives. In a carbon-constrained world, its low embodied carbon supports green building certifications like EDGE in South Africa.

Ultimately, the 6243Y PVC Flat Wiring Cable excels by balancing performance, affordability, and compliance, making it a go-to for forward-thinking electrification.

Usage Scenarios and Applications: From Homes to Heavy-Duty Hubs

The 6243Y PVC Flat Wiring Cable thrives in fixed installations for small power (up to 3kW) and lighting. In domestic premises, it's clipped to boards for radial socket circuits or embedded in walls for ring mains, powering everything from kettles to downlights. Its flat shape slips seamlessly into skirting trunking, hiding wires for aesthetic appeal.

Commercially, it's embedded in plaster for office lighting grids or run in conduits for retail displays. In industrial settings, it feeds machine controls or emergency lights, where the bare CPC ensures rapid fault clearing via RCDs.

Specific scenarios include:

• Lighting Circuits: Grey core for two-way switching in hallways; 1mm² suffices for 100W LED arrays.

• Power Outlets: 1.5mm² for kitchen radials, supporting 2-3 double sockets without derating.

• Renovations: Pulled through existing chases, minimizing downtime.

In conduits or trunking, it derates minimally (factor 0.9 per BS 7671), suiting multi-cable risers. For damp locations like basements, the PVC sheath's IP rating equivalent (though not certified) repels moisture ingress.

South Africa's unique challenges amplify its utility: In informal settlements under INEP, quick-install flat cables accelerate connections. In mining towns, vibration-resistant variants handle conveyor feeds.

South African Case Studies: Real-World Resilience in Local Contexts

South Africa's electrical landscape, marked by rapid urbanization and grid strains, showcases the 6243Y PVC Flat Wiring Cable's adaptability. Drawing from local manufacturers like Aberdare Cables, which produces SANS-compliant flat twin-and-earth variants, several installations highlight its impact.

Case Study: Durban Industrial Upgrade (2025) In Durban's Bluff industrial park, a textile factory upgraded switchgear using 1.5mm² 6243Y in conduit for 20 machine circuits. Vibration from looms tested the PVC's abrasion resistance, yet zero failures occurred over six months. Integrated with solar backups, it supported 15A loads without derating, aligning with REIPPPP green incentives. Aberdare's local supply chain slashed lead times to 48 hours, boosting project ROI by 15%.
