6.35/11kV Single Core Screened & PVC Sheathed (Cu Conductor)

Application

These cables are designed to be used for the supply of electrical energy in fixed applications up to the rated voltages at a nominal power frequency between 49Hz and 61Hz., they are suitable for use in distribution installation, electrical power station , they are applied for installation, outdoors, underground where subject to mechanical damage.

Standard

AS/NZS 1429.1

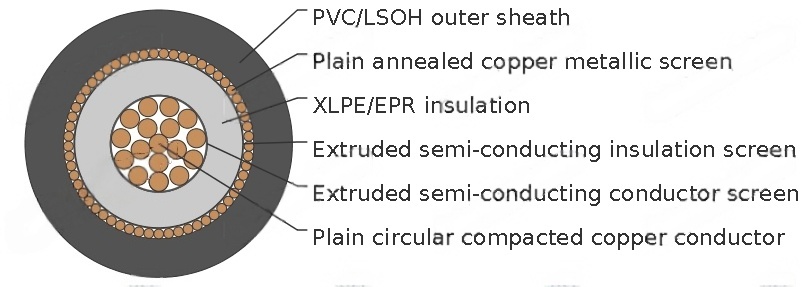

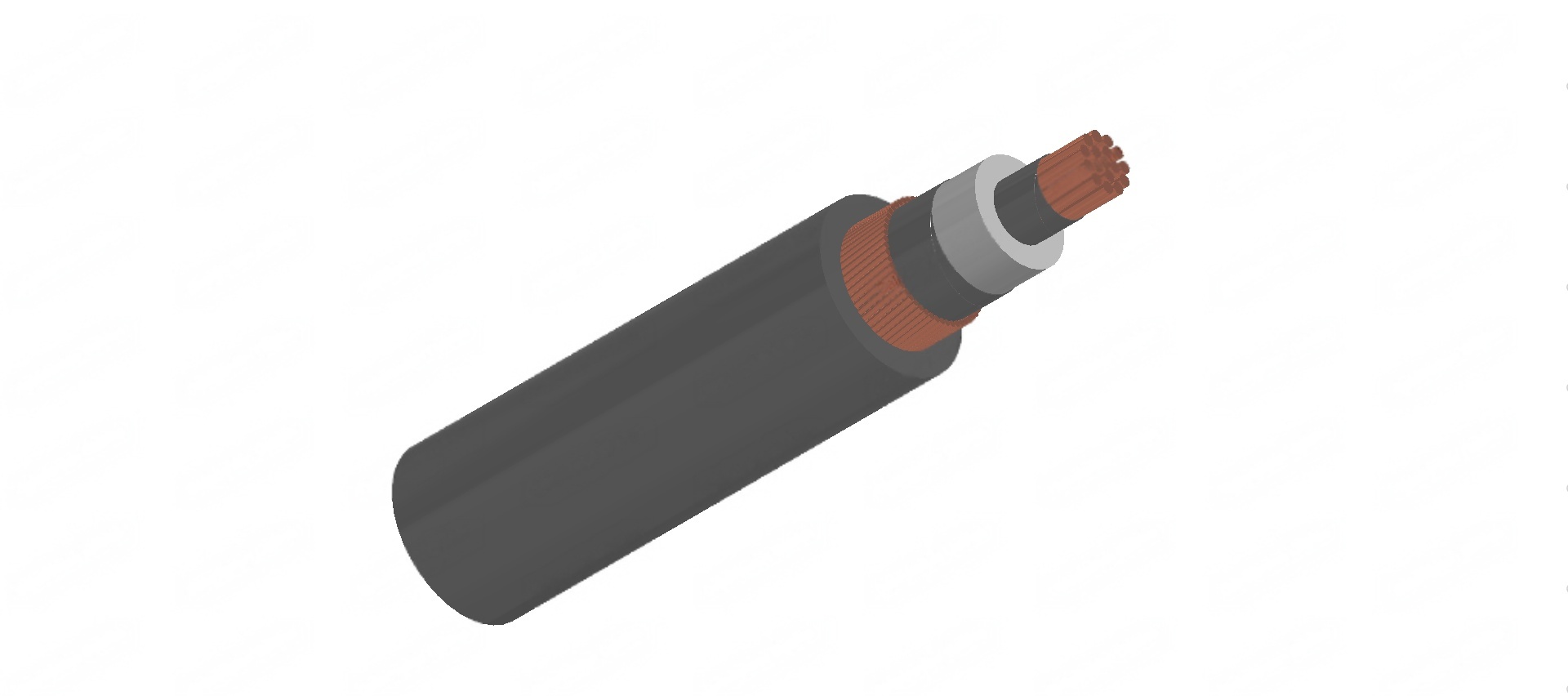

Cable Construction

CONDUCTOR: Plain circular compacted copper to AS/NZS1125 Maximum Continuous Operating Temperature: 90°C
CONDUCTOR SCREEN: Extruded semi-conducting compound, bonded to the insulation and applied in the same operation as the insulation
INSULATION: Cross Linked Polyethylene (XLPE) – standard Ethylene Propylene Rubber (EPR) – alternative
INSULATION SCREEN: Extruded semi-conducting compound
METALLIC SCREEN: Plain annealed copper wire: 3kA for nominal 1 second(LIGHT DUTY) Plain annealed copper wire: 10kA for nominal 1 second(HEAVY DUTY)
SHEATH: Black 5V-90 polyvinyl chloride (PVC) – standard
Orange 5V-90 PVC inner plus black high density polyethylene (HDPE) outer – alternative Low smoke zero halogen (LSOH) – alternative

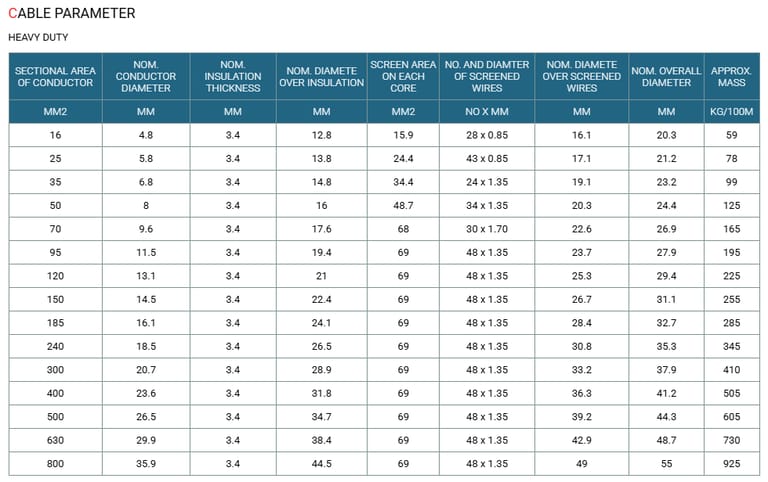

Technical Characteristics

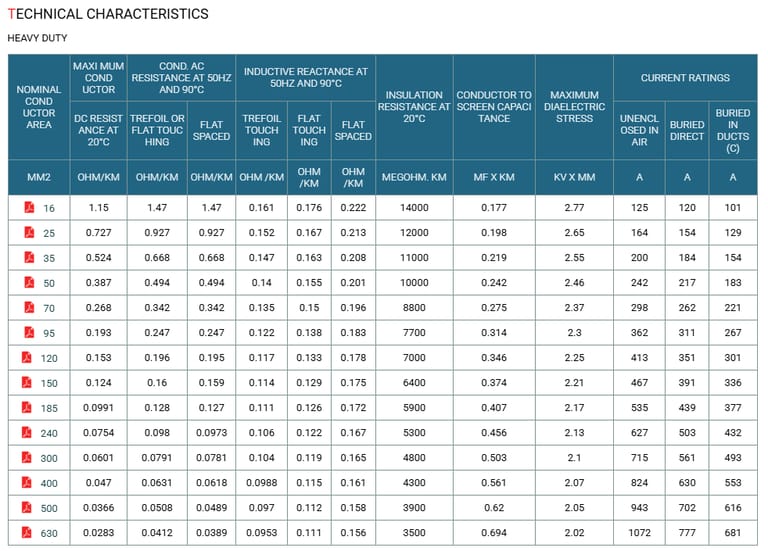

LIGHT DUTY

NOMINAL COND UCTOR AREA	MAXIMUM COND UCTOR	COND. AC RESISTANCE AT 50HZ AND 90°C		INDUCTIVEREACTANCE AT 50HZ AND 90°C			INSUL ATION RESIST ANCE AT 20°C	CONDUCTOR TO SCREEN CAPACI TANCE	MAXIMUM DIAELECTRIC STRESS	CURRENTRATINGS
NOMINAL COND UCTOR AREA	DC RESISTANCE AT 20°C	TREFOIL OR FLAT TOUC HING	FLAT SPACED	TREFOIL TOUC HING	FLAT TOUC HING	FLAT SPACED	INSUL ATION RESIST ANCE AT 20°C	CONDUCTOR TO SCREEN CAPACI TANCE	MAXIMUM DIAELECTRIC STRESS	UNENC LOSED? IN AIR	BURIED DIRECT	BURIED IN DUCTS (C)
MM2	OHM/KM	OHM/KM	OHM/KM	OHM/KM	OHM/KM	OHM/KM	MEG OHM. KM	ΜF X KM	KV X MM	A	A	A
16	1.15	1.47	1.47	0.161	0.176	0.222	14000	0.177	2.77	125	120	101
25	0.727	0.927	0.927	0.152	0.167	0.213	12000	0.198	2.65	163	154	129
35	0.524	0.668	0.668	0.147	0.163	0.208	11000	0.219	2.55	197	183	153
50	0.387	0.494	0.494	0.14	0.155	0.201	10000	0.242	2.46	237	216	181
70	0.268	0.342	0.342	0.135	0.15	0.196	8800	0.275	2.37	294	263	221
95	0.193	0.247	0.247	0.122	0.138	0.183	7700	0.314	2.3	359	313	264
120	0.153	0.196	0.195	0.117	0.133	0.178	7000	0.346	2.25	413	355	305
150	0.124	0.16	0.159	0.114	0.129	0.175	6400	0.374	2.21	470	397	341
185	0.0991	0.128	0.127	0.111	0.126	0.172	5900	0.407	2.17	539	447	384
240	0.0754	0.098	0.0973	0.106	0.122	0.167	5300	0.456	2.13	637	516	443
300	0.0601	0.0791	0.0781	0.104	0.119	0.165	4800	0.503	2.1	730	579	509
400	0.047	0.0631	0.0618	0.0988	0.115	0.161	4300	0.561	2.07	848	655	575
500	0.0366	0.0508	0.0489	0.097	0.112	0.158	3900	0.62	2.05	978	737	647
630	0.0283	0.0412	0.0389	0.0953	0.111	0.156	3500	0.694	2.02	1122	823	722
