6381B
Application and Description
These cables are suitable for D.C. power supplies on telecom equipment and power applications where flexibility is required. The cables produce no corrosive gases when burnt which is important where electronic equipment is installed.
Cable Construction

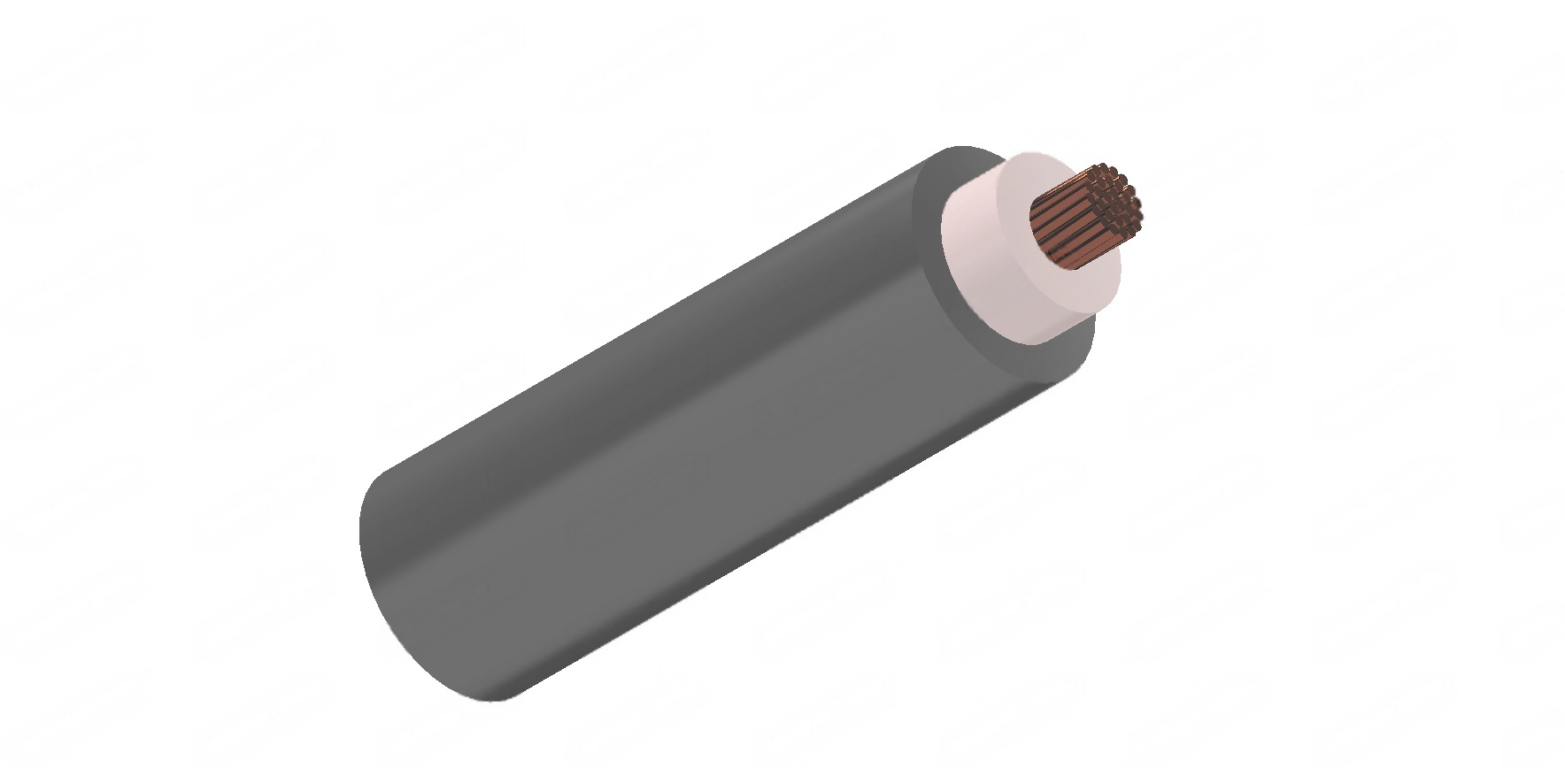

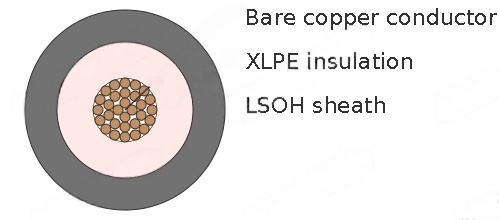

- Bare copper conductor
- Stranding to BS6360 CL-5 or IEC60228 CL-5
- XLPE(Cross-Linked Polyethylene) GP8 insulation
- LSOH(Low Smoke Zero Halogen) LTS4 sheath
Sheath/Core Identification
Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
Technical Characteristics
- Working voltage: 600/1000V
- Minimum bending radius: up to 50 mm^2 : 3xoverall diameter,
70mm^2 and above: - 4xoverall diameter- Operating temperature: 0o C to +90o C
- Insulation resistance: 10 MΩxkm
- Flame retardant: IEC 60332.1, BS4066 Part 1
Cable Parameter
AWG | No. of Cores x | Nominal | Nominal | Nominal | Nominal |
16(30/30) | 0.9 | 0.8 | 5.2 | 42 | |
14(50/30) | 0.9 | 0.8 | 5.7 | 54 | |
12(56/28) | 1 | 0.9 | 6.6 | 77 | |
10(84/28) | 1.1 | 0.9 | 7.3 | 102 | |
8(80/26) | 1.2 | 1 | 8.6 | 160 | |
6(128/26) | 1.2 | 1 | 9.6 | 210 | |
4(200/26) | 1.4 | 1.1 | 11.5 | 320 | |
2(280/26) | 1.4 | 1.1 | 12.8 | 420 | |
1(400/26) | 1.4 | 1.4 | 14.9 | 590 | |
2/0(356/24) | 1.4 | 1.4 | 17.2 | 810 | |
3/0(485/24) | 1.6 | 1.5 | 18.6 | 1020 | |
4/0(614/24) | 1.6 | 1.8 | 20.8 | 1285 | |
300MCM (765/24) | 1.8 | 1.8 | 23.1 | 1610 | |
350MCM (944/24) | 2 | 1.8 | 25.3 | 1940 | |
500MCM(1225/24) | 2.2 | 1.8 | 27.8 | 2480 | |
-(1525/24) | 2.4 | 2 | 31.2 | 3050 | |
-(2013/24) | 2.6 | 2.1 | 35.3 | 4035 | |
-(1769/23) | 2.8 | 2.2 | 38.8 | 4970 | |
-(2257/23) | 2.8 | 2.4 | 43.8 | 6510 |
