6381Y
Application and Description
These cables are designed for DC power supplies on Telecom equipment and power applications where flexibility is required.

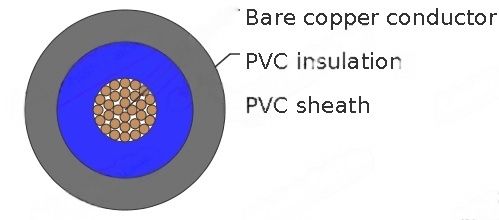

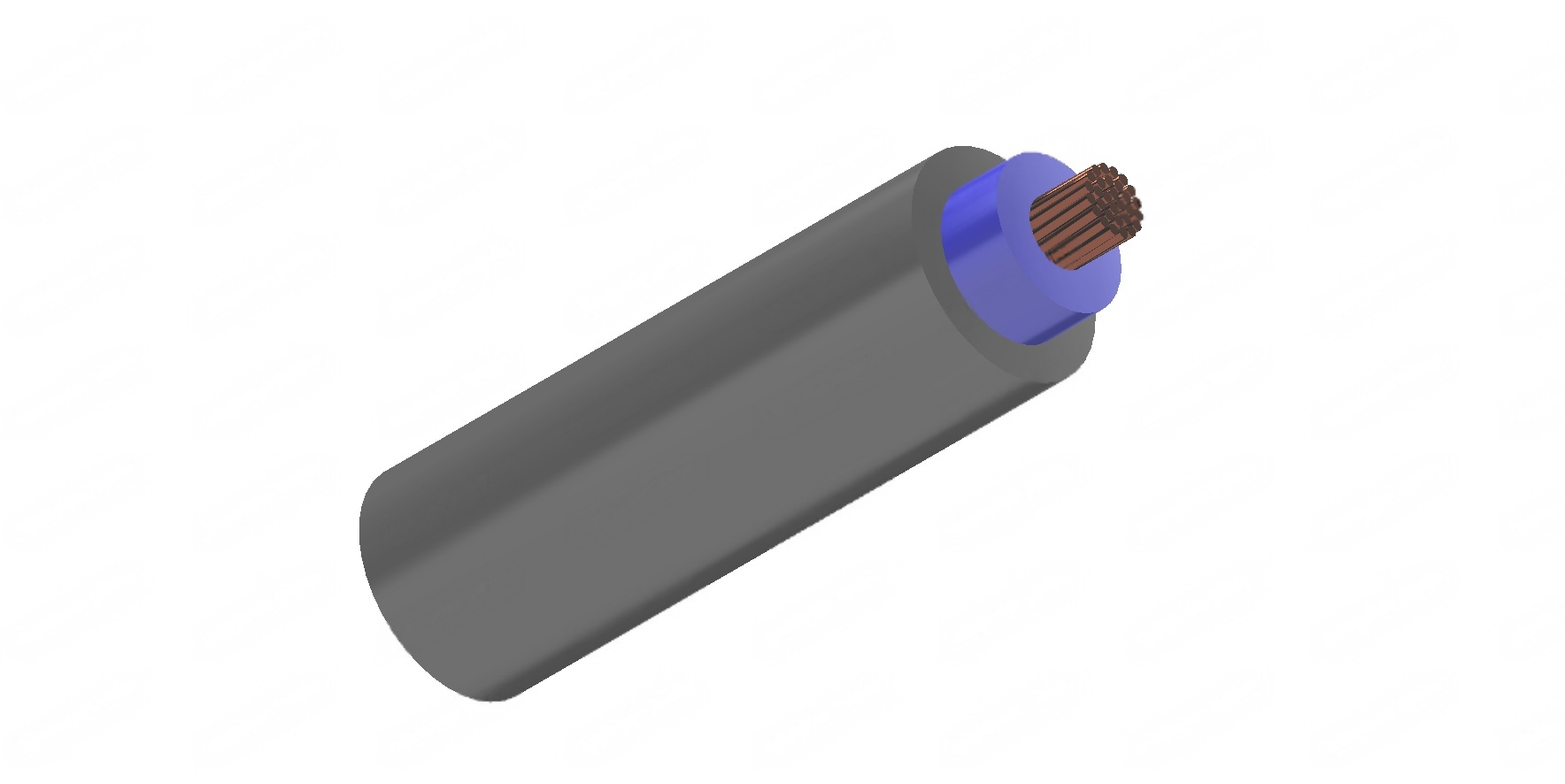

Cable Construction
- Bare copper conductor
- Stranding to BS6360 CL-5 or IEC60228 CL-5
- PVC insulation Type TI1 to BS7655
- PVC sheath Type TM1 to BS7655
oxygen index> 30%
Meets requirements for flammability as required by BT specification M231
Sheath/Core Identification
Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
Technical Characteristics
- Working voltage: 1.0mm^2 to 35mm^2 - 450/750V
50mm^2 and above - 600/1000V- Minimum bending radius: up to 50 mm^2 : 3xoverall diameter,
70mm^2 and above: - 4xoverall diameter- Operating temperature: -15o C to +70o C
- Insulation resistance: 10 MΩxkm
- Flame retardant: IEC 60332.1, BS4066 Part 1
Cable Parameter
AWG | No. of Cores x | Nominal | Nominal | Nominal | Nominal |
16(30/30) | 0.9 | 0.8 | 4.9 | 36 | |
14(50/30) | 0.9 | 0.8 | 5.4 | 52 | |
12(56/28) | 1 | 0.9 | 6.3 | 76 | |
10(84/28) | 1.1 | 0.9 | 7.6 | 100 | |
8(80/26) | 1.2 | 1 | 8.6 | 160 | |
6(128/26) | 1.2 | 1 | 9.8 | 230 | |
4(200/26) | 1.4 | 1.1 | 11.5 | 340 | |
2(280/26) | 1.4 | 1.1 | 12.5 | 440 | |
1(400/26) | 1.4 | 1.4 | 15.1 | 541 | |
2/0(356/24) | 1.4 | 1.4 | 17.0 | 749 | |
3/0(485/24) | 1.6 | 1.5 | 19.1 | 1000 | |
4/0(614/24) | 1.6 | 1.8 | 21.6 | 1241 | |
300MCM (765/24) | 1.8 | 1.8 | 23.4 | 1523 | |
350MCM (944/24) | 2 | 1.8 | 25.5 | 1942 | |
500MCM(1225/24) | 2.2 | 1.8 | 28.5 | 2514 | |
-(1525/24) | 2.4 | 2 | 31.2 | 3125 | |
-(2013/24) | 2.6 | 2.1 | 35.3 | 3967 | |
-(1769/23) | 2.8 | 2.2 | 38.8 | 5063 | |
-(2257/23) | 2.8 | 2.4 | 43.8 | 6491 |
