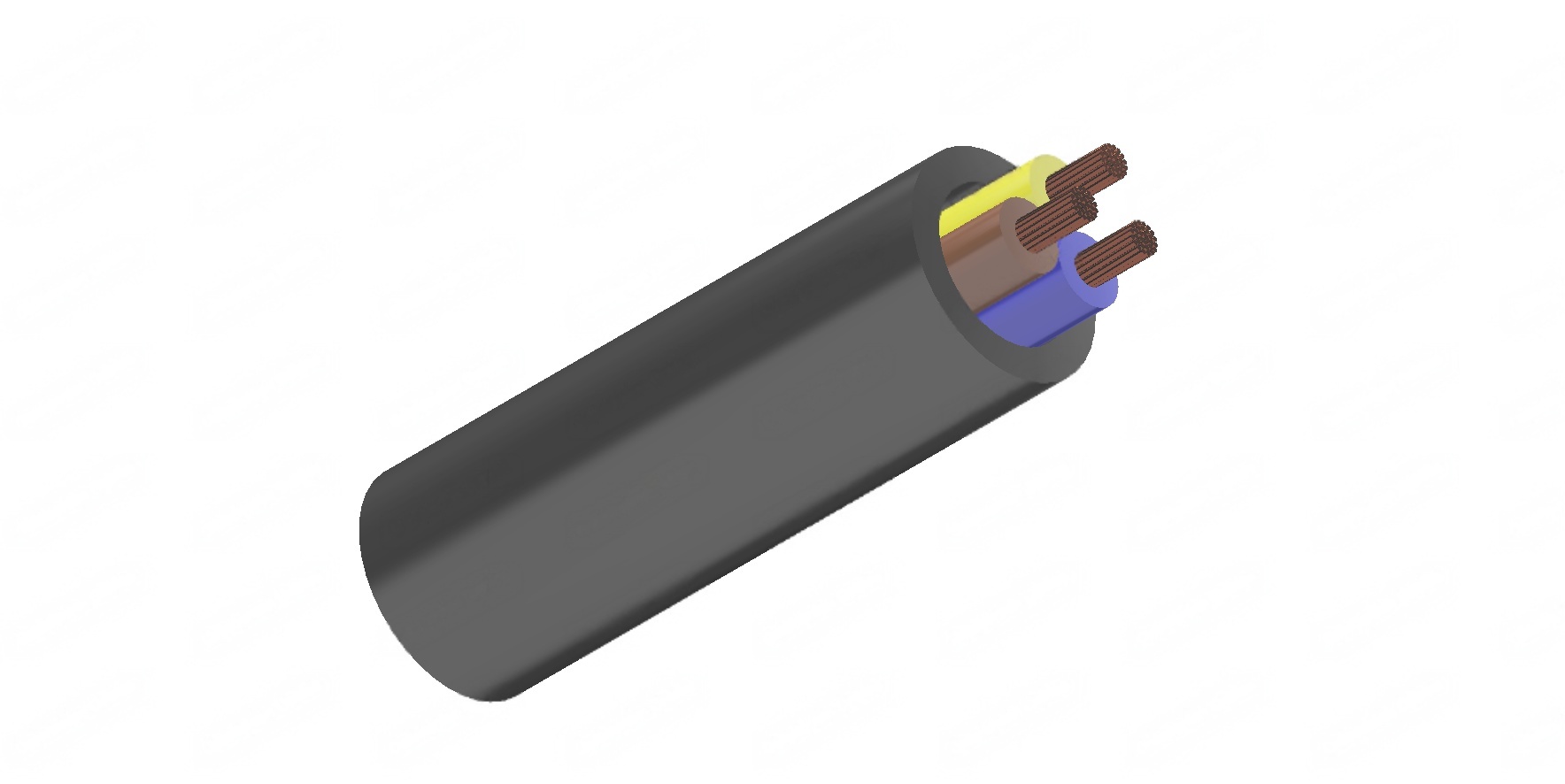

638TQ to BS 7919

Application and Description

These cables are can be used either in dry, humid or wet places, in contact with oil or grease, in weather conditions and under medium mechanical stress. They are suitable for power supply to equipment in industrial plants, large size boilers, heating plates, portable lamps, electrical tools such as drilling machines, disk saws, portable engines and machines, building and farming equipments etc. These cables are also suitable for stationary equipments designed for wind-tower application. The particular cable construction and the special sheath materials have improved the cable torsion resistance (max150°/m), which is a key requirement for drop cables in wind-generators. The cables are also suitable on plaster in temporary buildings and builders huts, and wiring in machinery elevators. 638TQ is equivalent to harmonized code H07BN4-F.

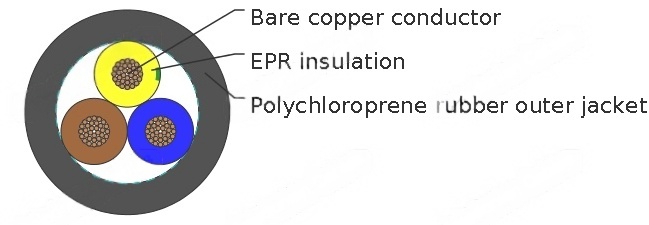

Cable Construction

• - Fine bare copper strands

• - Stranding to BS 6360 CL-5 or IEC 60228 CL-5

• - EPR(Ethylene Propylene Rubber) rubber EI7 insulation

• - CSP(Chlorosulphonated Polyethylene) outer jacket EM7

Core Identification

• 1 core: Black

• 2 Cores: Brown, Blue

• 3 Cores: Brown, Blue and Green/Yellow

• 4 Cores: Brown, Grey, Black and Green/Yellow

• 5 Cores: Brown, Blue, Grey, Black and Green/Yellow

• 6 cores and above: white insulation with black numerals

Technical Characteristics

• - Working voltage: 450/750 volts

• - Test voltage: 2500 volts

• - Flexing bending radius: 6xOverall diameter

• - Fixed bending radius: 4xOverall diameter

• - Temperature range: -25o C to +90o C

• - Maximum short circuit temperature: +250o C

• - Flame retardant: IEC 60332.1

• - Insulation resistance: 20 MΩxkm
