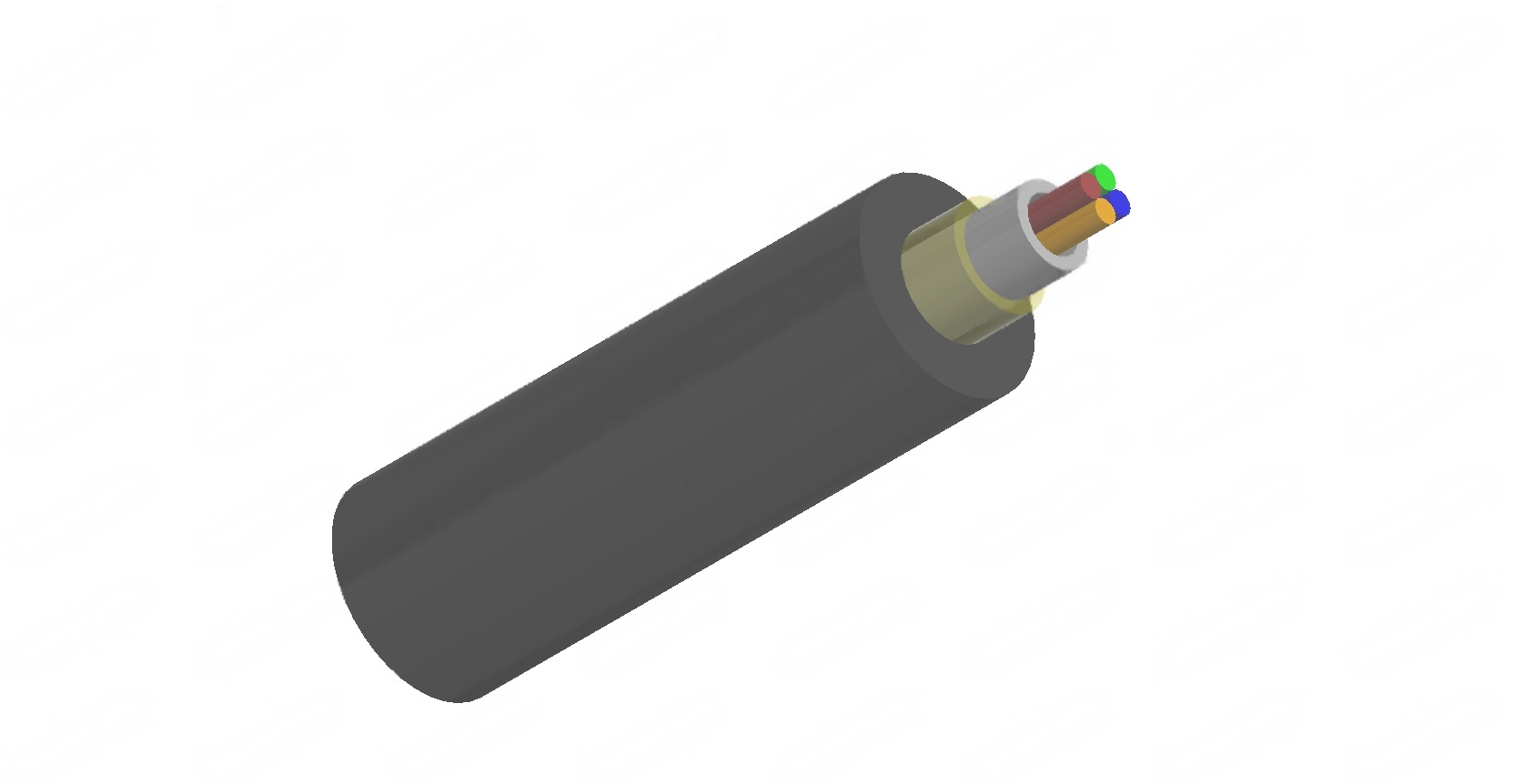

A-DQ(ZN)B2Y Fibre Optic Cables
Application
These cables are easy to mount and rodent-protected, suitable for underground, tubes and channel areas, where normal tensile stresses and/or transverse compressions occur and rodent infestation is to be expected.
Standards
DIN VDE 0888
IEC 60794

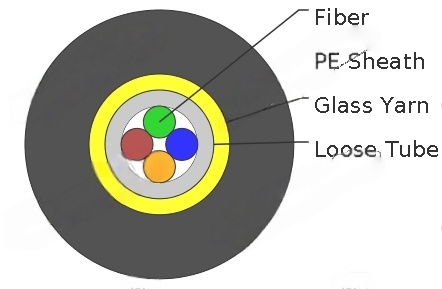

Construction
Fibre Type | ?Loose Tube. |
Strain Relief | Glass yarns. |
Armour | Glass yarns. |
Sheath | PE. |
Technical Data
Operating Temperatures | -20℃~+60℃ |
Minimum Bending Radius | 150mm |
Corrosive Gases | EN 50267-2 |
UV Resistant | Yes |
Longitudinally Water-tight | Yes |
Dimensions and Weight
CONSTRUCTION | FIBRE TYPE | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|
NO. OF FIBRES | - | MM | KG/KM |
2~12 | Multimode G50/125 | 7.5 | 40 |
2~12 | Multimode G62.5/125 | 7.5 | 40 |
2~12 | Single-Mode E9/125 | 7.5 | 40 |
24 | Multimode G50/125 | 8.5 | 60 |
24 | Multimode G62.5/125 | 8.5 | 60 |
24 | Single-Mode E9/125 | 8.5 | 60 |
