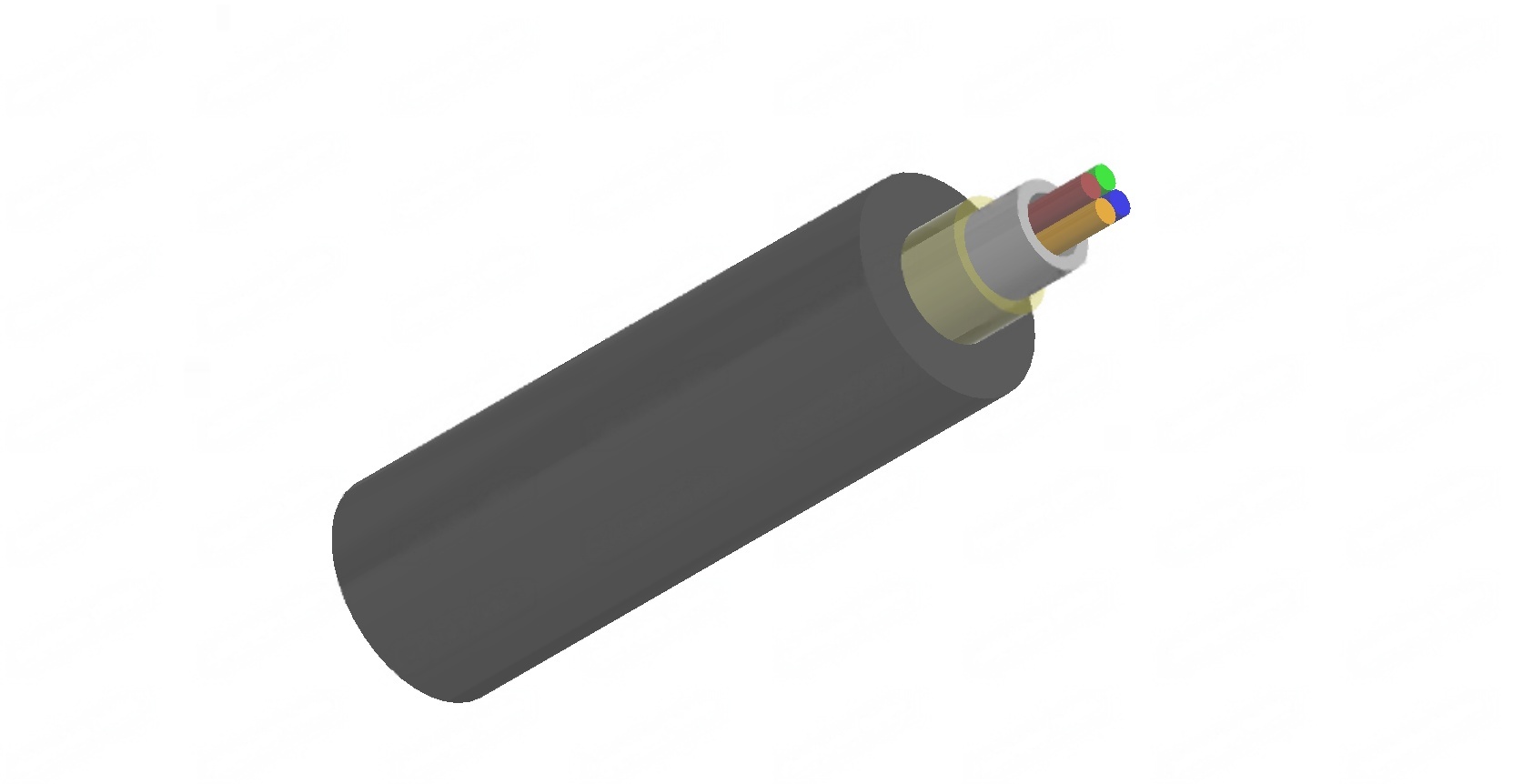

A-DQ(ZN)BH/I-DQ(ZN)BH Fibre Optic Cables

Name: A-DQ(ZN)BH/I-DQ(ZN)BH Fibre Optic Cables
Price: NaN
Availability: InStock

Application

These cables are used either as central bundle core cable or as stranded versions, suitable for indoor and outdoor cabling of buildings and facilities.

Standards

DIN VDE 0888
EN 187000
IEC 60794
ISO 11801
EN 50173-1

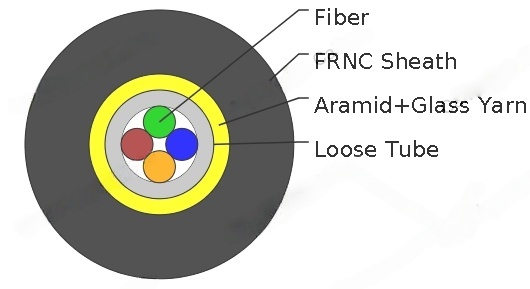

Construction

Fibre Type	?Loose Tube.
Strain Relief	Aramid.
Armour	Glass yarns.
Sheath	FRNC.

Technical Data

Operating Temperatures	-20℃~+60℃
Minimum Bending Radius	150mm
Flame Retardant	IEC 60332-1/IEC 60332-3
Halogen Free	IEC 60754
Corrosive Gases	EN 50267-2/ IEC 60754
Smoke Density	IEC 61034
UV Resistant	Yes
Longitudinally Water-tight	Yes

Dimensions and Weight

A-DQ(ZN)BH, Central bundle

CONSTRUCTION	FIBRE TYPE	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF FIBRES	-	MM	KG/KM
4~12	Multimode G50/125	10.0	125
4~12	Multimode G62.5/125	10.0	125
4~12	Single-Mode E9/125	10.0	125
16~24	Multimode G50/125	10.0	145
16~24	Multimode G62.5/125	10.0	145
16~24	Single-Mode E9/125	10.0	145

A-DQ(ZN)BH, Stranded

CONSTRUCTION	FIBRE TYPE	NO. OF FIBRES PER? CORE	NOMINAL OVERALL? DIAMETER	NOMINAL WEIGHT
NO. OF FIBRES	-	-	MM	KG/KM
6~36	Multimode G50/125	6	13	160
6~36	Multimode G62.5/125	6	13	160
6~36	Single-Mode E9/125	6	13	160
8~48	Multimode G50/125	8	13	160
8~48	Multimode G62.5/125	8	13	160
8~48	Single-Mode E9/125	8	13	160
12~72	Multimode G50/125	12	13	160
12~72	Multimode G62.5/125	12	13	160
12~72	Single-Mode E9/125	12	13	160
42~48	Multimode G50/125	6	14.5	210
42~48	Multimode G62.5/125	6	14.5	210
42~48	Single-Mode E9/125	6	14.5	210
56~64	Multimode G50/125	8	14.5	210
56~64	Multimode G62.5/125	8	14.5	210
56~64	Single-Mode E9/125	8	14.5	210
84~96	Multimode G50/125	12	14.5	210
84~96	Multimode G62.5/125	12	14.5	210
84~96	Single-Mode E9/125	12	14.5	210
