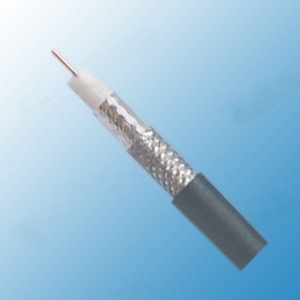

CONSTRUCTION
Inner conductor
Solid copper
Φ1.12 mm
Dielectric
Foam /Solid PE
Φ2.95 mm
Shield
Bonded aluminium foil
Φ3.07 mm
Outer conductor
Tinned copper braid
Φ3.66 mm
Sheath
PVC/PE
Φ4.95 mm
Impedance
50±3 Ohm
Nominal capacitance
80.3 pF/m
Velocity of propagation
83%
Insulation resistance
>5000 Mohm.Km
Inner conductor resistance
17.6 Ohm/Km
Outer conductor resistance
16.1 Ohm/Km
Operating temperature range
-40°C - +85 °C
Min.bending radius
27 mm
Frequency(MHz)
Attenuation (dB/100 m)
Max. Attenuation(dB/100ft)
30
5.8
1.8
50
7.5
2.3
150
13.1
4
220
15.9
4.8
450
22.8
6.9
900
32.6
9.9
1500
42.4
12.9
1800
46.6
14.2
2000
49.3
15
2500
55.4
16.9
3000
60
18.3
5800
86.5
26.4
