Armoured Cable in South Africa: Powering Infrastructure with Durability and Safety

Introduction

From the vibrant, bustling streets of Johannesburg to the windswept coastal towns of the Western Cape, South Africa’s infrastructure thrives on reliable power and connectivity. At the heart of this lies armoured electrical cables, unsung heroes that deliver electricity and data through the toughest conditions. Whether it’s powering homes during load shedding or ensuring mines operate smoothly, these cables are critical to the nation’s growth. In a country grappling with environmental challenges like corrosive coastal air, rocky terrains, and economic pressures such as vandalism and maintenance costs, choosing the right cable is no small matter.

This article dives deep into armoured electrical cables, unpacking their construction, uses, and benefits with a focus on their relevance in South Africa. Using professional cable terminology, we’ll explore why these cables are a go-to for industries, utilities, and homes, while addressing common questions and showcasing real-world case studies. By the end, you’ll understand why armoured cables are a cornerstone of South Africa’s infrastructure and how they tackle the nation’s unique challenges.

What Are Armoured Electrical Cables?

Armoured electrical cables are specialised power or data cables designed with a protective metal layer to withstand mechanical and environmental stresses. Unlike unarmoured cables, which rely solely on insulation and sheathing, armoured cables feature a robust metal armour—typically steel wire armour (SWA) for multicore cables or aluminium wire armour (AWA) for single-core cables—to shield conductors from damage and interference.

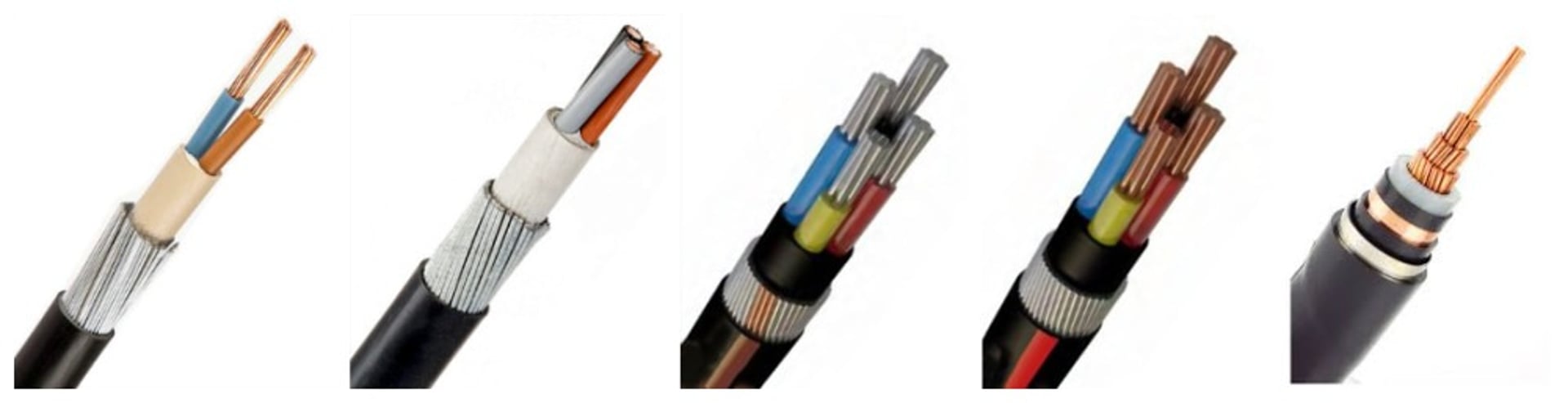

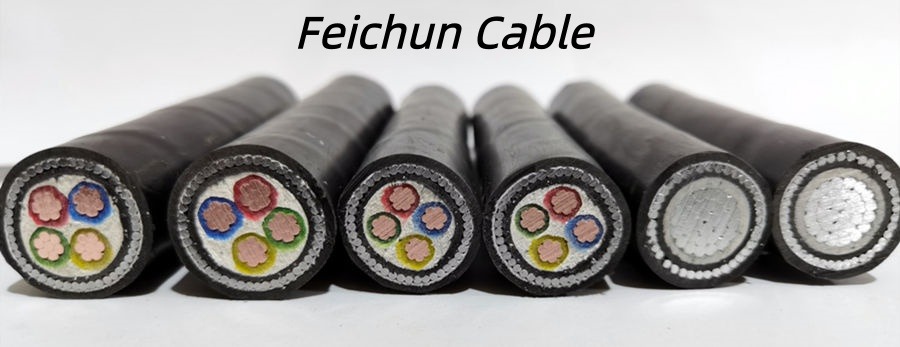

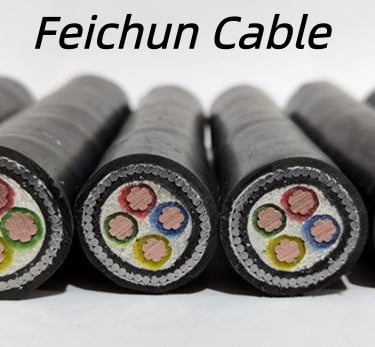

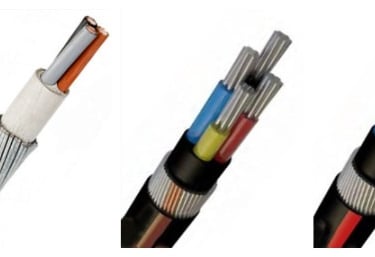

Construction of Armoured Cables

Armoured cables are built with precision to ensure durability and performance, adhering to standards like BS 5467, BS 6724 (for Low Smoke Zero Halogen variants), and IEC 60502 for 600/1000 V ratings. Their construction includes:

• Conductor: Typically stranded copper or aluminium (Class 2 as per BS EN 60228:2005), offering flexibility and high conductivity for efficient power or signal transmission.

• Insulation: Cross-linked polyethylene (XLPE) is commonly used for its excellent electrical properties, water resistance, and thermal stability, ideal for South Africa’s diverse climates.

• Bedding: A layer of polyvinyl chloride (PVC) or Low Smoke Zero Halogen (LSZH) material separates the insulation from the armour, providing stability and additional protection.

• Armour: The defining feature, this layer is made of steel wire (SWA), steel tape, or aluminium wire (AWA). SWA is used for multicore cables, while AWA is preferred for single-core to avoid magnetic interference from eddy currents.

• Sheath: An outer layer of PVC or LSZH protects against environmental factors like moisture, chemicals, and UV radiation.

Types of Armour

• Steel Tape Armour: Provides robust protection for flat cables, often used in industrial settings.

• Thin/Thick Steel Wire Armour (SWA): Offers flexibility and high tensile strength, ideal for direct burial or heavy-duty applications.

• Aluminium Wire Armour (AWA): Lightweight and non-magnetic, used for single-core cables to prevent induced currents.

These components make armoured cables a tough-as-nails solution for environments where standard cables would fail.

Uses of Armoured Electrical Cables

Armoured cables are the backbone of numerous applications across South Africa, from urban power grids to remote mining operations. Their versatility stems from their ability to endure mechanical stress, corrosion, and environmental hazards.

Power Systems

Armoured cables are widely used in South Africa’s power distribution networks, particularly in Eskom’s utility grids. They serve in:

• Overhead Lines: Supporting 11 kV and 33 kV cables for mains electricity supply.

• Underground Power Networks: Ideal for direct burial in urban and rural areas, ensuring reliable power delivery.

• Cable Ducting: Used in infrastructure projects to protect cables in trenches or conduits.

Information Transmission

Beyond power, armoured cables play a role in telecommunications:

• Submarine Fibre-Optic Cables: Historically evolving from telegraph cables to modern systems like TAT-8, these cables transmit data across oceans, with armour protecting against marine hazards.

• Local Telecom Networks: Armoured cables safeguard data cables in harsh environments, ensuring stable connectivity.

Industrial and Instrumentation Systems

In South Africa’s industrial heartlands, such as Gauteng’s mining and manufacturing hubs, armoured cables are critical:

• Manufacturing Plants: Powering heavy machinery with electromagnetic and data cables.

• Mining Operations: Withstanding crushing forces and rodent damage in underground mines.

• Instrumentation Systems: Ensuring accurate data transmission for control systems.

Direct Burial

South Africa’s rocky terrains and corrosive coastal soils make direct burial a prime application for armoured cables. They’re used in:

• Mining Regions: Protecting power lines in harsh, rocky environments.

• Coastal Areas: Resisting acid rain and salty air in places like Durban or Cape Town.

Benefits of Armoured Cables

Armoured cables offer a raft of advantages that make them a top choice for South Africa’s challenging conditions. Compared to unarmoured cables, they provide superior protection at a higher initial cost but with long-term savings.

Enhanced Protection

The metal armour shields conductors from:

• Mechanical Damage: Impacts, crushing, and abrasion, common in industrial sites or construction zones.

• Rodent Bites: A major issue in rural and mining areas, where pests can chew through unarmoured cables.

• Environmental Hazards: Moisture, chemicals, and UV radiation, prevalent in coastal and arid regions.

Durability

Armoured cables are built to last, with a typical lifespan of 20-30 years in South Africa’s harsh climates. Their robust construction reduces maintenance costs and downtime, critical for industries like mining.

Flexibility

Unlike rigid conduit systems, interlocked armour allows cables to bend around complex layouts without needing additional conduits, elbows, or couplings. This simplifies installation in tight spaces or irregular terrains.

Cost-Effectiveness

While armoured cables are pricier upfront, they eliminate the need for costly conduit systems, saving on installation and maintenance. Their longevity further reduces replacement costs.

Safety and Reliability

The armour enhances safety by:

• Acting as a circuit protective conductor (CPC) for earthing, compliant with SANS 10142 wiring regulations.

• Reducing electrical faults and short circuits caused by external damage.

• Resisting interference, ensuring stable performance during South Africa’s frequent power cycles due to load shedding.

Comparison with Unarmoured Cables

• Armoured Cables: Offer superior protection but are heavier, costlier, and less flexible, making them ideal for high-risk environments.

• Unarmoured Cables: Lighter, cheaper, and more flexible, suitable for low-risk indoor settings like offices or homes but vulnerable to damage in harsh conditions.

In-Depth Analysis of Armoured Cables

Mechanical Strength

The armouring layer significantly boosts tensile and compressive strength, making these cables ideal for:

• Direct Burial: In South Africa’s rocky terrains, such as the Northern Cape’s mining regions, armoured cables withstand soil pressure and digging.

• High-Traffic Industrial Sites: Resisting heavy machinery or foot traffic in Gauteng’s factories.

Corrosion Resistance

South Africa’s coastal regions, like Durban and Cape Town, face salty air and acidic soils. Galvanised steel or aluminium armour resists corrosion, ensuring long-term reliability. For example, AWA cables are preferred in single-core applications to avoid corrosion-induced magnetic interference.

Earthing Capabilities

A key debate in South Africa’s electrical engineering circles is whether armour can serve as the sole CPC. Recent studies under SANS 10142 confirm that SWA and AWA are adequate for most applications, provided the cable size matches the load. However, larger cables (e.g., above 50 mm²) may require additional CPC cores to ensure safe earthing.

LSZH Variants

Low Smoke Zero Halogen (LSZH) armoured cables (BS 6724) are critical in public spaces like Gautrain stations, malls, and schools. In the event of a fire, LSZH cables emit minimal toxic smoke, enhancing safety in densely populated areas—a growing concern in South Africa’s urban centres.

Environmental Adaptability

South Africa’s climate varies from humid coastlines to arid deserts. Armoured cables are designed to handle:

• Humid Conditions: XLPE insulation and PVC/LSZH sheaths resist moisture in Durban’s coastal areas.

• Arid Regions: UV-resistant sheaths protect cables in the Northern Cape’s sun-scorched landscapes.

• Temperature Extremes: XLPE insulation maintains performance in both hot and cold conditions.

Armoured Cables in South African

Case 1: Eskom’s Rural Electrification Projects (2023-2025)

Context: Eskom’s ongoing rural electrification in Limpopo and Eastern Cape aims to bring power to remote communities. Issue: Harsh terrains, vandalism, and theft pose risks to power infrastructure. Solution: XLPE-insulated SWA cables were chosen for underground distribution due to their durability and resistance to mechanical damage. Direct burial eliminates exposed wires, reducing theft. Impact: Reliable power supply has boosted local economies, supporting schools, clinics, and small businesses, with minimal maintenance costs.

Case 2: Cape Town’s Coastal Infrastructure (2024)

Context: Upgrading street lighting and power networks along the Cape Peninsula, exposed to corrosive salty air and high winds. Issue: Corrosion and mechanical stress threaten cable longevity. Solution: AWA cables were deployed for single-core applications to prevent magnetic interference and resist corrosion. LSZH sheaths were used in public areas for safety. Impact: Enhanced infrastructure longevity has reduced municipal maintenance budgets, ensuring reliable street lighting and power distribution.

Case 3: Mining Sector in Gauteng (2025)

Context: Expansions in gold and platinum mines require robust power for heavy machinery. Issue: Underground mines face high mechanical stress and rodent damage. Solution: Thick steel wire armoured cables were installed to withstand crushing forces and deter pests, with XLPE insulation for high electrical loads. Impact: Reduced downtime and safety incidents have improved productivity, critical for South Africa’s mining-driven economy.

Frequently Asked Questions (FAQs)

What’s the difference between SWA and AWA cables?
SWA is used for multicore cables, providing robust protection. AWA is used for single-core cables to avoid magnetic-induced currents, ideal for high-power applications.

Can armoured cables be used without conduits in South Africa?
Yes, their robust armour allows direct burial or exposed installation, compliant with SANS 10142, saving on conduit costs.

Are LSZH armoured cables necessary for all installations?
They’re mandatory in public spaces like Gautrain stations or malls for fire safety but optional elsewhere unless specified by regulations.

How do armoured cables handle South Africa’s load shedding?
Their durability ensures stable performance during frequent power cycles, unlike unarmoured cables that wear out faster.

What’s the lifespan of armoured cables in South Africa’s climate?
Typically 20-30 years, depending on exposure to moisture, UV radiation, or mechanical stress, with proper maintenance.

Are armoured cables cost-effective for small-scale projects?
While pricier upfront, their longevity and reduced maintenance make them viable for high-risk areas like construction sites or coastal installations.

Conclusion

Armoured electrical cables are a linchpin of South Africa’s infrastructure, powering everything from Jozi’s skyscrapers to rural clinics. Their robust construction—featuring stranded conductors, XLPE insulation, and steel or aluminium armour—ensures durability, safety, and reliability in the face of harsh climates, rocky terrains, and economic challenges like load shedding and vandalism. From Eskom’s rural electrification to Cape Town’s coastal upgrades and Gauteng’s mining operations, armoured cables prove their worth time and again.

For your next project, consult trusted suppliers like Cable Source or Feichun Cable to find the right armoured cable solution, whether it’s SWA for industrial power or LSZH for public safety. Looking ahead, trends like eco-friendly armour materials and increased adoption of LSZH cables align with South Africa’s sustainability goals, ensuring armoured cables remain a vital part of the nation’s future.
