AS/NZS 1802 Type 275 1.1 kV Shuttle Car Cable – Heavy Duty Flexible Mining Reeling Cable for Underground Mobile Equipment

Overview

AS/NZS 1802 Type 275 1.1 kV shuttle car cable is a heavy-duty flexible mining cable specifically engineered for high-speed reeling applications used on underground shuttle cars and other mobile mining equipment. Designed to withstand extreme mechanical stress, torsional movement, repeated flexing, and harsh underground operating environments, this cable construction provides excellent resistance to “corkscrewing” during continuous operation.

Manufactured in accordance with AS/NZS 1802 requirements, Type 275 cables are widely used in underground coal mines, hard rock mining operations, and heavy-duty material handling systems where reliable power transmission and mechanical durability are essential.

Key Features of AS/NZS 1802 Type 275 1.1 kV Cable

• Designed for underground shuttle car applications

• Suitable for high-speed reeling systems

• Excellent resistance to corkscrewing and torsional stress

• Heavy-duty semiconductive elastomer construction

• Flexible tinned copper conductors

• EPR (R-EP-90) insulation system

• Three power cores + three earth cores + extensible pilot

• Fire retardant design

• Resistant to water immersion and temporary flooding

• Very good resistance to chemicals and oils

• Suitable for direct weather and solar exposure

• Heavy mechanical impact resistance

• Maximum conductor operating temperature: +90°C

• Minimum operating temperature: -25°C

Applications

AS/NZS 1802 Type 275 cables are designed for demanding underground mining environments involving continuous cable movement and severe mechanical abuse.

Typical applications include:

• Underground shuttle cars

• Mining reeling equipment

• Continuous miners

• Mobile mining machinery

• Coal mining equipment

• Underground material transport systems

• Heavy-duty trailing cable systems

These cables are especially suitable for operations where cables are exposed to:

• Repeated bending and flexing

• Torsional stress

• Dragging and abrasion

• Mechanical impacts

• Moisture and temporary water coverage

• Harsh mining chemicals and oils

Standards and Approvals

Approved Standard

• AS/NZS 1802

Fire Performance

• Fire retardant

Construction Details

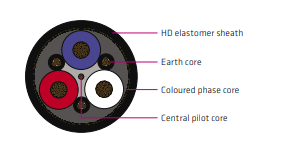

Cable Construction

AS/NZS 1802 Type 275 1.1 kV cable features a robust mining-grade construction optimized for flexibility, torsional stability, and long service life under severe underground operating conditions.

Power Cores

• Three non-individually screened power cores

• Flexible stranded tinned copper conductors

Earth Cores

• Three flexible earth conductors

• Semiconductive elastomer covered

• Positioned within cable interstices

Pilot Core

• One extensible pilot core

• Centrally located within the cable

Insulation

• EPR insulation (R-EP-90)

Core Identification

• Red

• White

• Blue

Semiconductive Cradle

Power cores are laid up in a semiconductive cradle and fill system suitable for 1.1/1.1 kV mining applications.

Sheath

• Semiconductive elastomer filled sheath

• Open weave reinforcement layer

• Heavy-duty HD-85-PCP outer sheath

This construction significantly improves resistance to:

• Mechanical deformation

• Torsional stress

• Abrasion

• Crushing

• Underground mining fatigue

Technical Characteristics

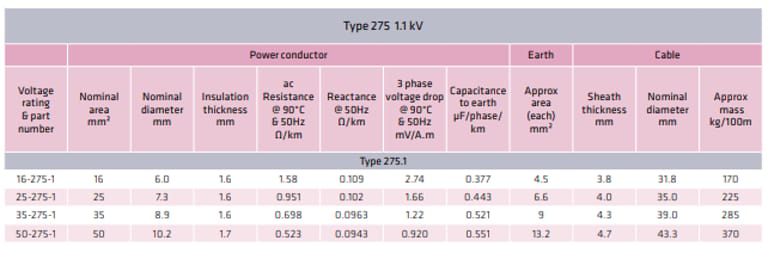

Conductor DC Resistance

Installation Conditions

Suitable Installation Environments

• In free air

• Underground mobile mining equipment

• High-flex reeling systems

• Dynamic trailing applications

Suitable Equipment

• Shuttle cars

• Mobile mining machines

• Underground transport equipment

• Heavy-duty cable reeling systems

Advantages of Type 275 Mining Cable

Excellent Torsional Resistance

The specially engineered construction minimizes corkscrewing during continuous reeling and trailing operations.

Long Service Life

Heavy-duty HD-85-PCP sheath and reinforced construction enhance durability in harsh underground environments.

Superior Flexibility

Flexible tinned copper conductors and elastomeric materials allow reliable performance during repeated bending cycles.

Enhanced Safety

Fire retardant materials and semiconductive components improve operational safety in underground mining operations.

Reliable Underground Performance

The cable maintains electrical and mechanical integrity under:

• Water exposure

• Mechanical impacts

• Abrasion

• Chemical contamination

• Continuous flexing

Why Choose AS/NZS 1802 Type 275 Cable?

AS/NZS 1802 Type 275 1.1 kV shuttle car cable is specifically developed for the toughest underground mining conditions where ordinary flexible cables fail prematurely. Its reinforced elastomeric design, torsion-resistant construction, and mining-grade materials provide exceptional reliability for critical mobile mining equipment.

For mining operators seeking:

• Reduced downtime

• Longer cable life

• Improved mechanical reliability

• Safer underground operation

• High-performance reeling capability

Type 275 mining cable is a proven heavy-duty solution for demanding underground applications.
