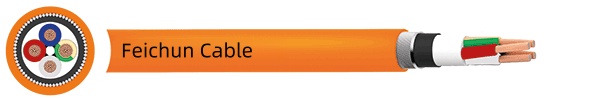

AS/NZS 5000.1 XLPE/SWA/PVC + Earth Armoured Cable 0.6/1KV

Introduction

Power cables form the backbone of modern infrastructure, quietly enabling electricity to flow through industrial plants, commercial hubs, and mining operations. Among the many cable types used globally, the AS/NZS 5000.1 XLPE/SWA/PVC + Earth Armoured Cable 0.6/1kV stands out for its robust design, safety compliance, and versatility in demanding environments.

Applications of XLPE/SWA/PVC + Earth Armoured Cable

This cable is designed for versatile applications in environments requiring safety, reliability, and resilience:

1. Power Distribution in Buildings

   • Used in sub-mains, feeders, and sub-circuits.

   • Ideal for installation in conduits, underground ducts, or direct burial where not exposed to mechanical damage.

2. Industrial Plants

   • Supplies heavy machinery and control systems.

   • Resistant to heat, chemicals, and electrical stress in oil, gas, and manufacturing industries.

3. Mining and Underground Operations

   • Widely used in South African mines, especially for underground substations.

   • Armour provides added protection against potential crushing or impact from rock movement.

4. Renewable Energy Projects

   • Supports grid connection in solar and wind farms.

   • With growing renewable investment in South Africa, these cables provide stable power transmission in harsh outdoor conditions.

Case Studies: South Africa

Mining Infrastructure in Rustenburg (Platinum Belt)

Rustenburg, located in the North West Province, is home to one of the largest platinum mining operations in the world. In 2024, several mines upgraded their underground electrical distribution networks. The AS/NZS 5000.1 XLPE/SWA/PVC + Earth Armoured Cable was chosen for substation connections, where mechanical protection and reliability under load were critical.

Key benefits observed:

• Reduced voltage drop over long cable runs.

• High mechanical endurance in underground shafts.

• Compliance with both AS/NZS and local NRCS standards.

Advantages of Using XLPE/SWA/PVC + Earth Armoured Cable

1. High Safety Margin

   • XLPE insulation prevents overheating and electrical leakage.

   • Armour enhances fault tolerance.

2. Durability

   • Withstands moisture, mechanical stress, and chemical exposure.

   • Long service life reduces replacement costs.

3. Flexibility of Application

   • Suitable for direct burial, ducts, conduits, or industrial trays.

4. Cost Efficiency in the Long Term

   • Though initially more expensive than standard PVC cables, savings arise from lower maintenance costs and fewer power interruptions.

The AS/NZS 5000.1 XLPE/SWA/PVC + Earth Armoured Cable 0.6/1kV is more than just an insulated conductor; it is a critical component of modern infrastructure, enabling reliable electricity supply in buildings, mines, renewable farms, and industrial facilities.

Its combination of copper conductors, XLPE insulation, SWA mechanical protection, and PVC sheathing ensures both safety and efficiency. In South Africa, where energy challenges are pressing, these cables are proving their worth in mining operations, solar farms, and urban power networks.

As demand for robust, long-life cables increases, the XLPE/SWA/PVC armoured cable will remain a cornerstone in achieving safe, sustainable, and efficient power distribution across industries.
