AS/NZS Type 440 Trailing Cable: Flexible Power Solutions for South Africa's Mining Renaissance – Advanced Engineering Meets Durability in Modern Underground and Surface Mining Operations

In the depths of South Africa's mines, where billion-rand operations depend on uninterrupted power flow, a revolution in cable technology is quietly transforming how mining equipment receives its electrical lifeline. The Type 440 Trailing Cable represents a pinnacle of engineering excellence, specifically designed to meet the demanding requirements of South Africa's world-renowned mining industry. As the country's mining sector grapples with power outages that have caused operations to lose approximately 12% of production time in 2024, the importance of reliable, flexible power delivery systems has never been more critical.

The Critical Role of Trailing Cables in Modern Mining Operations

Mining operations are the backbone of South Africa's economy, contributing significantly to the nation's GDP and employing hundreds of thousands of workers. In this high-stakes environment, every component must perform flawlessly under extreme conditions. Trailing cables serve as the vital arteries that deliver electrical power from stationary sources to mobile mining equipment, operating in some of the most challenging environments on Earth.

Unlike fixed installations, trailing cables must endure constant movement, flexing, and mechanical stress while maintaining electrical integrity. They snake through underground tunnels, across open-pit surfaces, and around massive mining machinery, all while carrying high-voltage electricity that powers everything from conveyor systems to dragline excavators. The failure of a single cable can halt entire mining operations, resulting in production losses that can reach millions of rand per day.

Introducing the Type 440 Trailing Cable: Engineering Excellence Redefined

The Type 440 Trailing Cable stands as a testament to advanced cable engineering, specifically designed for the unique challenges of South African mining operations. This sophisticated power delivery solution combines exceptional flexibility with robust durability, making it the preferred choice for both underground and surface mining applications across voltage ranges from 1.1kV to 22kV.

Advanced Cable Structure: Layer by Layer Excellence

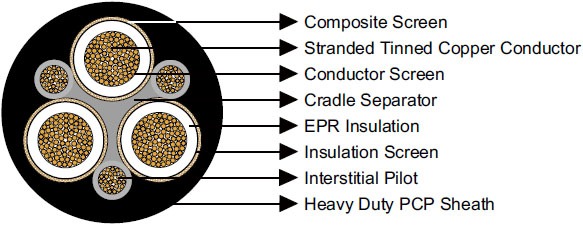

The Type 440's construction represents a masterpiece of electrical engineering, with each component carefully selected and positioned to optimize performance:

Conductors:

At the heart of the cable lie flexible stranded tinned annealed copper conductors, ranging from 6 mm² to 300 mm² cross-sectional areas. The tinning process provides superior corrosion resistance, crucial in South Africa's mining environments where moisture and chemical exposure are constant threats. The flexible stranding, utilizing configurations from 84/0.30 to 854/0.67 mm, ensures maximum conductivity while maintaining the flexibility essential for constant movement.

Conductor Screen:

The screening system varies by voltage class, with 1.1kV applications utilizing polyester barrier tape, while 3.3kV and higher voltages incorporate both polyester barrier tape and extruded semiconductive tape. This dual-layer approach ensures optimal electrical field distribution and prevents partial discharge, a critical factor in maintaining long-term reliability.

Insulation:

Ethylene Propylene Rubber (EPR) forms the primary insulation system, chosen for its exceptional electrical properties and mechanical flexibility. EPR maintains its characteristics across extreme temperature ranges, from the sub-zero conditions of high-altitude mines to the intense heat of deep underground operations. The insulation thickness ranges from 1.5 mm to 10.5 mm, precisely calculated to withstand the electrical stresses of each voltage class.

Composite Screen (Earth Conductor):

Perhaps one of the most innovative features is the composite earth screen, consisting of tinned annealed copper braiding interwoven with polyester yarn. This design provides both electrical grounding and mechanical strength, with screen areas ranging from 7.2 mm² to 71.5 mm² depending on the cable specification.

Cradle Separator:

The semiconductive Polychloroprene (PCP) cradle separator supports and protects the power cores while maintaining the cable's overall flexibility. This component is crucial for maintaining the cable's structural integrity during the constant bending and flexing experienced in mining applications.

Interstitial Pilots:

Three EPR-covered flexible stranded tinned copper pilot conductors provide control and monitoring capabilities. These pilots, typically configured as 7/0.25 mm to 7/0.50 mm strands, enable remote monitoring of cable conditions and control of mining equipment functions.

Sheath:

The heavy-duty PCP sheath provides the final layer of protection against mechanical damage, chemical attack, and environmental factors. For extreme applications, an optional CPE/CSP sheath can be specified for additional durability.

Technical Specifications: Engineering Precision in Every Detail

The Type 440 family encompasses multiple voltage classes, each meticulously engineered for specific applications:

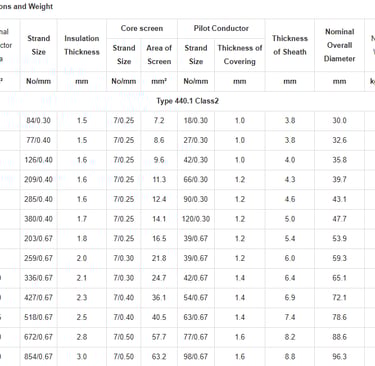

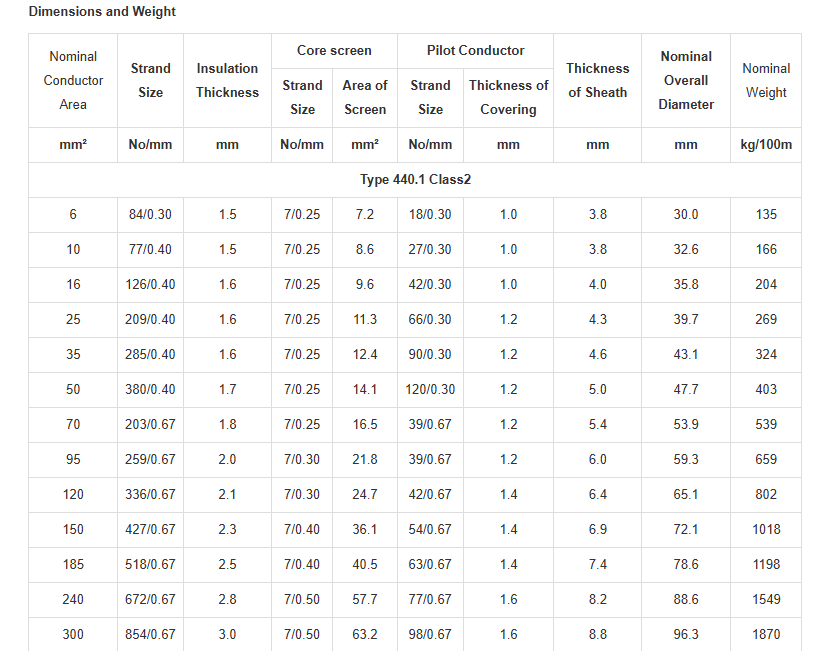

Type 440.1 Class2 (1.1kV)

• Conductor Sizes: 6 mm² to 300 mm²

• Insulation Thickness: 1.5 mm to 3.0 mm

• Overall Diameter: 30.0 mm to 96.3 mm

• Weight: 135 kg/100m to 1,870 kg/100m

• Applications: Low-voltage mobile equipment, conveyor systems

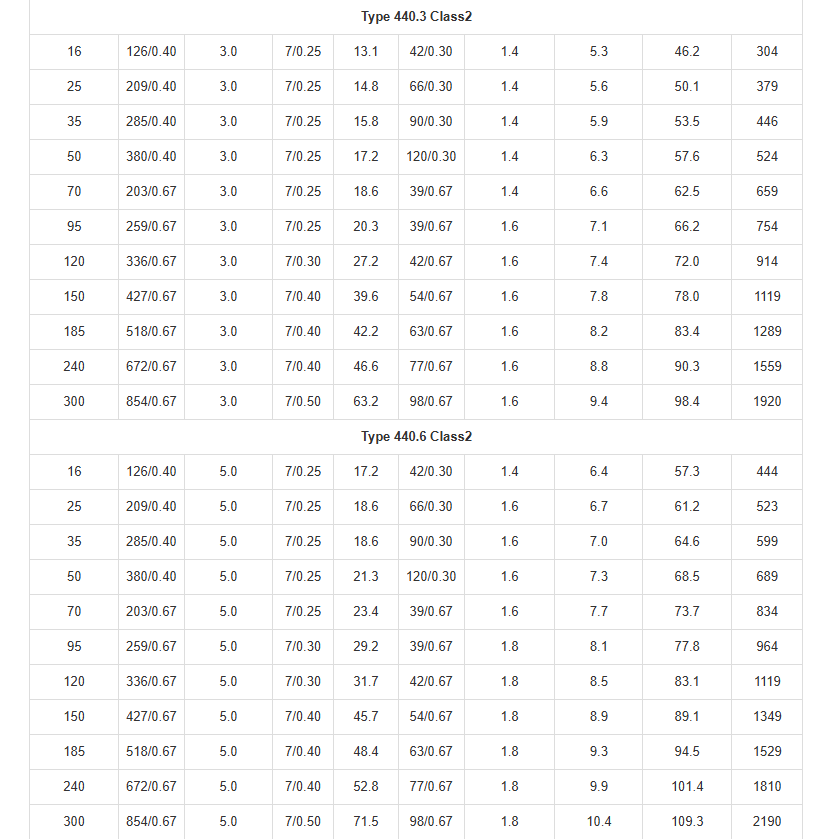

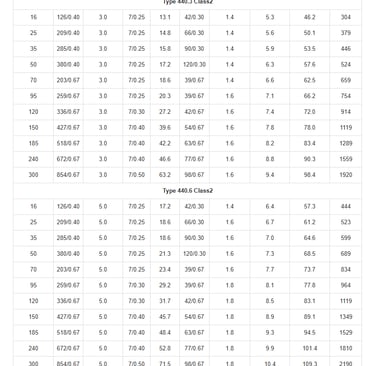

Type 440.3 Class2 (3.3kV)

• Conductor Sizes: 16 mm² to 300 mm²

• Insulation Thickness: 3.0 mm

• Overall Diameter: 46.2 mm to 98.4 mm

• Weight: 304 kg/100m to 1,920 kg/100m

• Applications: Medium-voltage mining equipment, pumps

Type 440.6 Class2 (6.6kV)

• Conductor Sizes: 16 mm² to 300 mm²

• Insulation Thickness: 5.0 mm

• Overall Diameter: 57.3 mm to 109.3 mm

• Weight: 444 kg/100m to 2,190 kg/100m

• Applications: High-power mining machinery, substations

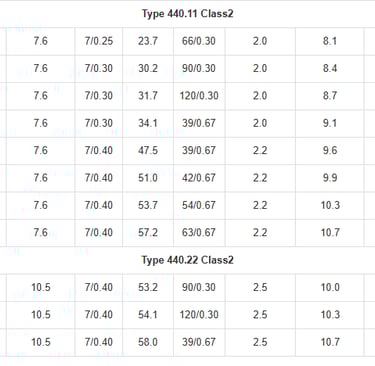

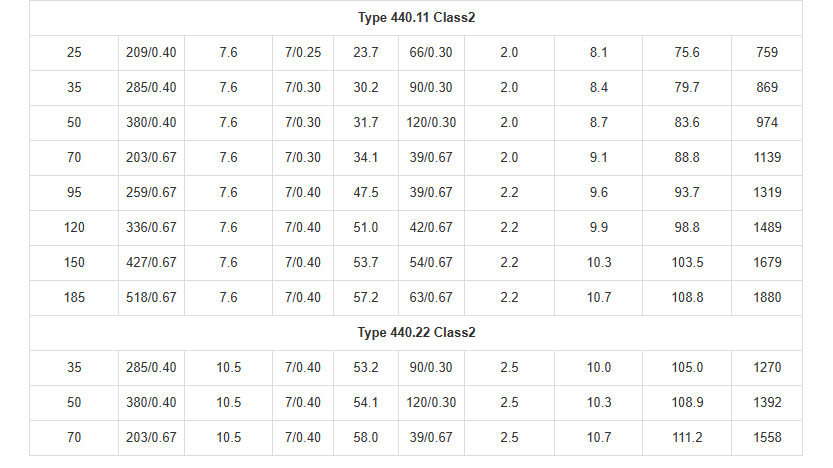

Type 440.11 Class2 (11kV)

• Conductor Sizes: 25 mm² to 185 mm²

• Insulation Thickness: 7.6 mm

• Overall Diameter: 75.6 mm to 108.8 mm

• Weight: 759 kg/100m to 1,880 kg/100m

• Applications: Major mining equipment, distribution systems

Type 440.22 Class2 (22kV)

• Conductor Sizes: 35 mm² to 70 mm²

• Insulation Thickness: 10.5 mm

• Overall Diameter: 105.0 mm to 111.2 mm

• Weight: 1,270 kg/100m to 1,558 kg/100m

• Applications: High-voltage transmission, large mining operations

Standards Compliance: Meeting South African Mining Requirements

The Type 440 Trailing Cable's compliance with Australian and New Zealand standards (AS/NZS) reflects South Africa's adoption of internationally recognized mining standards. Key compliance standards include:

AS/NZS 2802:2000

This standard specifies performance requirements for reeling and trailing cables in mining applications, covering mechanical properties, electrical characteristics, and environmental resistance. The Type 440's design exceeds these requirements, providing superior performance in South African mining conditions.

AS/NZS 1802

Focusing specifically on underground coal mining cables, this standard ensures safety and reliability in confined spaces where escape routes may be limited. The Type 440's low-smoke, halogen-free properties contribute to safer mining environments.

AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1

These complementary standards define conductor specifications, insulation materials, and general cable requirements, ensuring comprehensive compliance across all cable components.

Applications: Where Flexibility Meets Reliability

Surface Mining Applications: Mpumalanga Coal Operations

In the coal-rich Mpumalanga province, surface mining operations face unique challenges related to growing steel production driving increased coal demand. Type 440 cables have proven invaluable in powering dragline excavators and bucket-wheel excavators that operate across vast open-pit mines.

One major coal producer reported that Type 440 cables have demonstrated exceptional resistance to the abrasive coal dust environment while maintaining flexibility in extreme weather conditions. The cables' ability to function reliably despite temperature variations from -10°C during winter nights to 40°C+ during summer days has been crucial for maintaining continuous operations.

Underground Platinum Operations: Bushveld Complex

The Bushveld Igneous Complex, home to the world's largest platinum reserves, presents unique challenges for trailing cables. The combination of high humidity, temperature variations, and the presence of corrosive chemicals requires cables with superior environmental resistance.

Type 440 cables installed in several Bushveld platinum mines have shown remarkable longevity, with some installations operating reliably for over five years without major maintenance interventions. The cables' EPR insulation has proven particularly effective against the chemical exposure common in platinum processing areas.

Installation Guidelines: Maximizing Performance and Longevity

Proper installation is crucial for realizing the Type 440's full potential. Key installation considerations include:

Reeling Equipment Requirements

• Use certified reeling drums with smooth surfaces to prevent cable damage

• Maintain proper tension to avoid overstretching or slack formation

• Install cable guides at appropriate intervals to prevent excessive wear

Environmental Considerations

• Ensure adequate drainage to prevent water accumulation around cable pathways

• Use protective conduits in areas prone to mechanical damage

• Implement appropriate cable support systems for vertical installations

Electrical Connections

• Use only approved termination methods to maintain cable integrity

• Implement proper grounding procedures in accordance with mining safety regulations

• Install surge protection devices to guard against electrical transients

Maintenance Best Practices: Ensuring Long-Term Reliability

Given South Africa's mining industry challenges, including power outages and rising electricity costs significantly undermining productivity, proper maintenance becomes even more critical.

Routine Inspection Protocols

• Visual Inspections: Conduct monthly visual checks for cuts, abrasions, or sheath degradation

• Electrical Testing: Perform quarterly insulation resistance and continuity tests

• Thermal Imaging: Use infrared cameras to identify hot spots indicating potential problems

• Flexibility Assessment: Monitor cable flexibility to detect early signs of conductor fatigue

Preventive Maintenance Schedule

• Daily: Visual inspection of high-stress areas

• Weekly: Clean cables to remove dust and chemical residues

• Monthly: Comprehensive electrical testing and documentation

• Quarterly: Professional inspection by certified technicians

• Annually: Complete cable replacement evaluation

Environmental Protection Measures

• Store spare cables in climate-controlled environments

• Use UV-resistant cable covers for surface applications exposed to sunlight

• Implement chemical barrier systems in areas with high chemical exposure

Comparative Analysis: Type 440 vs. Type 441

While both cables serve the mining industry, they are optimized for different applications:

Type 440 Advantages

• Superior Flexibility: Ideal for applications requiring constant movement

• Lighter Construction: Easier handling and installation

• Optimized for Reeling: Designed specifically for drum-based cable management systems

Type 441 Advantages

• Enhanced Abrasion Resistance: Better suited for extremely harsh environments

• Heavier Construction: Provides additional protection in longwall mining applications

• Specialized Armor: Optional steel wire armor for extreme mechanical protection

Conclusion

As South Africa's mining industry navigates the challenges of the 21st century, from electricity supply constraints that have caused significant production losses to increasing demands for operational efficiency and environmental responsibility, the Type 440 Trailing Cable represents a crucial technological advancement. Its combination of exceptional flexibility, robust durability, and compliance with international standards positions it as the ideal power delivery solution for modern mining operations.

The cable's proven performance across diverse applications – from the depths of gold mines to the expansive coal operations of Mpumalanga – demonstrates its versatility and reliability. As South African mining companies continue to invest in equipment modernization and operational efficiency improvements, the Type 440 Trailing Cable stands ready to power the next generation of mining excellence.

The future of South African mining depends on reliable, efficient, and sustainable technologies. The Type 440 Trailing Cable, with its advanced engineering and proven performance, is not just a cable – it's an enabler of mining success, a contributor to operational safety, and a partner in South Africa's continued leadership in global mining operations.

Whether powering underground equipment in the world's deepest mines or supporting surface operations across vast open-pit sites, the Type 440 Trailing Cable delivers the flexibility, reliability, and performance that South African mining demands. In an industry where every hour of uptime translates to significant economic value, choosing the right trailing cable isn't just a technical decision – it's a strategic investment in operational excellence and long-term success.
