Breakout Fiber Cable

Application

These optical fiber cables are designed to data transmission in ship and specially in cruise ship where low smoke, halogen free and flame retardant cables are required to increase safety on board, suitable for flexible installation on and below deck of commercial ships without constant exposure to oil, grease and other lubricants.

Standards

IEC 60092-350/351/352/353/359/370/376
IEC 60332-1-2
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

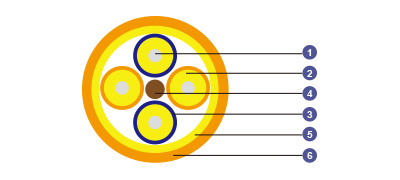

Construction

Optical Fiber

Semi tight buffered.

Strain Relief Elements

Aramid.

Subcable Sheath

Halogen-free, flame-retardant compound.

Central Strength Member

Separator

Taping.

Strain Relief Elements

Aramid.

Outer Sheath

SHF1.

G50/125

G62.5/125

E9/125

Geometry/Mechanical Properties

Core Diameter

µm

50 ± 2.5

62.5 ± 3

Mode Field Diameter (at 1310 nm)

µm

9.2 ± 0.4

Cladding Diameter

µm

125 ± 2

125 ± 1

125 ± 2

Coating Diameter

µm

245 ± 10

245 ± 5

245 ± 10

Core Non-circularity

%

< 5

< 5

Cladding Non-circularity

%

< 1

< 1

< 1

Core/Clad Concentricity Error

µm

< 1.5

< 1.5

< 0.8

Eccentricity of Coating

µm

< 10

< 10

< 10

Screen Test

≥100 kpsi

≥100 kpsi

≥100 kpsi

Transmission Properties

OM2

OM1

OS1

Wavelength

nm

850

1300

850

1300

1310

1550

Attenuation Max.

dB/km

2.7

0.8

3.2

0.9

0.36

0.22

Bandwidth Min.

MHz. km

500

1000

250

600

Effective Group of Refraction

1.483

1.478

1.497

1.493

1.4695

1.4701

Numerical Aperture

0.200 ± 0.015

0.275 ± 0.015

Dispersion Coefficient Max.

ps/nm.km

3.5

18

Zero Dispersion Wavelength

nm

1300

–1322

Dispersion Slope

ps/nm² .km

≤0.092

Cutoff Wavelength (cabled)

nm

≤1250

Polarization Mode Dispersion

ps/km1/2

≤0.1

Part No.

No. of Optical Fibers

Nominal Overall Diameter mm

Nominal Weight kg/km

UE092-BTA-X-2-H-F-H-CD-A

2

10.1

85

UE092-BTA-X-4-H-F-H-CD-A

4

10.1

85

UE092-BTA-X-6-H-F-H-CD-A

6

11.8

120

UE092-BTA-X-8-H-F-H-CD-A

8

13.6

160

UE092-BTA-X-10-H-F-H-CD-A

10

15.4

200

UE092-BTA-X-12-H-F-H-CD-A

12

17.2

245
