BS7835 XLPE LSZH 6.35/11 (12)kV Cable

Introduction: Safe and Reliable Power Transmission

In an era where reliable electricity is the lifeblood of modern society, medium voltage cables like the BS 7835 XLPE LSZH 6.35/11 (12)kV Cable play a pivotal role. This cable, designed for power networks operating at voltages up to 12kV, combines cross-linked polyethylene (XLPE) insulation with low smoke zero halogen (LSZH) sheathing, making it a standout choice for environments where fire safety is paramount. As global energy demands escalate and sustainability takes center stage, understanding this cable's intricacies offers valuable insights into how technology is evolving to meet these challenges.

The BS 7835 standard, a British specification widely adopted internationally, ensures that this cable not only transmits power efficiently but also minimizes risks during emergencies. With features like flame retardancy and UV resistance, it's engineered for longevity in harsh conditions. In South Africa, where energy infrastructure is undergoing a dramatic transformation amid load shedding crises and a push toward renewables, cables like this are becoming indispensable. According to recent analyses, South Africa's renewable energy capacity is projected to reach 30GW by 2030, with significant growth in 2025 driven by utility-scale projects

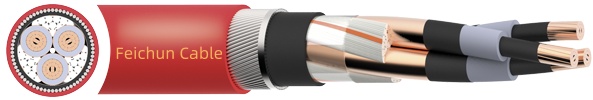

Unpacking the Construction: What Makes the BS 7835 XLPE LSZH Cable Tick

At its core, the BS 7835 XLPE LSZH 6.35/11 (12)kV Cable is built for durability and safety. The conductor is typically Class 2 stranded copper, offering flexibility and low resistance. For instance, a 50mm² cross-sectional area conductor has a nominal diameter of 19mm and a maximum resistance of 0.387 ohms/km at 20°C. Larger sizes, like 1000mm², scale up to 91 strands with resistance dropping to 0.0176 ohms/km, ensuring efficient current flow across various loads.

Surrounding the conductor is a semi-conductive XLPE screen, followed by the main XLPE insulation layer. This cross-linked polyethylene provides excellent dielectric strength, resisting breakdown under high voltages. Another semi-conductive XLPE screen caps the insulation, preventing partial discharges. A metallic screen—copper tape, either individual or overall—shields against electromagnetic interference, crucial in dense urban power grids.

For mechanical protection, the cable includes fillers like polyethylene terephthalate (PET) fibres and a binding tape separator. The bedding is LSZH, which emits minimal smoke and no halogens in fires, reducing toxicity. Armouring varies: aluminium wire armour (AWA) for single-core versions to prevent induced currents, and steel wire armour (SWA) for multi-core to withstand impacts. The outer sheath, also LSZH, comes in red or black, with UV resistance for outdoor exposure.

Temperature ratings are fixed from 0°C to +90°C, and bending radii are generous—15 times overall diameter for single-core fixed installations, dropping to 12 times near joints with careful control. These elements comply with standards like BS 7835, EN 60228, and IEC/EN 60502-2, including flame retardancy per IEC/EN 60332 and low smoke to IEC/EN 61034. This construction not only enhances performance but also aligns with global safety trends, where LSZH materials are increasingly mandated in public infrastructure.

Usage Scenarios: From Urban Grids to Hazardous Environments

The BS 7835 XLPE LSZH 6.35/11 (12)kV Cable excels in power networks, underground burials, outdoor exposures, and cable ducting. Its LSZH properties make it essential where fire, smoke, and fumes pose risks—think tunnels, hospitals, or data centers. In underground applications, the armour protects against rodent damage and soil pressures, while XLPE insulation resists moisture ingress.

Outdoors, UV-resistant sheathing withstands sunlight, suiting overhead-to-underground transitions. In ducting, the smooth exterior eases pulling, reducing installation time. Globally, similar cables support renewable integrations, like wind farms where medium voltage collectors link turbines to substations. In South Africa, amid 2025's energy wheeling trends—where private generators sell power via public grids—this cable facilitates secure connections, enhancing grid stability.

The BS 7835 XLPE LSZH 6.35/11 (12)kV Cable represents a fusion of innovation and practicality, essential for modern power systems. Its technical specs ensure efficiency, while LSZH features prioritize safety. In South Africa, as 2025 ushers in renewable booms and infrastructure reforms, this cable is key to overcoming energy hurdles.
