CAN BUS CABLES 120Ω

Application

These cables are dedicated to the shipbuilding industry.

Standards

IEC 60092-350/351/352/353/359/370/376
IEC 60332-1-2
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

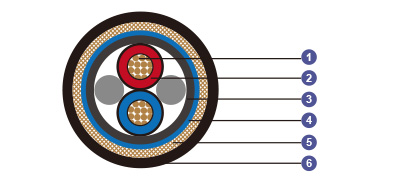

Construction

Conductors

Stranded tinned copper 21AWG.

Insulation

Foam skin PP.

Inner Sheath

Thermoplastic copolymer (FRNC).

Overall Screen1

Aluminium/polyester tape.

Overall Screen2

Tinned copper braid.

Outer Sheath

LSOH (SHF1).

Core Identification

Pair 1: Blue, Red
Pair 2: Brown, Green

Characteristic Impedance

Ω

120 ± 18

Mutual Capacitance @1KHz

nF/km

36

Insulation Resistance

GΩ.km

5

1 pair

2 pair

Attenuation @0.1MHz

dB/100m

0.65

0.3

Attenuation @1MHz

dB/100m

1.9

1.1

Attenuation @5MHz

dB/100m

4.3

2.8

Attenuation @10MHz

dB/100m

8.1

3.9

Attenuation @20MHz

dB/100m

10.5

5.7

Part No.

Construction

No. of elements×No. of cores in element×Cross

section(mm²)

Core Diameter mm

Nominal Overall

Diameter mm

Nominal Weight kg/km

UE092-09YSH(ST)CH-1×2×21A

1×2×21 AWG

2.4

7.7

79

UE092-09YSH(ST)CH-2×2×21A

2×2×21 AWG

2.2

8.4

90
