Type 209 1.1 to 11KV Mining Cable AS/NZS 1802
AS/NZS 2802 Type 209 1.1kV to 11kV Mining Cable
AS/NZS 1802 Type 209 1.1 to 11KV
Applications
Type 209 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment.
Standards
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

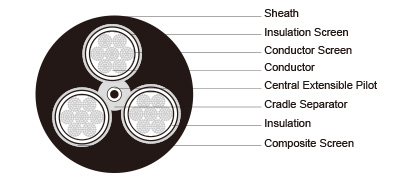

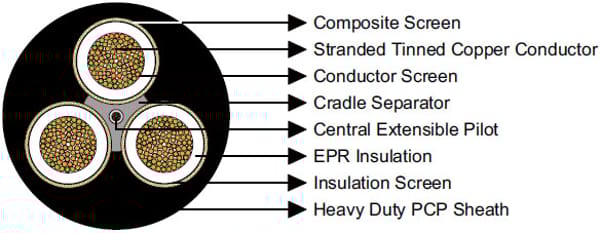

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV and above - polyester barrier tape and extruded semiconductive tape.
Insulation: EPR.
Insulation Screen: Semiconductive tape.
Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator: Semiconductive PCP.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Sheath: Heavy duty PCP sheath.
The Type 209 Mining Trailing Power Cable, rated from 1.1kV to 11kV, is engineered to excel in the demanding conditions of underground and open-pit coal mines. Below are the key advantages that make this cable a standout choice for mining operations:
Dust and Moisture Resistance
The Type 209 Cable is specifically designed to combat the dusty and damp conditions prevalent in underground coal mines. Its robust construction prevents dust and moisture infiltration, ensuring consistent electrical integrity and reducing the risk of short circuits, downtime, or hazardous situations.
Superior Mechanical Strength
Built to withstand the intense mechanical stresses of mining environments, the Type 209 Cable endures pulling, bending, and abrasion caused by heavy machinery and equipment. Its rugged design ensures reliable performance without compromising functionality, even under extreme physical demands.
Compliance with AS/NZS 1802 and AS/NZS 2802
The Type 209 Cable meets and exceeds the rigorous AS/NZS 1802 and AS/NZS 2802 standards, the benchmarks for mining cables in Australia and New Zealand. These certifications confirm the cable’s safety, durability, and performance, providing peace of mind for operators in the most challenging mining conditions.
UV Resistance for Open-Pit Mines
For surface open-pit mines exposed to harsh sunlight, the Type 209 Cable features a UV-resistant outer sheath. This protection prevents degradation from prolonged sunlight exposure, extending the cable’s service life and minimizing maintenance costs in high-sunlight regions.
High Adaptability Across Mining Environments
The Type 209 Cable is highly versatile, adapting seamlessly to various mining environments, from low-dimensional underground mines with tight spaces to open-pit operations exposed to the elements. Its flexibility and compatibility with diverse equipment—such as mine winder systems, reeling machines, and cable reel retractable applications—make it an ideal choice for operators seeking a reliable, all-purpose solution.
Durability in Harsh Conditions
Designed to perform in extreme mining environments, the Type 209 Cable resists moisture, chemicals, and mechanical stress. This durability ensures consistent operation, reducing downtime and maintenance costs while enhancing overall operational efficiency.
Comprehensive Support and Services
We provide extensive support for the Type 209 Cable, including expert guidance on installation, maintenance, and troubleshooting. Our dedicated team ensures that your mining operations maximize the benefits of this high-performance cable, offering reliable assistance to keep your systems running smoothly.
