CY 300/500V
Application
These screened cables are designed for use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. PVC inner sheath has been replaced in these cables by a stabilising foil separator, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc.
Standards
DIN VDE 0245

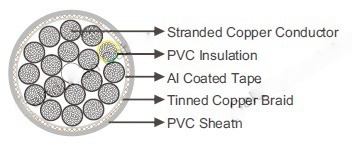

Construction
Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
Insulation | PVC Type YI 2. |
Separator | Al coated tape. |
Screen | Tinned copper braid. |
Sheath | PVC Type YM 2/TM 2. |
Technical Data
Rated Voltage Uo/U (Um) | 300/500V |
Operating Temperatures | flexing: -15℃~+70℃; fixed: -40℃~+70℃ |
Minimum Bending Radius | flexing: 20×OD; fixed: 10×OD |
Flame Retardant | IEC 60332-1 |
Ozone Resistant | Yes |
Silicone Free | Yes |
Lead Free | Yes |
