Feichun PROTOLON(M)-R Medium Voltage Reeling Cable without Integrated Fiber-optics

Feichun PROTOLON(M)-R is a flexible medium voltage reeling cable without integrated fiber-optics, optimized for dynamic applications in open-cast mines. Unlike static cables used in fixed installations, reeling cables like this one are designed to wind and unwind repeatedly on mono spiral or cylindrical reels, accommodating the constant movement of mobile equipment. This makes it ideal for connecting large machines that traverse rugged terrain, ensuring a steady supply of power without compromising on safety or efficiency.

The cable's designation, R-(N)TSCGEWOEU, reflects its robust construction: "R" for reeling, "TSC" indicating tinned strands (though in this case, it's electrolytic copper, not tinned), "GE" for earth conductor, "WO" for weather-resistant, and "EU" for European standards compliance. Based on DIN VDE 0250-813, it's certified by bodies like MSHA (Mine Safety and Health Administration) for U.S. operations, alongside GOST K and B approvals for Russian markets, and a Fire Certificate from the Russian Federation. These certifications underscore its global applicability, particularly in regions with stringent safety regulations.

Key to its design is the focus on mechanical flexibility and electrical reliability. The PROTOLON(M)-R features finely stranded electrolytic copper conductors (Class FS), which offer superior bendability compared to coarser strands. Insulation is made from enhanced Ethylene Propylene Rubber (EPR, type 3GI3), known for its excellent dielectric properties and resistance to heat and chemicals. An inner sheath of EPR (5GM3) and a synthetic elastomer outer sheath (CR, enhanced 5GM5) provide layers of protection, reinforced by a polyester braid for added tensile strength.

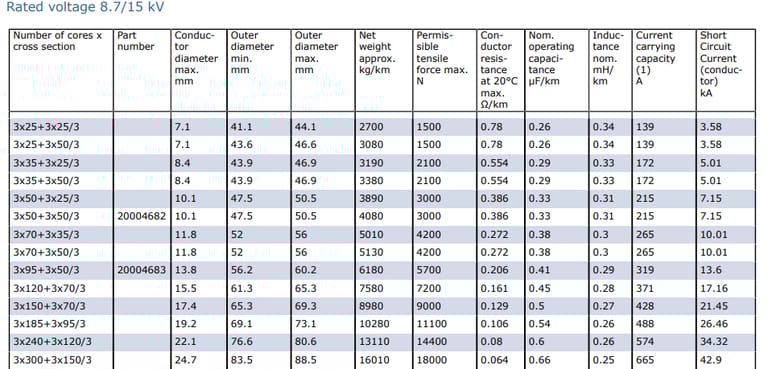

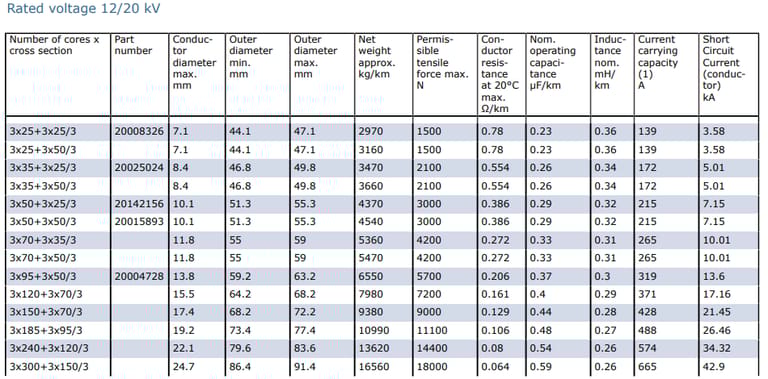

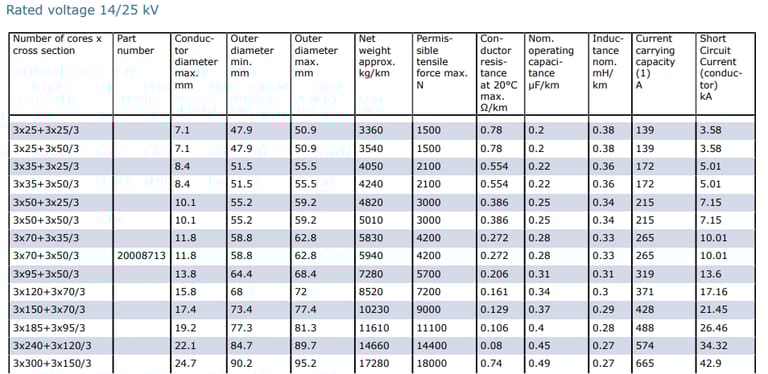

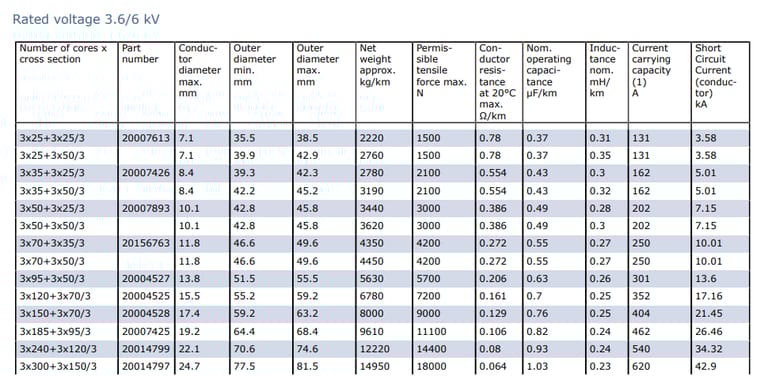

This construction allows the cable to handle rated voltages from 3.6/6 kV up to 20/35 kV, with maximum permissible AC voltages of 4.2/7.2 kV and DC up to 5.4/10.8 kV. An AC test voltage of 11 kV ensures it can withstand surges, making it suitable for high-power demands in mining machinery. In essence, the PROTOLON(M)-R isn't just a wire—it's a lifeline engineered for the chaos of extreme mining environments.

Advantages of PROTOLON(M)-R:

The true value of the PROTOLON(M)-R lies in its advantages, which translate to tangible benefits for mining operators. Foremost is its exceptional mechanical flexibility, allowing it to endure constant movement without cracking or losing conductivity—a common issue with rigid cables that leads to frequent replacements and downtime.

Durability is amplified by the reinforced construction: the polyester braid vulcanized between sheaths acts as a shock absorber, distributing stress evenly and extending lifespan. This reduces maintenance costs, a critical factor in an industry where equipment downtime can halt production entirely. Electrical reliability ensures consistent power delivery, minimizing risks of overloads or shorts that could damage expensive machinery.

Versatility is another edge; compatible with mono spiral and cylindrical reels, it supports both fixed and flexible installations, adapting to diverse setups. Environmental resistance—to fire, oil, ozone, UV, and moisture—means it thrives in extreme mining environments where lesser cables would degrade quickly.

Compared to standard reeling cables, the PROTOLON(M)-R offers higher tensile strength and broader temperature tolerance, making it ideal for high-stress applications. Operators report fewer failures, leading to improved safety and efficiency. In an era of sustainability, its long lifespan reduces waste, aligning with ESG (Environmental, Social, and Governance) goals prevalent in global mining.

Usage Scenarios:

The PROTOLON(M)-R is tailor-made for open-cast mining, where mobility is key. In excavators, it provides reliable medium voltage power for digging arms and hydraulics, handling the torsional stresses of pivoting booms. For dumpers navigating uneven terrain, the cable's flexibility ensures uninterrupted supply during loading and unloading cycles.

Mobile crushers benefit from its high-speed compatibility, powering crushers that process tons of ore amid dust and vibration. Beyond mining, it could extend to ports or construction sites with similar reeling needs, but its optimizations shine in extreme environments like quarries or landfills.

Installation is straightforward: self-assembly kits allow on-site setup, while factory terminations ensure precision. Proper routing—maintaining a minimum distance of 20x cable diameter for S-type directional changes—prevents premature wear. In practice, it's deployed on reels attached to machinery, unwinding as equipment moves and rewinding during returns.

Frequently Asked Questions About PROTOLON(M)-R

What voltage ranges does the PROTOLON(M)-R support?

It handles rated voltages from 3.6/6 kV to 20/35 kV, with max AC at 4.2/7.2 kV and DC at 5.4/10.8 kV, tested at 11 kV AC.

Is it suitable for cold climates?

Yes, with flexible operation down to -35°C, ideal for varying mining conditions.

How does it compare to fiber-optic integrated cables?

Without fiber-optics, it's lighter and more focused on power transmission, but compatible with separate data lines if needed.

What maintenance is required?

Regular visual and electrical inspections for wear; proper storage on reels extends life.

Can it be used in underground mining?

While optimized for open-cast, its certifications allow adaptation, though reeling is best for surface mobility.

Does it meet ESG standards?

Its durability reduces waste, and resistances align with environmental protections, supporting sustainable mining.

Feichun PROTOLON(M)-R represents the pinnacle of medium voltage reeling cable technology, offering unparalleled solutions for extreme mining environments. From its robust specs to real-world impacts in places like South Africa, it's clear this cable is more than a component—it's a catalyst for safer, smarter mining. As the industry evolves, embracing innovations like this will be key to overcoming challenges and unlocking potential.
