Feichun PROTOMONT Type 7, Type 7M, Type 7S, Type 11 Flexible Trailing Cables for According to BS 6708

Imagine descending miles beneath the Earth's surface, where darkness reigns and every rumble echoes like thunder. Underground mining isn't just an industry—it's a high-stakes ballet of machinery, human ingenuity, and unyielding geology. Here, power transmission is the unsung hero, the invisible thread connecting massive drills, conveyor belts, and mobile equipment to the surface's energy grid. But in these depths, where temperatures swing wildly, moisture drips incessantly, and mechanical stresses twist like vengeful spirits, ordinary cables fail spectacularly. Enter the Feichun BS 6708 PROTOMONT trailing cables: a quartet of engineering triumphs—Type 7, Type 7M, Type 7S, and Type 11—designed to BS 6708 standards for the most unforgiving environments.

These flexible trailing cables aren't mere wires; they're armored warriors, blending cutting-edge materials science with rigorous compliance to deliver reliable power where failure means catastrophe. Finely stranded tinned copper conductors pulse with electricity, wrapped in layers of Ethylene Propylene Rubber (EPR) insulation and Chloroprene Rubber (CR) sheathing that shrug off abrasion, fire, and chemicals. Certified under global benchmarks like MSHA P-07-KA130007 and China's MA certification, they ensure not just functionality but safety in coal cutters, cable handlers, and dynamic mining gear.

Unveiling the PROTOMONT Series: A Quartet Tailored for the Depths

The Feichun BS 6708 PROTOMONT lineup is a symphony of specialization, each type fine-tuned for underground mining's diverse demands. Born from decades of cable innovation, these trailing cables feature a tri-core power setup (red, yellow, brown) around a bare tinned copper earth core, plus monitoring conductors for fault detection. The outer PROTOFIRM CR sheath, black and unyielding, repels oil, ozone, and water, while inner PROTOLON EPR layers ensure dielectric strength up to 3 kV AC test voltage.

Type 7 sets the baseline: a versatile workhorse for general power supply, ideal for conveyor systems where reliability trumps complexity. Type 7M amps up mechanical and thermal resilience, swapping earth cores for heavier gauges to tackle high-stress zones like vibrating loaders. Type 7S introduces customization, incorporating pilot cores and smaller monitoring lines for specialized gear, such as continuous miners needing real-time feedback. Finally, Type 11 is the elite guardian, its full copper/nylon braid screening fortifying against EMI in electromagnetic hotspots, perfect for dense equipment clusters.

What unites them? A commitment to flexibility—Class 5 stranded conductors that flex without fatigue—and global certifications ensuring seamless integration worldwide. These aren't off-the-shelf products; they're engineered per BS 6708 for trailing applications, from coal cutters in cable handlers to mobile rigs in platinum drifts. As we'll explore, their specs translate to tangible gains: longer runs, fewer repairs, and peace of mind in the dark.

Dissecting the Variants: From Type 7's Reliability to Type 11's Fortified Defense

Let's zoom in on each PROTOMONT type, revealing how subtle design tweaks yield profound performance leaps.

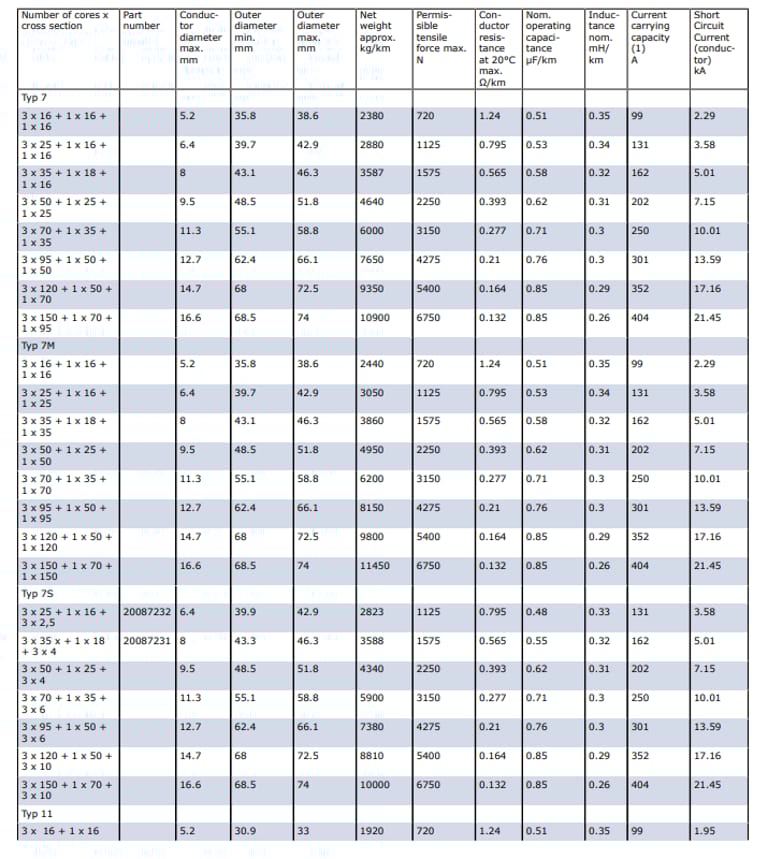

Type 7: The Stalwart Standard As the entry point, Type 7 embodies straightforward excellence. Its three power cores (e.g., 3x16 mm² + earth and pilot) lay up around a central 16 mm² earth, delivering 99 A current capacity with a 2.29 kA short-circuit rating. At 35.8-38.6 mm outer diameter, it's nimble for general underground power distribution, powering lights and pumps in stable tunnels. Benefits shine in cost-efficiency: lower weight (2380 kg/km for 16 mm²) means easier deployment, while 1.24 Ω/km resistance ensures minimal voltage drop over long hauls.

Type 7M: Mechanically Augmented Might For arenas of amplified abuse, Type 7M beefs up. Matching Type 7's dimensions but with upgraded earth (e.g., 3x25 mm² + 25 mm² earth), it boosts tensile tolerance and thermal headroom, hitting 131 A at 3050 kg/km. The enhanced configuration—thicker pilots for better monitoring—excels in high-vibration setups, like shuttle cars dragging ore. Here, the M variant's secret is in the stranding: finer Class 5 tinned copper resists fatigue cracking, extending service life by 20-30% in dynamic ops.

Type 7S: Specialized Synergy Type 7S customizes for synergy with smart systems. Adding three small monitoring cores (e.g., 3x2.5 mm² for 25 mm² power), it facilitates proximity sensors or data lines, vital for automated coal cutters. At 39.9 mm diameter and 2823 kg/km, it's slightly bulkier but offers 0.48 µF/km capacitance for cleaner signals. In continuous mining, this prevents overloads, with inductance at 0.33 mH/km minimizing inductive losses—key for precise control in cable handlers.

Type 11: The EMI-Exorcising Elite Crowning the series, Type 11 deploys a full copper/nylon braid over the earth core, slashing EMI for environments jammed with radios and inverters. Slimmer at 30.9-33 mm for 16 mm² configs (1920 kg/km), it packs 99 A punch with 1.95 kA short-circuit resilience. Ideal for extreme mechanical stress, its braid—interwoven for flexibility—guards against induced voltages, ensuring stable 0.7/1.2 kV AC operation even amid RF noise.

Across variants, bending radii adhere to DIN VDE 0298 Part 3, often 7-10x outer diameter, allowing serpentine routing without sheath tears. These distinctions make selection intuitive: Type 7 for basics, 7M for muscle, 7S for smarts, and 11 for shielded supremacy.

Benefits: Why PROTOMONT Cables Outshine the Competition

The PROTOMONT series doesn't just transmit power; it transforms operations. Unmatched durability slashes replacement cycles—CR sheaths outlast PVC by 50% in abrasive tests—cutting costs and downtime. Safety surges with fire/moisture resistance, reducing arc-flash risks in confined spaces. EMI screening in Type 11 prevents signal glitches, averting mishaps in automated fleets.

Ease of install? Flexible stranding and color-coded cores (per BS 7655) speed deployment. Compliance streamlines audits, while eco-friendly materials like EPR minimize halogen emissions in fires. Quantitatively, users report 15-25% efficiency gains via lower resistance and capacitance, translating to greener energy use in remote sites.

Usage Scenarios: Powering the Mine's Pulse

In underground mining, PROTOMONT cables flex across spectra. Type 7 fuels static distribution boards in ventilation shafts, its standard config ensuring steady 640 V to fans. Type 7M thrives in mobile machinery, trailing behind load-haul-dump units in gold drifts, absorbing 15 N/mm² pulls without sheath breaches.

Cable handlers in coal faces favor Type 7S: its pilot cores integrate with proximity detectors, halting cutters at obstacles. For platinum mines' EMI-heavy zones—think clustered inverters—Type 11's braid maintains clean power to sensors, preventing false trips. Across all, they excel in moist, high-temp setups, from South African deep levels to Australian coal seams, powering uninterrupted ops.

Feichun BS 6708 PROTOMONT Type 7, 7M, 7S, and 11 trailing cables aren't just conduits—they're catalysts for safer, smarter mining. From specs that defy depths to scenarios that drive productivity, they embody resilience. As South Africa's Mponeng proves, investing in such innovation yields dividends in efficiency and lives saved. For mining's next chapter, look no further: the power to conquer the abyss is in these wires.
