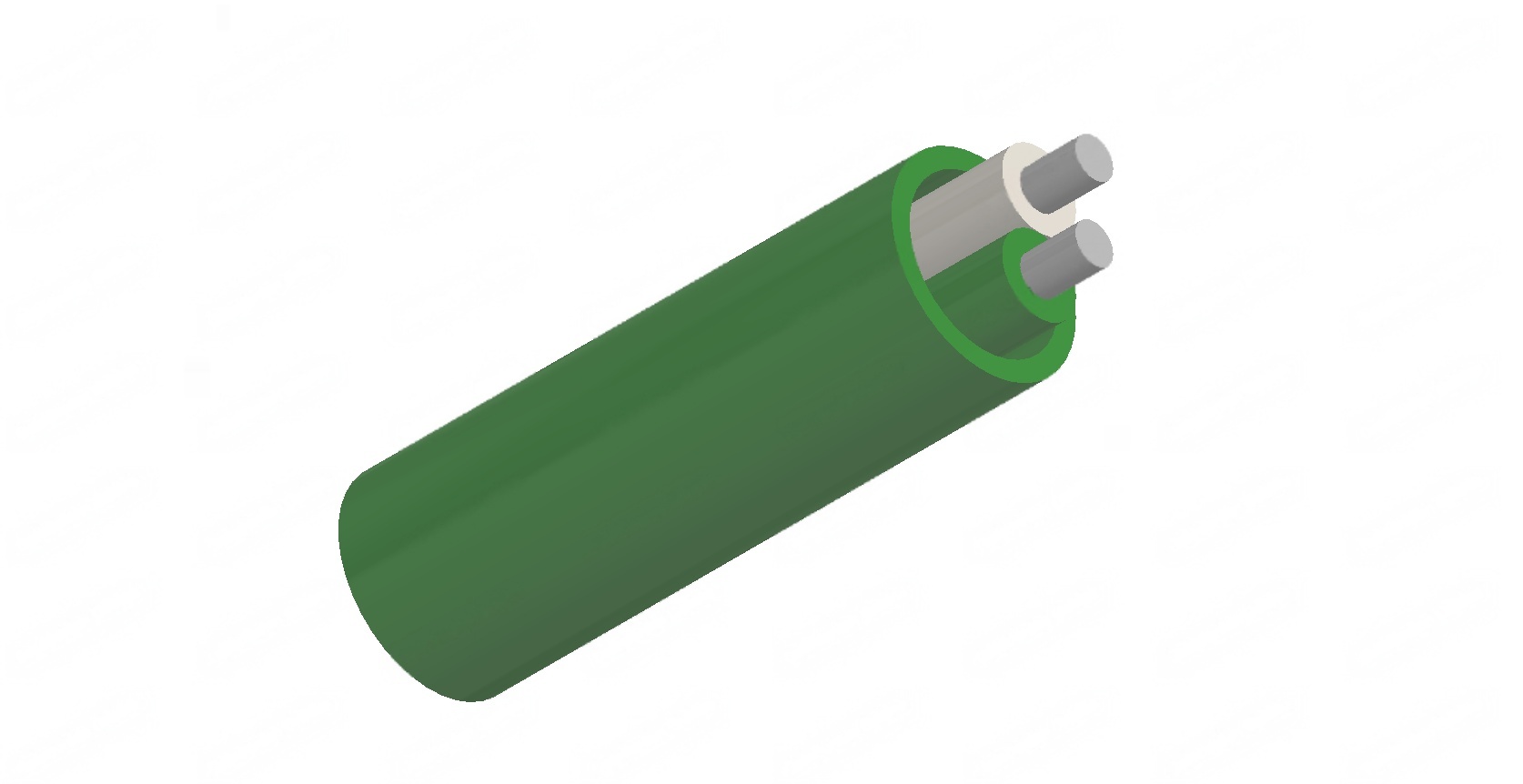

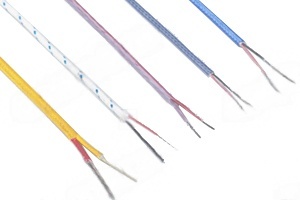

FEP Insulated Thermocouple Wire and Extension Wire

Product application

FEP Insulated Thermocouple Wire may be used for general use extension wire for thermocouples

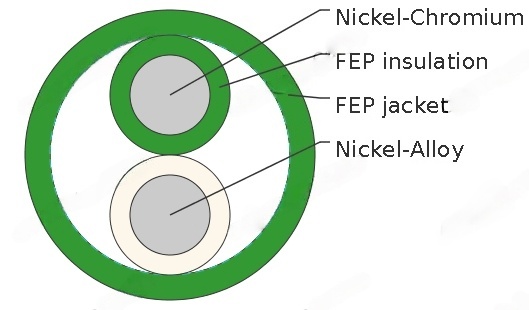

Construction

Solid or stranded thermocouple wire
Flame retardant extruded fluoropolymer FEP insulation
Parallel conductors
Flame retardant extruded fluoropolymer FEP jacket

Technical

Maximum temp up to +200o C, continuous 250°C
Minimum Bend Radius: insulation 3 x cable O
Overall 5 x cable O
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS

Properties

Excellent abrasion, chemical and moisture resistance
Service temperature of 200 o C
Low friction factor when pulled
Flame retardant; non-propagating in fire conditions

Product specification

Type K Thermocouple Wire

Chromel/Alumel Thermocouple Wire Type K

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
AWG	Conductor Cross Section mm^2	Insulation	Jacket	O.D.	Gross Weight kg/km
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36

Type K Thermocouple Wire - Extension Grade

Chromel/Alumel Extension Grade Thermocouple Wire Type K

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
AWG	Conductor Cross Section mm^2	Insulation	Jacket	O.D.	Gross Weight kg/km
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36

Type J Thermocouple Wire

Iron/Constantan Thermocouple Wire Type J

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
AWG	Conductor Cross Section mm^2	Insulation	Jacket	O.D.	Gross Weight kg/km
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36

Type J Thermocouple Wire - Extension Grade

Iron/Constantan Extension Grade Thermocouple Wire Type J

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
AWG	Conductor Cross Section mm^2	Insulation	Jacket	O.D.	Gross Weight kg/km
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36

Type T Thermocouple Wire

Copper/Constantan Thermocouple Wire Type T

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
AWG	Conductor Cross Section mm^2	Insulation	Jacket	O.D.	Gross Weight kg/km
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36

Type T Thermocouple Wire - Extension Grade

Copper/Constantan Extension Grade Thermocouple Wire Type T

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
AWG	Conductor Cross Section mm^2	Insulation	Jacket	O.D.	Gross Weight kg/km
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36

Type E Thermocouple Wire

Chromel/Constantan Thermocouple Wire Type E

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
AWG	Conductor Cross Section mm^2	Insulation	Jacket	O.D.	Gross Weight kg/km
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36
