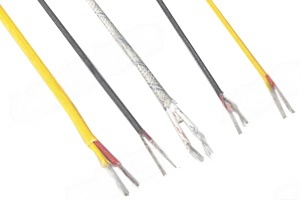

Fiberglass Insulated Thermocouple Wire and Extension Wire
Product application
Fiberglass Thermocouple Wire is ideal for general applications requiring moderate abrasion, moisture resistance, and wide temperature capabilities
Construction
Solid or stranded thermocouple wire
Braided fiberglass insulation
Parallel conductors
Tinned Copper
Braided fiberglass jacket
Technical
Continuous temperature rating: 400°C
Minimum Bend Radius: insulation 3 x cable O
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties
Good thermal durability and tensile strength
Service temperature up to 400°C
Good dielectric and electrical characteristics
Braided fiberglass insulation for abrasion resistance
Braided fiberglass jacket for additional flexibility and abrasion resistance

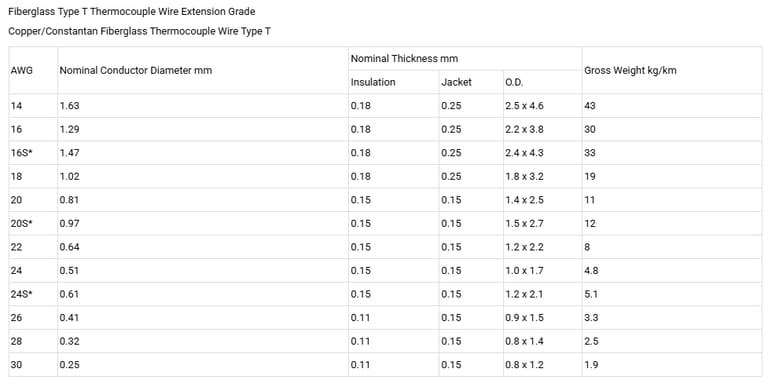

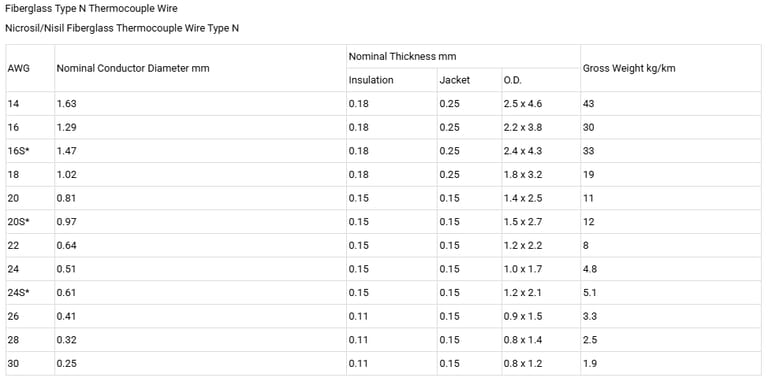

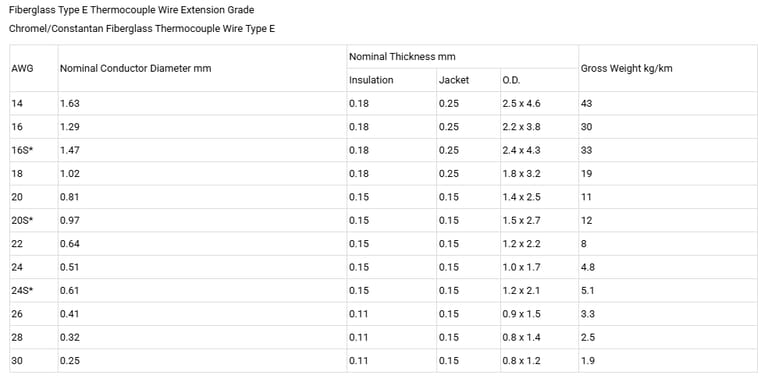

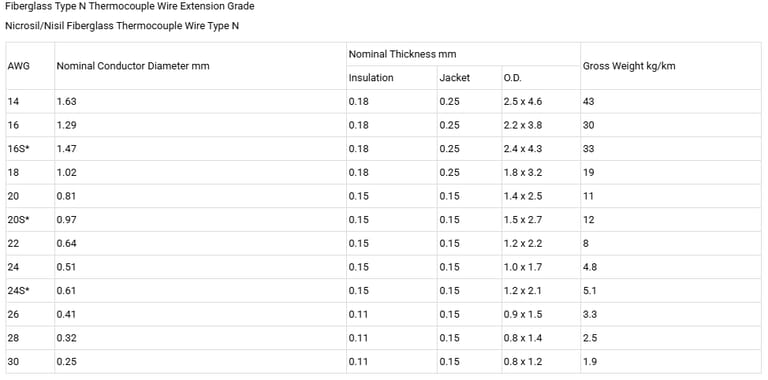

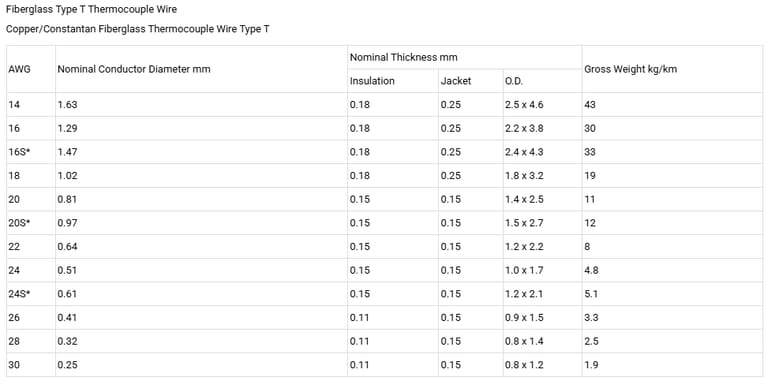

Product specification
Fiberglass Type K Thermocouple Wire
Chromel/Alumel Fiberglass Thermocouple Wire Type K
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type K Thermocouple Wire Extension Grade
Chromel/Alumel Fiberglass Thermocouple Wire Type K
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type J Thermocouple Wire
Iron/Constantan Fiberglass Thermocouple Wire Type J
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type J Thermocouple Wire Extension Grade
Iron/Constantan Fiberglass Thermocouple Wire Type J
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
