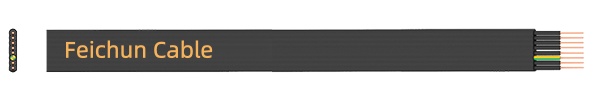

Flat Wire NGFLGOEU Cable
Category | Details |
|---|---|
Application | Connection of mobile parts in machine tools, conveyor plants, and large-scale equipment. Suitable for cable trolleys (bending in one level). Used in dry, damp, wet rooms, and outdoors. |
Voltage Rating | Uo/U: 300/500V |
Temperature Rating | Fixed: -40ºC to +90ºC |
Minimum Bending Radius | Fixed: 5 x overall diameter |
Conductor | Class 6 Extra Finely Stranded Bare Copper |
Insulation | EPR (Ethylene Propylene Rubber) |
Sheath | CR (Chloroprene Rubber) |
Core Identification | 4 cores: Green/Yellow, Brown, Black, Grey |
Sheath Colour | Black |
Standards | VDE 0250 T.809, VDE 0293 (HD 308) |
Feichun PART NO. | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL WIDTH OF CABLE mm | NOMINAL HEIGHT OF CABLE mm | NOMINAL WEIGHT kg/km | TENSILE STRENGTH N |
|---|---|---|---|---|---|---|
B6N040015BK | 4 | 1.5 | 17.5 | 6.2 | 200 | 90 |
B6N040025BK | 4 | 2.5 | 21.1 | 7.5 | 280 | 150 |
B6N040040BK | 4 | 4 | 26.1 | 9.1 | 410 | 240 |
B6N040060BK | 4 | 6 | 29.1 | 9.5 | 600 | 360 |
B6N04010BK | 4 | 10 | 33.1 | 11.1 | 800 | 600 |
B6N04016BK | 4 | 16 | 37.8 | 12.9 | 1150 | 960 |
B6N04025BK | 4 | 25 | 49.5 | 15.1 | 1700 | 1500 |
B6N04035BK | 4 | 35 | 54.9 | 17.1 | 2200 | 2100 |
B6N04050BK | 4 | 50 | 62.8 | 18.9 | 3000 | 1500 |
B6N04070BK | 4 | 70 | 71.2 | 22.1 | 3910 | 4200 |
B6N04095BK | 4 | 95 | 79.8 | 24.8 | 5300 | 5700 |
B6N04120BK | 4 | 120 | 85.8 | 27.2 | 6400 | 7200 |
B6N050015BK | 5 | 1.5 | 21.5 | 6.2 | 240 | 112 |
B6N050025BK | 5 | 2.5 | 27.1 | 7.5 | 332 | 187 |
B6N050040BK | 5 | 4 | 32.1 | 9.1 | 560 | 300 |
B6N050060BK | 5 | 6 | 35.1 | 9.5 | 650 | 450 |
B6N05010BK | 5 | 10 | 44.1 | 11.1 | 1135 | 750 |
B6N05016BK | 5 | 16 | 49.8 | 12.9 | 1450 | 1200 |
B6N05025BK | 5 | 25 | 59.8 | 16.1 | 2200 | 1875 |
B6N070015BK | 7 | 1.5 | 29.1 | 6.2 | 360 | 157 |
B6N070025BK | 7 | 2.5 | 34.9 | 7.5 | 520 | 262 |
B6N070040BK | 7 | 4 | 41.9 | 9.1 | 700 | 420 |
B6N070060BK | 7 | 6 | 42.1 | 9.5 | 850 | 630 |
B6N07025BK | 7 | 25 | 79.7 | 16.1 | 2930 | 2625 |
B6N07035BK | 7 | 35 | 88.2 | 17.1 | 3820 | 3675 |
B6N080015BK | 8 | 1.5 | 31.5 | 6.2 | 370 | 180 |
B6N080025BK | 8 | 2.5 | 39.1 | 7.5 | 550 | 300 |
B6N100015BK | 10 | 1.5 | 39.9 | 6.5 | 460 | 225 |
B6N100025BK | 10 | 2.5 | 47.9 | 8.1 | 680 | 375 |
B6N120015BK | 12 | 1.5 | 47.1 | 6.5 | 620 | 270 |
B6N120025BK | 12 | 2.5 | 56.1 | 8.1 | 800 | 450 |
B6N160015BK | 16 | 1.5 | 4.2 | 6.5 | 900 | 360 |
B6N240015BK | 24 | 1.5 | 55.1 | 12.5 | 1300 | 540 |
B6N240025BK | 24 | 2.5 | 68.2 | 16.2 | 1480 | 900 |
Nominal Cross Sectional Area (mm²) | Conductor Resistance (Ω/km) | Ampacity in Air at 30ºC (A) |
|---|---|---|
1.5 | 13.3 | 23 |
2.5 | 7.98 | 31 |
4 | 4.95 | 42 |
6 | 3.3 | 54 |
10 | 1.91 | 75 |
16 | 1.21 | 100 |
25 | 0.78 | 127 |
35 | 0.554 | 158 |
50 | 0.386 | 192 |
70 | 0.272 | 246 |
95 | 0.206 | 298 |
120 | 0.129 | 346 |
In the pulsating heart of modern industry, where machines hum relentlessly and conveyors snake through vast facilities, the unsung hero is often the cable that powers it all. Enter the Flat Wire NGFLGOEU Cable—a specialized flat cable engineered for extreme flexibility and resilience. This innovative flat cable, with its extra finely stranded bare copper conductors and dual-layer rubber construction, is transforming how industries handle power transmission in dynamic, high-stress environments. As South Africa's mining and manufacturing sectors surge forward in 2025, amid a 3.7% quarterly growth in mining and investments in resilient infrastructure, the NGFLGOEU stands out as a key enabler for efficient operations.
Advantages of the Flat Wire NGFLGOEU Cable:
In a market flooded with round power cables, the NGFLGOEU's flat cable design offers distinct edges. First, its flat profile enables tighter stacking in cable trolleys—up to 30% more efficient space utilization—reducing the footprint in overhead festoon systems for conveyor plants. The extra fine stranding minimizes internal stress during millions of flex cycles, extending service life by 2-3 times compared to Class 2 conductors.
Durability is another hallmark. The CR sheath's oil, UV, and ozone resistance suits it for South Africa's dusty mining pits and coastal humidity, where standard PVC cables degrade prematurely. Flame retardancy adds a safety layer, critical in explosive atmospheres. Weight savings—e.g., 200 kg/km for a 4-core 1.5 mm²—lower installation costs and strain on support structures.
Economically, its tensile strength (up to 7200 N) supports heavier loads without elongation, cutting replacement frequency. Environmentally, the robust EPR/CR combo reduces e-waste, aligning with 2025 sustainability trends in African manufacturing.
Usage Scenarios:
The NGFLGOEU thrives in scenarios demanding one-plane bending, like cable trolleys on overhead cranes or festoon systems in large-scale equipment. In machine tools, it connects mobile heads to fixed power sources, enduring 10x diameter bends without signal loss. Conveyor plants in warehouses or ports use it for drag chains, where the flat cable's low profile prevents snags.
Outdoors, its -40°C to +90°C fixed rating handles South African winters and summers, from dry inland factories to wet coastal facilities. In damp rooms, like food processing, the EPR insulation prevents moisture ingress, ensuring hygienic power transmission.
For high-core counts (up to 24 cores), it's ideal for multi-circuit control in automated lines, with core identification streamlining troubleshooting.
Frequently Asked Questions: Demystifying the Flat Wire NGFLGOEU Cable
Q: What makes the NGFLGOEU different from round flat cables?
A: Its flat form cable design optimizes one-plane bending, with a width-to-height ratio up to 10:1, versus round cables' omnidirectional flex. This reduces shear forces in trolleys by 25%.
Q: Is it suitable for South African outdoor mining?
A: Absolutely—UV/ozone-resistant CR sheath and -35°C flexed rating handle harsh conditions, as proven in Mpumalanga deployments.
Q: How does bending radius affect installation?
A: Fixed at 5x diameter for static runs; moving at 10x for dynamics. Exceeding this risks EPR insulation fatigue.
Q: What's the ampacity for a 25 mm² core?
A: 127 A in air at 30°C, with 0.78 Ω/km resistance—ideal for high-power conveyors.
Q: Does it comply with local standards?
A: Yes, VDE/IEC alignments meet SANS equivalents, plus SABS for flame/oil tests.
Q: Can it handle multi-core control signals?
A: Up to 24 cores for power/control hybrid, with numbered identification for easy splicing.
The Flat Wire NGFLGOEU Cable isn't just a flat cable—it's a strategic asset for industries grappling with motion, environment, and efficiency. With specs like Class 6 copper, EPR/CR build, and robust dimensions, it delivers advantages in durability and cost over legacy options. In South Africa's 2025 renaissance—fueled by mining revival and manufacturing innovation—its applications in cable trolleys and festoons are indispensable.
As global cable markets grow at 5.5% CAGR in South Africa, investing in NGFLGOEU means future-proofing operations. Whether upgrading a conveyor or fortifying a mine, this flat cable powers progress—one bend at a time.
