Flexible VSD/EMC Cables, 0.6/1kV

Application

These cables are used for applications that require Electromagnetic Compatibilit (EMC), to minimise any interference or disturbance, propagation and reception of electromagnetic energy with reference to unwanted effects, and suitable for Variable Speed Drive equipment or other application requiring screened cable.

Standard

AS/NZS 5000.1
AS/NZS 3808
AS/NZS 1125

Construction

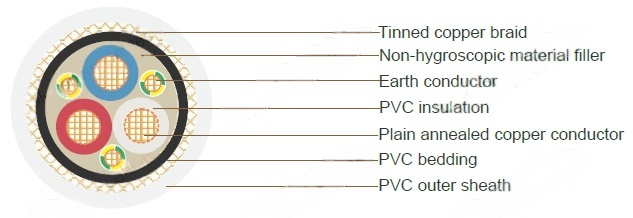

TYPE 1

Conductor	Plain annealed copper, class 5 strands
Insulation	Flame retardant polyvinyl chloride PVC V75
Insulation colour:	3 cores + E: Red, White, Blue + Green/Yellow 4 cores + E: Red, White, Blue, Black + Green/Yellow
Filler:	Non-hygroscopic material
Bedding:	Flame retardant polyvinyl chloride PVC V75
Screen:	Tinned annealed copper braid
Sheath:	Flame retardant polyvinyl chloride PVC V75
Sheath colour:	Transparent

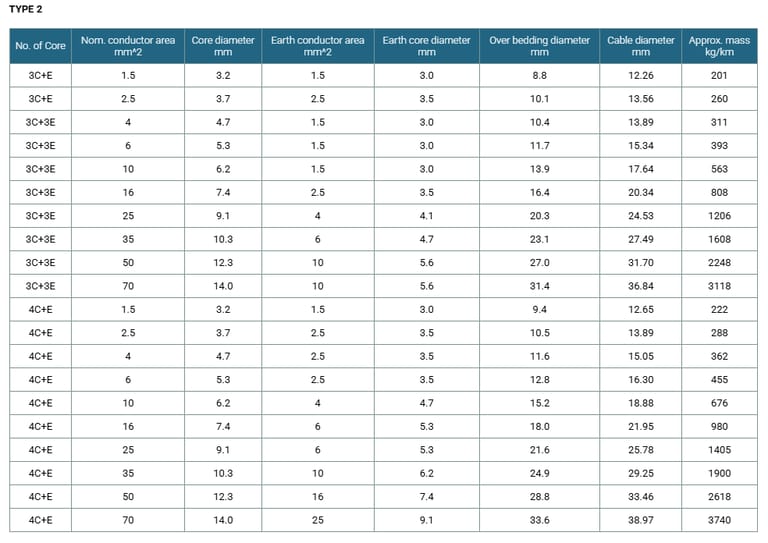

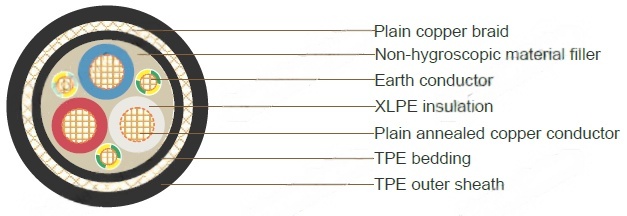

TYPE 2

Conductor	Plain annealed copper, class 5 strands
Insulation	Cross -linked polyethylene (XLPE)
Insulation colour:	3 cores + E: Red, White, Blue + Green/Yellow 4 cores + E: Red, White, Blue, Black + Green/Yellow
Filler:	Non-hygroscopic material
Bedding:	Thermoplastic elastomer (TPE)
Screen:	Plain annealed copper braid
Sheath:	Thermoplastic elastomer (TPE)
Sheath colour:	Black

Technical Characteristics

ELECTRICALCHARACTERISTICS

Nom. conductor area mm²	Max. wires Dia. Fine- wire strand mm	DC resistance at 20ºC Ohm/km	AC resistance at 75ºC Ohm/km	AC resistance at 90ºC Ohm/km	3-Phase at 75ºC Voltage Drop mV/A.m	3-Phase at 90ºC Voltage Drop mV/A.m	Reactance Type 1 cable Ohm/km	Reactance Type 2 cable Ohm/km
1.5	0.25	13.3	16.2	17.0	28.0	29.4	0.118	0.118
2.5	0.25	7.98	9.7	10.2	16.8	17.6	0.112	0.112
4	0.30	4.95	6.02	6.31	10.4	10.9	0.108	0.108
6	0.30	3.30	4.01	4.21	6.95	7.29	0.104	0.104
10	0.40	1.91	2.41	2.52	4.17	4.38	0.0982	0.102
16	0.40	1.21	1.47	1.54	2.55	2.68	0.0937	0.0970
25	0.40	0.780	0.889	0.932	1.55	1.62	0.0895	0.0921
35	0.40	0.554	0.652	0.684	1.14	1.19	-	0.0895
50	0.40	0.386	0.490	0.513	0.862	0.902	-	0.0893
70	0.50	0.272	0.325	0.340	0.581	0.608	-	0.0859

CURRENT RATING

conductor area	2 core a nd Earth				3 core and earth,		4 core and earth
	Protected from sun		Exposed to sun		Protected from sun		Exposed to sun
	V75	XLPE	V75	XLPE	V75	XLPE	V75	XLPE
mm²	A	A	A	A	A	A	A	A
6	44	54	34	43	38	46	29	37
10	60	74	46	58	52	63	39	50
16	81	99	60	77	70	85	51	66
25	110	135	80	105	95	115	68	88
35	135	165	95	125	115	140	81	105
50	160	195	110	145	140	165	96	125
70	205	250	140	185	175	215	120	155
