FRA 213 URM SW4
Application and Description
These cables are designed for flexible installations, inside and outside railway rolling stock.
Standards
DIN 5510-2

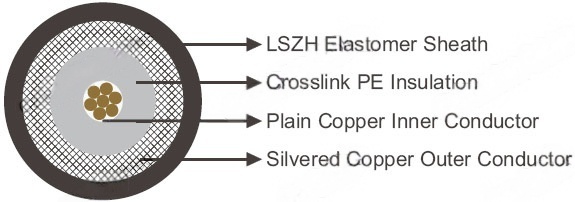

Construction
Inner conductor: Plain copper
Insulation: Crosslink PE (PEX)
Outer conductor: Silver plated copper braid
Sheath: LSZH Elastomer
Electrical Characteristics at 20℃
Impedance | Ω | 50+/-2 |
|---|---|---|
Nominal Capacitance | pF/m | 101 |
Minimum Insulation Resistance | 100000 | |
Inner Conductor Resistance | MΩ/km | 5.74 |
Outer Conductor Resistance | MΩ/km | 3.7 |
Attenuation |
|
|
@10MHz | dB/100m | 2 |
@50MHz | dB/100m | 4 |
@100MHz | dB/100m | 6 |
@150MHz | dB/100m | 8 |
@200MHz | dB/100m | 9 |
@300MHz | dB/100m | 12 |
@400MHz | dB/100m | 14 |
@450MHz | dB/100m | 15 |
@500MHz | dB/100m | 16 |
@600MHz | dB/100m | 18 |
@800MHz | dB/100m | 22 |
@850MHz | dB/100m | 23 |
@900MHz | dB/100m | 24 |
@950MHz | dB/100m | 25 |
@1000MHz | dB/100m | 26 |
@1800MHz | dB/100m | 40 |
@1900MHz | dB/100m | 41 |
@2000MHz | dB/100m | 43 |
Velocity of propagation | % | 66 |
Mechanical and Thermal Properties
Minimum Bending Radius | 50mm (static) |
Temperature Range | -40℃～ +105℃ |
Technical Data
Conductor Construction | Nominal Inner Conductor Diameter | Nominal Outer Conductor Diameter | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
No/mm | mm | mm | mm | kg/km |
2.25 | 8.15 | 10.3 | 161 |
