Fueling South Africa’s Most Demanding Jobs: An In-Depth Look at (N)SSCHÖU-J 0.6/1kV Heavy-Duty Rubber Cables

Introduction

South Africa is home to some of the world’s most challenging industrial and mining environments. From the gold-rich tunnels of Gauteng to the platinum belt in North West, and from surface mining operations in Mpumalanga to heavy industrial plants across the Northern Cape, the nation demands power solutions that can withstand extreme conditions. Dust, water, chemical exposure, mechanical abrasion, and high temperatures are everyday challenges, yet reliable electricity remains the lifeline of these operations.

In these environments, the stakes are high. Equipment downtime not only disrupts production but can also compromise safety, potentially putting lives at risk. This is where robust power distribution solutions, specifically heavy-duty mining and industrial cables, play a pivotal role. Among these, the (N)SSCHÖU-J 0.6/1kV stands out as a versatile, heavy-duty rubber cable engineered to deliver exceptional performance in harsh conditions.

Designed for flexibility, mechanical resilience, and long-term durability, the (N)SSCHÖU-J cable has become a cornerstone of South African industrial power delivery. Its applications range from underground mining operations and drilling rigs to surface conveyors and industrial automation systems. By combining robust construction with high visibility, flame retardance, and chemical resistance, it provides a reliable solution for operators seeking safe, flexible, and resilient power transmission.

In this article, we explore the unique properties of the (N)SSCHÖU-J 0.6/1kV cable, delve into its construction and specifications, and highlight its relevance to South Africa’s industrial and mining sectors. Real-world case studies illustrate how these cables keep the nation’s toughest jobs running efficiently and safely.

What Makes (N)SSCHÖU-J Unique?

The (N)SSCHÖU-J 0.6/1kV cable distinguishes itself through its combination of flexibility, mechanical robustness, and environmental resilience. It is not merely a cable but an engineered solution designed for dynamic operations where standard cables fail.

Heavy-Duty Flexibility: At the heart of the (N)SSCHÖU-J is its Class 5 tinned copper conductor, enabling maximum flexibility for both static and dynamic applications. This makes it ideal for moving machinery, drilling rigs, and trailing equipment in mines or industrial plants. Its flexibility ensures that repeated bending and mechanical stress do not compromise the cable’s integrity, extending service life even under constant movement.

High Visibility: Safety in industrial and underground environments is paramount. The bright yellow rubber sheath ensures the cable remains visible even in dimly lit tunnels or cluttered industrial sites, minimizing trip hazards and accidental damage.

Resistance to Harsh Conditions:

• Flame Retardant: The outer rubber sheath is designed to self-extinguish in case of fire, complying with IEC/EN 60332-1-2 standards.

• UV, Oil, and Chemical Resistance: Industrial and mining environments expose cables to sunlight, lubricants, oils, and corrosive chemicals. The (N)SSCHÖU-J resists degradation, ensuring operational reliability.

• Abrasion and Tear Resistance: Heavy machinery, sharp edges, and material handling can damage weaker cables. The rubber sheathing withstands abrasion and tearing, even under frequent flexing.

EMC Protection: Modern mining and industrial equipment often rely on frequency-controlled drives. The (N)SSCHÖU-J includes a tinned copper wire braid (TCWB) that shields against electromagnetic interference, ensuring stable operation of sensitive devices.

Permanent Submersion: One standout feature is its ability to remain permanently submerged in fresh, salt, oily, or sewage-contaminated water up to 100 meters. This makes it invaluable for wet mining tunnels, stormwater pumping stations, and water treatment facilities.

South African Relevance: In Gauteng, Mpumalanga, and Northern Cape, mining operations face harsh temperatures, wet conditions, and high dust levels. The (N)SSCHÖU-J has proven its adaptability across these regions, providing a reliable power backbone for both surface and underground operations.

Cable Construction & Materials

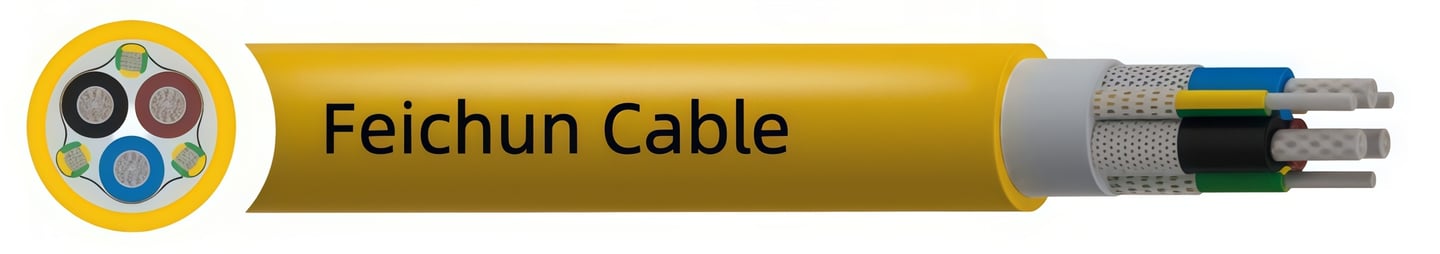

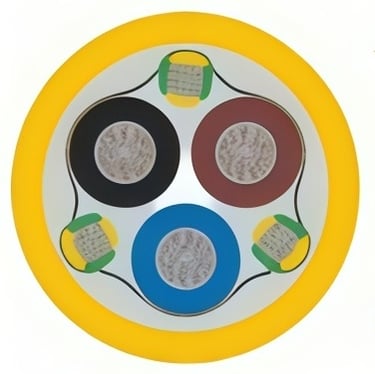

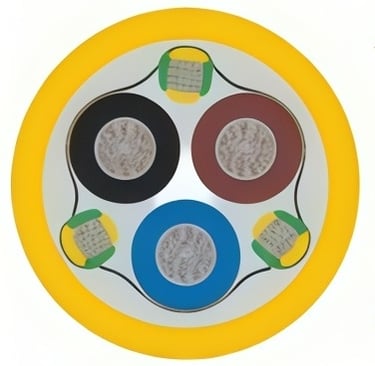

The performance of the (N)SSCHÖU-J cable is a direct result of its meticulous design and high-quality materials. Its construction balances mechanical strength, electrical safety, and environmental resilience.

Phase Conductor:
The three phase conductors are Class 5 flexible tinned copper, providing excellent conductivity while allowing dynamic bending without fracturing. Tinning prevents corrosion, particularly in wet or chemically aggressive environments.

Earth Conductor:
Similarly, the three earth conductors are Class 5 tinned copper, ensuring a reliable ground path essential for safety in high-power and high-voltage installations.

Insulation:
Each conductor is insulated with a rubber compound specifically formulated for both static and dynamic applications. This rubber withstands mechanical stress, abrasion, and temperature fluctuations, ensuring stable insulation even in flexing operations.

Screen:
A Tinned Copper Wire Braid (TCWB) surrounds the insulated cores, providing:

• EMC shielding for frequency-controlled drives.

• Mechanical reinforcement, adding strength against impacts.

Inner & Outer Sheath:
The cable is encased in a durable rubber sheath, with the outer layer colored yellow for high visibility. The sheath protects against UV radiation, oils, grease, abrasion, tearing, and flame.

Benefits of Each Layer:

• Conductors: Corrosion resistance, flexibility, and high current carrying capacity.

• Insulation: Prevents electrical leakage, withstands thermal stress, and maintains flexibility.

• Screen: Reduces electromagnetic interference, enhances mechanical protection.

• Sheath: Chemical, flame, UV, and abrasion resistance; ensures longevity in harsh environments.

Comparison with Local Mining Cables:
Compared with SANS Type 41 and Type 61A cables, the (N)SSCHÖU-J offers greater submersion capability, enhanced flexibility, and EMC protection, making it particularly suitable for South Africa’s mixed surface and underground mining operations.

Technical Specifications & Electrical Parameters

Voltage Rating:

• Uo/U: 0.6/1kV

• Maximum AC: 0.7/1.2kV

• Maximum DC: 1.8kV

Temperature Range:

• Static: -40°C to +80°C

• Flexed: -25°C to +80°C

• Short-circuit: up to 250°C

Bending Radius:

• Fixed installation: 4 × overall diameter (OD)

• Flexed installation: 5 × OD

Number of Cores: 3 phase + 3 earth

• Phase conductor sizes: 16–240 mm²

Current Carrying Capacity:

• Laying on floor, free in air, or reeled configurations.

• Example: a 50 mm² cable can carry 202 A on the floor, 212 A in free air, and 162 A when reeled.

Voltage Drop:

• Calculated based on conductor size and power factor.

• Example: 50 mm² at power factor 0.9 shows 0.83 V drop per 100m, ensuring minimal energy loss for long runs.

Derating Factors:

• Ambient temperatures above 30°C reduce current capacity. A 50 mm² cable at 50°C de-rates by approximately 18%, highlighting the importance of environmental consideration during installation.

South African Example:
In a platinum mine in North West, conveyor systems require continuous operation in wet tunnels. Using a 70 mm² (N)SSCHÖU-J cable, engineers calculated the necessary current capacity for a 100 m run, ensuring minimal voltage drop while maintaining safety margins.

Standards & Compliance

The (N)SSCHÖU-J cable adheres to multiple international and local standards, ensuring both safety and regulatory compliance:

• VDE 0250 Part 812: General requirements for flexible power cables.

• VDE 0295, EN 60228: Conductor classification and quality standards.

• Flame Retardant: IEC/EN 60332-1-2.

South African Compliance:
The cable aligns with NRCS regulations, which is crucial for:

• Ensuring equipment insurance validity.

• Maintaining compliance during safety audits.

• Meeting operational safety standards required for mines and industrial facilities.

By adhering to these standards, the (N)SSCHÖU-J provides peace of mind to operators, ensuring reliable power delivery and regulatory compliance.

Applications in South Africa

The versatility of the (N)SSCHÖU-J makes it ideal for diverse sectors:

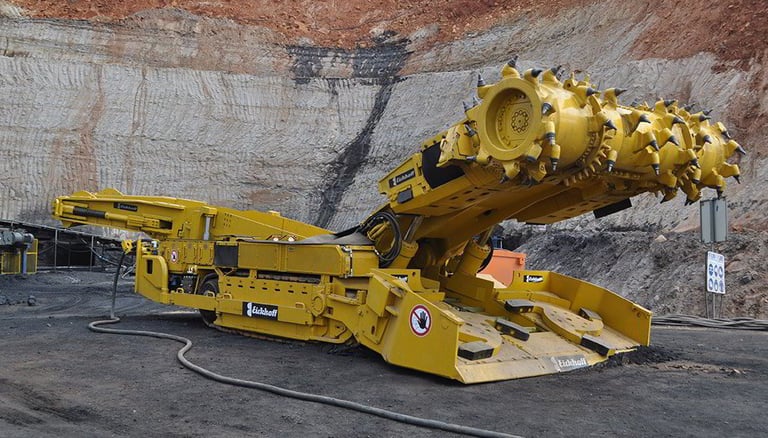

Mining Applications:

• Drilling Rigs: Flexible connection for mobile rigs in platinum and gold mines.

• Tunnelling Equipment: Safe power delivery in wet, confined spaces.

• Material Handling: Temporary connections for conveyors, cranes, and hoists.

Industrial Applications:

• Factories and workshops requiring robust power to heavy machinery.

• Frequency converter-controlled drives benefit from EMC shielding.

Surface Operations:

• Open-cast mining: trailing cables for mobile equipment.

• Construction and infrastructure projects in harsh outdoor environments.

Submerged Applications:

• Water treatment plants, dams, stormwater pumping, and wet mining operations.

Case Study 1 – Gauteng Gold Mine:
A conveyor system operating in wet tunnels uses 95 mm² (N)SSCHÖU-J cables. The cable's resistance to abrasion and permanent submersion ensures uninterrupted operation even in sewage-contaminated water, reducing downtime significantly.

Case Study 2 – North West Platinum Mine:
Mobile drilling rigs require flexible, high-current cables. 70 mm² (N)SSCHÖU-J cables provide reliable dynamic connections, with high visibility improving worker safety in underground operations.

Installation Guidelines & Best Practices

Proper installation ensures longevity and performance:

• Bending Radius: Maintain 4×OD for fixed installations and 5×OD for flexible runs.

• Protection: Avoid sharp edges, chemical exposure, and mechanical abrasion.

• Wet Conditions: Cable is designed for permanent submersion, but connections must remain dry and secure.

• South African Field Tips:

  • Sunlight exposure in open-cast operations can accelerate UV degradation—route cables under protective covers.

  • Dusty tunnels may cause abrasion—regular inspection is critical.

  • Frequent movement of machinery demands high flexibility—choose adequate conductor size for minimal voltage drop.

Advantages Over Other Cables

Compared with Type 41 and Type 61A cables, the (N)SSCHÖU-J offers:

• Superior flexibility for dynamic applications.

• Permanent submersion capability up to 100m.

• Flame retardance meeting international standards.

• Mechanical durability under repeated bending and movement.

• High visibility enhances safety in low-light environments.

• EMC protection ensures compatibility with sensitive equipment.

• Long service life reduces operational costs and downtime.

Common Issues & FAQ

Q: Can (N)SSCHÖU-J be used for permanent underwater installations?
A: Yes, up to 100 meters in clean, salt, or contaminated water.

Q: What is the maximum current for a 50 mm² cable in free air?
A: 212 Amps.

Q: Can the cable be exposed to oils and chemicals?
A: Yes, the rubber sheath is resistant to oils, greases, and chemical exposure.

Q: Can it be used with frequency converters?
A: Yes, the TCWB provides EMC protection.

Q: What maintenance is required in South African mining conditions?
A: Regular visual inspection for cuts, abrasion, or sheath damage. Replace damaged sections promptly to avoid operational hazards.

Conclusion

The (N)SSCHÖU-J 0.6/1kV cable exemplifies heavy-duty engineering designed for the most challenging South African industrial and mining environments. With its combination of flexibility, mechanical resilience, submersion capability, and safety compliance, it ensures continuous, reliable power delivery while enhancing operational safety.

For operators seeking robust, long-lasting, and highly visible power solutions, the (N)SSCHÖU-J stands as a trusted choice. Consulting technical specialists ensures optimal sizing, installation, and application, guaranteeing the cable meets the demands of South Africa’s toughest jobs.
