H03RT-H
H03RT-H Harmonized Code Industrial Cable: Tailored for Indoor Household Appliances like Electric Irons and Saucepans
H03RT-H
Application and Description
These cables are suitable for power connecting wire and complete lines between indoor household appliances, generally used for electric iron or electric saucepan. Not suitable for outdoor use nor power supply to electrical tools.Ozone, oxygen, UV rays and heat resistant.
Standard and Approval
HD22.14
ROHS compliant

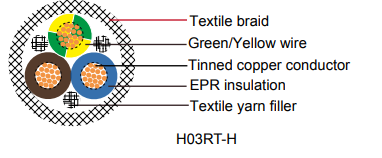

Cable Construction
Flexible bare or tinned copper strand conductor acc. to DIN VDE 0295 class 5. IEC 60228 class 5 |
EPR insulation type E14 of HD22.1 |
Color coded to VDE 0293-308/HD 308 / UNE 21089-1(3 conductors and above with yellow/green wire) |
Textile yarn filler |
Textile braid of HD22.1 |
Technical Characteristics
WORKING VOLTAGE | 300/300 V |
|---|---|
TEST VOLTAGE | 2000V |
MINIMUM BENDING RADIUS | - 25ºC to + 60ºC |
TEMPERATURE RANGE | 3 x Ø |
SHORT CIRCUIT TEMPERATURE | 200ºC |
Cable Parameter
AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|---|
# X MM² | MM | KG/KM | KG/KM | |
18(24/32) | 0.80 | 6.30±0.20 | 36 | |
17(32/32) | 0.80 | 6.80±0.20 | 52 | |
16(30/30) | 0.80 | 7.20±0.20 | 42 | |
18(24/32) | 0.80 | 6.80±0.20 | 60 | |
17(32/32) | 0.80 | 7.20±0.20 | 54 | |
16(30/30) | 0.80 | 7.80±0.20 | 74 |
What is the H03RT-H Cable?
The H03RT-H is a flexible, harmonized code cable designed for low-voltage applications, primarily for connecting indoor household appliances. Its robust construction makes it resistant to ozone, oxygen, ultraviolet (UV) rays, and heat, ensuring durability in demanding environments. However, it is not suitable for outdoor use or for powering electrical tools, as its design prioritizes flexibility and safety for specific indoor applications.
Key Features of the H03RT-H Cable
Voltage Rating: 300/300 V, ideal for low-voltage household appliances.
Temperature Range: Operates reliably between -25°C and +60°C.
Insulation: Ethylene Propylene Rubber (EPR) insulation, type EI4, as per HD22.1 standards.
Conductor: Flexible bare or tinned copper strand conductor, compliant with DIN VDE 0295 Class 5 and IEC 60228 Class 5.
Construction: Includes a textile braid and yarn filler for added strength and flexibility.
Standards: Meets HD22.14 and RoHS compliance for environmental safety.
Harmonized Code and Standards
The "H" in H03RT-H stands for harmonized, indicating that the cable adheres to European standards for electrical wiring. Harmonized cables are designed to meet consistent technical specifications across multiple countries, ensuring safety and interoperability. The H03RT-H complies with the HD22.14 standard, which outlines requirements for rubber-insulated cables used in appliances.
Additionally, the cable is RoHS compliant, meaning it is free from hazardous substances like lead, mercury, and cadmium, aligning with global environmental regulations. The color coding of the H03RT-H follows VDE 0293-308, HD 308, and UNE 21089-1 standards, ensuring proper identification of conductors, especially in configurations with three or more conductors that include a yellow/green grounding wire.
Applications of the H03RT-H Cable
The H03RT-H cable is specifically designed for indoor household appliances, such as electric irons, saucepans, and other small electrical devices. Its flexibility and resistance to heat and environmental factors make it ideal for appliances that generate moderate heat or require frequent movement. However, it is not suitable for outdoor use or heavy-duty electrical tools, as its design prioritizes lightweight flexibility over ruggedness.
In South Africa, the H03RT-H cable is widely used in domestic settings and small-scale industrial applications. Its compliance with international standards ensures it meets the safety requirements of South African households and businesses.
Frequently Asked Questions (FAQs)
1. What is the H03RT-H cable used for?
The H03RT-H cable is used for connecting indoor household appliances, such as electric irons and saucepans. It is designed for low-voltage applications and is not suitable for outdoor use or heavy electrical tools.
2. Is the H03RT-H cable safe for high-temperature environments?
Yes, the H03RT-H cable is heat-resistant and can operate in temperatures up to 60°C, with a short-circuit temperature tolerance of 200°C. Its EPR insulation ensures durability in high-heat conditions.
3. Does the H03RT-H cable comply with environmental regulations?
Yes, the H03RT-H cable is RoHS compliant, meaning it is free from hazardous substances and aligns with global and South African environmental standards.
4. Can the H03RT-H cable be used outdoors?
No, the H03RT-H cable is designed for indoor use only and is not suitable for outdoor environments or heavy-duty electrical tools.
5. How does the H03RT-H cable support South African industries?
In South Africa, the H03RT-H cable is used in appliance manufacturing, repair, and rural electrification projects. Its compliance with international standards ensures safety and reliability, while its flexibility supports innovative appliance designs.
The H03RT-H harmonized code industrial cable is a vital component in the world of household appliances, offering flexibility, heat resistance, and compliance with international standards. In South Africa, its applications in manufacturing, rural electrification, and appliance repair highlight its importance in addressing local challenges. By understanding its technical specifications, standards, and real-world uses, consumers and businesses can make informed decisions about incorporating this reliable cable into their projects. As South Africa continues to advance its electrical infrastructure and embrace sustainable technologies, the H03RT-H cable will remain a key player in powering the nation’s homes.
