H03V2V2-F/H03V2V2H2-F
Understanding H03V2V2-F/H03V2V2H2-F German Standard (VDE) Industrial Cable
H03V2V2-F/H03V2V2H2-F
Application and Description
These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools.
The maximum conductor temperature in normal use:90°C.While high temperature use, skin contact must be avoided.
Standard and Approval
CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

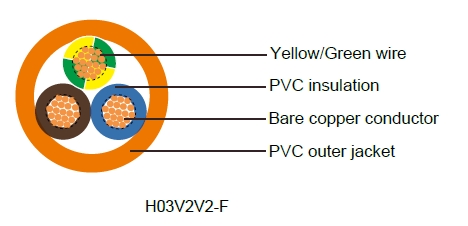

Cable Construction
Bare copper fine wire conductor |
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
PVC core insulation TI3 to VDE-0281 Part 1 |
Color coded to VDE-0293-308 |
PVC outer jacket TM3 |
Technical Characteristics
Working voltage | 300/300 volts |
Test voltage | 3000 volts |
Flexing bending radius | 15 x O |
Static bending radius | 4 x O |
Flexing temperature | +5oC to +90oC |
Static temperature | -40oC to +90oC |
Short circuit temperature | +160oC |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km |
H03V2V2-F | ||||||
20(16/32) | 0.5 | 0.6 | 5 | 9.6 | 38 | |
20(16/32) | 0.5 | 0.6 | 5.4 | 14.4 | 45 | |
20(16/32) | 0.5 | 0.6 | 5.8 | 19.2 | 55 | |
18(24/32) | 0.5 | 0.6 | 5.5 | 14.4 | 46 | |
18(24/32) | 0.5 | 0.6 | 6 | 21.6 | 59 | |
18(24/32) | 0.5 | 0.6 | 6.5 | 28.8 | 72 | |
H03V2V2H2-F | ||||||
20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 3.2 x 5.2 | 9.7 | 32 |
18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 3.4 x 5.6 | 14.4 | 35 |
What Are H03V2V2-F and H03V2V2H2-F Cables?
The H03V2V2-F and H03V2V2H2-F cables are flexible, multi-core cables designed for low-voltage applications, specifically rated at 300/300 volts. The designation "H" indicates harmonized European standards, while "03" refers to the voltage rating, "V2" denotes heat-resistant PVC (polyvinyl chloride) insulation, and "F" stands for flexible conductors. The additional "H2" in H03V2V2H2-F indicates a flat cable configuration, as opposed to the round configuration of H03V2V2-F.
These cables are engineered for light-duty applications, such as powering domestic appliances, office equipment, and lighting systems. Their heat-resistant properties, with a maximum conductor temperature of 90°C, make them ideal for environments with elevated temperatures, such as kitchens or areas near lighting fixtures. However, they are not suitable for outdoor use, industrial machinery, or agricultural settings due to their limited mechanical robustness.
Standards and Approvals
These cables comply with rigorous European standards, ensuring safety and performance:
CEI 20-20/12: Specifies construction and performance requirements.
CEI 20-35 (EN 60332-1): Ensures flame retardancy.
CEI 20-37 (EN 50267): Addresses low emission of corrosive gases.
EN 50265-2-1: Tests for flame resistance under specific conditions.
These standards align with South Africa’s adoption of international norms, such as SANS/IEC 60227, for low-voltage cables, ensuring compatibility with local regulations.
Applications in Domestic and High-Temperature Settings
The H03V2V2-F and H03V2V2H2-F cables are tailored for light-duty applications where flexibility and heat resistance are paramount. Key uses include:
Domestic Appliances: Powering kitchen appliances like toasters, blenders, and microwaves, where high temperatures may occur.
Office Equipment: Connecting computers, printers, and other devices requiring flexible cabling.
Lighting Systems: Used in fixtures where elevated temperatures are common, though direct contact with hot surfaces must be avoided.
Portable Apparatuses: Ideal for lightweight, portable devices due to their flexibility and compact design.
However, these cables are not suitable for:
Outdoor environments, as they lack weatherproofing.
Heavy industrial or agricultural settings, where more robust cables are required.
Direct contact with hot surfaces or radiation, to prevent insulation damage.
Frequently Asked Questions (FAQs)
1. What makes H03V2V2-F/H03V2V2H2-F cables different from other low-voltage cables?
These cables are specifically designed for flexibility and heat resistance, with a maximum conductor temperature of 90°C. Their PVC TI3 insulation and TM3 sheath provide enhanced durability in high-temperature environments, unlike standard low-voltage cables that may only withstand 70°C.
2. Can these cables be used outdoors?
No, they are unsuitable for outdoor use due to their lack of weatherproofing and UV resistance. For outdoor applications, cables like H07RN-F are recommended.
3. Are these cables compliant with South African standards?
While designed to VDE and IEC standards, they align with South Africa’s SANS/IEC 60227 for low-voltage cables, making them suitable for domestic use when installed per local regulations.
4. What is the difference between H03V2V2-F and H03V2V2H2-F?
The H03V2V2-F is a round cable, while the H03V2V2H2-F is flat, offering a more compact profile for space-constrained installations. Both share identical electrical and thermal properties.
5. How do these cables contribute to safety?
Their flame-retardant properties (IEC 60332.1) and high insulation resistance (20 MΩ x km) reduce fire risks and ensure reliable performance, critical in South Africa’s fire-prone informal settlements.
The H03V2V2-F and H03V2V2H2-F cables are specialized solutions for domestic and light industrial applications, offering flexibility, heat resistance, and compliance with stringent VDE and IEC standards. In South Africa, their role in safe, efficient electrical installations is increasingly relevant, from informal settlement upgrades to commercial kitchen retrofits. As the country continues to address energy and safety challenges, these cables provide a reliable, cost-effective option for low-voltage, high-temperature environments. By understanding their specifications and applications, stakeholders can make informed decisions to enhance electrical safety and efficiency.
