H03V2V2-F/H03V2V2H2-F
Application and Description
These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use: 90°C.While high
temperature use, skin contact must be avoided.
Standard and Approval
HD 21.12; HD 308 S2 DIN VDE 0281 part 1, part 12; DIN VDE 0293 part 308; DIN VDE 0295 CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

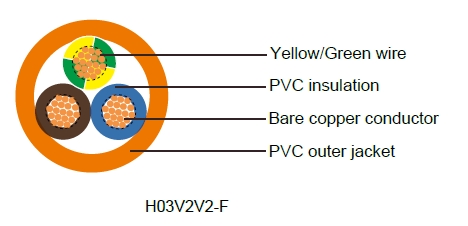

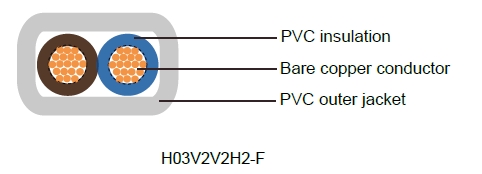

Cable Construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T13 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- PVC outer jacket TM3
Technical Characteristics
- Working voltage: 300/300 volts
- Test voltage: 3000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: +5º C to +90º C
- Static temperature: -40º C to +90º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Cable Parameter
AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² | NOMINAL THICKNESS OF INSULATION MM | NOMINAL THICKNESS OF SHEATH MM | NOMINAL OVERALL DIAMETER MM | NOMINAL COPPER WEIGHT KG/KM | NOMINAL WEIGHT KG/KM |
|---|---|---|---|---|---|---|
H03V2V2-F | ||||||
20(16/32) | 0.5 | 0.6 | 5 | 9.6 | 38 | |
20(16/32) | 0.5 | 0.6 | 5.4 | 14.4 | 45 | |
20(16/32) | 0.5 | 0.6 | 5.8 | 19.2 | 55 | |
18(24/32) | 0.5 | 0.6 | 5.5 | 14.4 | 46 | |
18(24/32) | 0.5 | 0.6 | 6 | 21.6 | 59 | |
18(24/32) | 0.5 | 0.6 | 6.5 | 28.8 | 72 | |
H03V2V2H2-F | ||||||
20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 3.2 x 5.2 | 9.7 | 32 |
18(24/32) | 2 x 0.75 | 0.5 | 0.3 | 3.4 x 5.6 | 14.4 | 35 |
Introduction to H03V2V2-F and H03V2V2H2-F Cables
In South Africa, where reliable and safe electrical systems are critical for homes, offices, and small businesses, choosing the right cabling is essential. The H03V2V2-F and H03V2V2H2-F cables are versatile, heat-resistant wiring solutions designed for light-duty applications. These cables are widely used in domestic and commercial settings, particularly in environments like kitchens and offices where high temperatures may be a concern. Their robust construction and compliance with international standards make them a trusted choice for safe and efficient electrical installations.
Applications in South Africa
The H03V2V2-F and H03V2V2H2-F cables are ideal for light-duty applications in domestic and commercial environments. Their heat-resistant properties make them suitable for:
Kitchens: Powering appliances like toasters, kettles, and microwaves, where high temperatures are common.
Offices: Connecting computers, printers, and lighting systems in small to medium-sized offices.
Lighting Systems: Used in fixtures exposed to elevated temperatures, provided there’s no direct contact with hot components.
Portable Appliances: Suitable for light, movable devices in homes and offices.
However, these cables are not suitable for:
Outdoor use, due to limited weather resistance.
Industrial or agricultural settings, where heavy-duty cables are required.
Non-domestic portable tools, which demand more robust wiring.
In South Africa, these cables are popular in urban homes in cities like Johannesburg, Cape Town, and Durban, as well as in small commercial setups like coffee shops and retail stores.
Advantages of H03V2V2-F and H03V2V2H2-F Cables
Heat Resistance: With a maximum conductor temperature of 90°C, these cables perform reliably in high-temperature environments like kitchens and lighting systems.
Flame Retardancy: Compliance with IEC 60332.1 ensures reduced fire risk, critical for safety in South African homes and offices.
Flexibility: The fine wire copper conductor and flexible PVC insulation allow easy installation in tight spaces.
Durability: The PVC outer jacket (TM3) protects against wear and tear, extending cable lifespan.
Compliance with Standards: Adherence to international standards ensures quality and safety, aligning with South African electrical regulations.
Compact Design: The H03V2V2H2-F’s flat profile is ideal for space-constrained installations, such as under carpets or along walls.
South African Case Studies
Case Study 1: Residential Kitchen Upgrade in Cape Town
A homeowner in Cape Town’s Sea Point area renovated their kitchen to include modern appliances like an induction stove and microwave. An electrician recommended H03V2V2-F cables (3 x 0.75 mm²) for wiring due to their heat resistance and compliance with South African safety standards (SANS). The cables were installed to power the appliances, ensuring safe operation in the high-temperature kitchen environment. The homeowner reported no electrical issues after two years, highlighting the cables’ reliability.
Case Study 2: Small Office Installation in Johannesburg
A small accounting firm in Sandton, Johannesburg, upgraded its office lighting to energy-efficient LED fixtures. The electrician used H03V2V2H2-F cables (2 x 0.50 mm²) for their flat design, which allowed discreet installation along walls. The flame-retardant properties provided peace of mind in the busy office, and the project complied with local regulations, ensuring safety and efficiency.
FAQs
Q1: What makes H03V2V2-F and H03V2V2H2-F cables suitable for South African homes?
These cables are heat-resistant (up to 90°C) and flame-retardant, making them ideal for kitchens and lighting systems. Their compliance with international standards ensures safety and reliability in South African homes.
Q2: Can these cables be used outdoors?
No, they are not suitable for outdoor use due to limited weather resistance. They are designed for indoor applications in domestic and light commercial settings.
Q3: What’s the difference between H03V2V2-F and H03V2V2H2-F cables?
The H03V2V2-F is a round cable, while the H03V2V2H2-F has a flat profile, making it suitable for space-constrained installations like under carpets or along walls.
Q4: Are these cables safe for high-temperature environments?
Yes, they can operate at temperatures up to 90°C, but skin contact should be avoided in high-temperature conditions to prevent burns.
Q5: Where can I purchase these cables in South Africa?
They are available from electrical suppliers like Voltex, ARB Electrical Wholesalers, and other retailers across South Africa. Always ensure the supplier provides cables meeting SANS and international standards.
Conclusion
The H03V2V2-F and H03V2V2H2-F cables are reliable, safe, and versatile solutions for South African homes and offices. Their heat resistance, flame-retardant properties, and compliance with international standards make them ideal for light-duty applications in kitchens, offices, and lighting systems. Whether you’re upgrading a home in Cape Town or outfitting a small business in Johannesburg, these cables offer a balance of safety, flexibility, and durability. For best results, consult a certified electrician to ensure proper installation and compliance with South African regulations.
