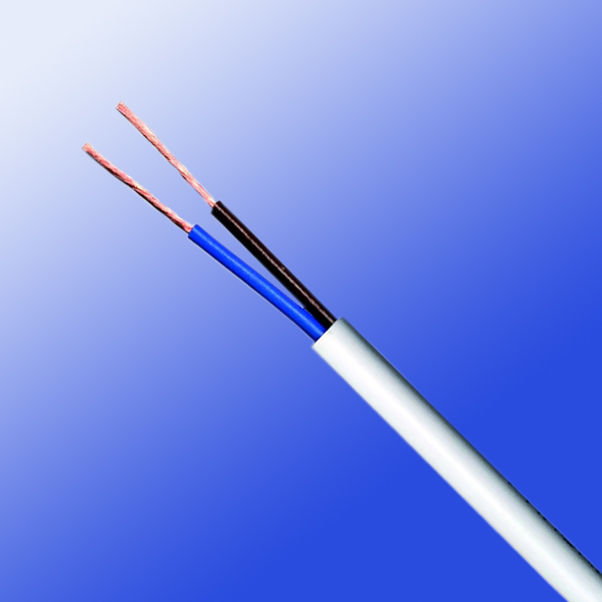

H05BB-F /H07BB-F
Application and Description
These rubbers insulated and sheathed electric cables, with a parallel EPDM tube, joined with a textile braid, are used especially for electric steam generator irons (named usually “vaporellas”). The cables are suitable for the stripping force on automatic machines and for low temperature environments.
Standard and Approval
HD 22.12
CEI 20-19/12
NF C 32-102-4
Cable Construction
CONDUCTOR | Bare/Tinned copper strand conductor |
|---|---|
INSULATION | EPR rubber type E17 |
SHEATH | EPR rubber type EM6 |
SHEATH COLOR | normally black |
| acc. to DIN VDE 0295 class 5. IEC 60228 class 5 |
| Color coded to VDE 0293-308(3 conductors and above with yellow/green wire) |
Technical Characteristics
WORKING VOLTAGE | 300/500V (H05BB-F) ; 450/750V (H07BB-F) |
|---|---|
TEST VOLTAGE | 2000V (H05BB-F) ; 2500V (H07BB-F) |
FLEXING BENDING RADIUS | 4 x Ø |
STATIC BENDING RADIUS | 3 x Ø |
OPERATING TEMPERATURE | - 40ºC to + 60ºC (H05BB-F) ; - 25℃ to + 90ºC (H07BB-F) |
SHORT CIRCUIT TEMPERATURE | 250ºC |
FLAME RETARDANT | VDE 0482-332-1-2/IEC 60332-1 |
Cable Parameter
AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|---|---|
# X MM² | MM | MM | KG/KM | KG/KM | |
H05BB-F | |||||
18(24/32) | 0.6 | 0.8 | 6.3 | 53 | |
17(32/32) | 0.6 | 0.9 | 6.8 | 64 | |
16(30/30) | 0.8 | 1.0 | 8.3 | 95 | |
14(50/30) | 0.9 | 1.1 | 9.8 | 140 | |
18(24/32) | 0.6 | 0.9 | 6.8 | 65 | |
17(32/32) | 0.6 | 0.9 | 7.2 | 77 | |
16(30/30) | 0.8 | 1 | 8.8 | 115 | |
14(50/30) | 0.9 | 1.1 | 10.4 | 170 | |
12(56/28) | 1 | 1.2 | 12.2 | 240 | |
10(84/28) | 1 | 1.4 | 13.6 | 320 | |
18(24/32) | 0.6 | 0.9 | 7.4 | 80 | |
17(32/32) | 0.6 | 0.9 | 7.8 | 95 | |
16(30/30) | 0.8 | 1.1 | 9.8 | 145 | |
14(50/30) | 0.9 | 1.2 | 11.5 | 210 | |
12(56/28) | 1 | 1.3 | 13.5 | 300 | |
10(84/28) | 1 | 1.5 | 15.4 | 405 | |
18(24/32) | 0.6 | 1 | 8.3 | 100 | |
17(32/32) | 0.6 | 1 | 8.7 | 115 | |
16(30/30) | 0.8 | 1.1 | 10.7 | 170 | |
14(50/30) | 0.9 | 1.3 | 12.8 | 255 | |
H07BB-F | |||||
17(32/32) | 0.8 | 1.3 | 8.20 | 89 | |
16(30/30) | 0.8 | 1.5 | 9.10 | 113 | |
14(50/30) | 0.9 | 1.7 | 10.85 | 165 | |
17(32/32) | 0.8 | 1.4 | 8.90 | 108 | |
16(30/30) | 0.8 | 1.6 | 9.80 | 138 | |
14(50/30) | 0.9 | 1.8 | 11.65 | 202 | |
17(32/32) | 0.8 | 1.5 | 9.80 | 134 | |
16(30/30) | 0.8 | 1.7 | 10.85 | 171 | |
14(50/30) | 0.9 | 1.9 | 12.80 | 248 | |
17(32/32) | 0.8 | 1.6 | 10.80 | 172 | |
16(30/30) | 0.8 | 1.8 | 11.90 | 218 | |
Introduction to H05BB-F and H07BB-F Cables
In the world of industrial electrical solutions, the H05BB-F and H07BB-F harmonized code cables stand out for their durability, flexibility, and specialised application in challenging environments. These rubber-insulated and sheathed electric cables, featuring a parallel EPDM tube and textile braid, are engineered for demanding applications, such as electric steam generator irons (commonly known as “vaporellas”). Their robust construction makes them ideal for use in low-temperature settings and automated stripping processes, ensuring reliability and efficiency.
Applications
The H05BB-F and H07BB-F cables are tailored for specific industrial applications:
Electric Steam Generator Irons: Their parallel EPDM tube and textile braid make them perfect for “vaporella” irons, which require flexible, heat-resistant cables.
Low-Temperature Environments: With operating temperatures as low as -40°C (H05BB-F), these cables are suitable for cold storage facilities and outdoor applications in harsh climates.
Automated Manufacturing: The cables’ design supports high stripping forces on automatic machines, streamlining production processes.
General Industrial Use: Their flexibility and durability make them ideal for machinery, portable tools, and equipment requiring reliable power delivery.
In South Africa, these cables are increasingly used in industries such as manufacturing, mining, and agriculture, where robust and flexible cabling is essential.
Advantages
The H05BB-F and H07BB-F cables offer several benefits:
Durability: The EPR insulation and sheath provide excellent resistance to abrasion, chemicals, and extreme temperatures.
Flexibility: The Class 5 copper conductor and rubber construction ensure high flexibility, ideal for dynamic applications.
Safety: Flame-retardant properties and compliance with international standards reduce fire risks.
Versatility: Available in various core counts and cross-sectional areas, these cables cater to a wide range of industrial needs.
Low-Temperature Performance: The H05BB-F’s ability to operate at -40°C makes it a go-to choice for South Africa’s colder regions, such as the Free State and Lesotho highlands.
South African Case Studies
Case Study 1: Textile Manufacturing in Durban
A leading textile factory in Durban adopted H05BB-F cables for its steam-ironing systems. The factory, which produces high-quality garments for export, required cables that could withstand constant flexing and high humidity. The H05BB-F cables’ EPR insulation and textile braid ensured reliable performance, reducing downtime and maintenance costs by 15% over six months.
Case Study 2: Cold Storage Facility in Cape Town
A Cape Town-based cold storage company integrated H05BB-F cables into its refrigeration units, operating at -30°C. The cables’ low-temperature resilience and flame-retardant properties provided a safe and efficient solution, contributing to a 20% reduction in energy losses compared to previous cabling systems.
Case Study 3: Mining Equipment in Johannesburg
A mining equipment supplier in Johannesburg implemented H07BB-F cables in portable machinery used in Gauteng’s gold mines. The cables’ higher voltage rating (450/750V) and robust sheath withstood the harsh underground conditions, improving equipment reliability and worker safety.
FAQs
1. What are the main differences between H05BB-F and H07BB-F cables?
The H05BB-F operates at 300/500V and is suited for lower-temperature environments (-40°C to +60°C), while the H07BB-F supports 450/750V and a wider temperature range (-25°C to +90°C), making it ideal for heavier-duty applications.
2. Are these cables suitable for outdoor use in South Africa?
Yes, both cables are designed for challenging environments. The H05BB-F is particularly effective in colder regions, while the H07BB-F handles higher temperatures, making it suitable for South Africa’s diverse climates.
3. Can these cables be used in automated manufacturing?
Absolutely. Their design supports high stripping forces on automatic machines, ensuring compatibility with modern manufacturing processes.
4. Are the cables flame-retardant?
Yes, both cables comply with VDE 0482-332-1-2/IEC 60332-1, ensuring they resist flame propagation.
5. Where can I source these cables in South Africa?
Reputable electrical suppliers in Johannesburg, Cape Town, and Durban stock H05BB-F and H07BB-F cables. Always ensure suppliers provide cables meeting HD 22.12 and CEI 20-19/12 standards.
The H05BB-F and H07BB-F harmonized code industrial cables are a testament to engineering excellence, combining flexibility, durability, and safety for specialised applications like steam generator irons and low-temperature environments. Their technical specifications, adherence to international standards, and proven performance in South African industries make them a reliable choice for manufacturers, miners, and cold storage operators. By understanding their capabilities and applications, businesses can harness these cables to enhance efficiency and safety in their operations.
