H05BN4-F
Application and Description
These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc.
They are also suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.
Standard and Approval
CEI 20-19/12, CEI 20-35 (EN 60332-1), BS6500, BS7919,
ROHS compliant, VDE 0282 Part-12, IEC 60245-4, CE Low-Voltage

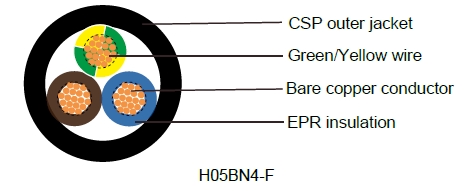

Cable Construction
Technical Characteristics
Fine bare copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
Color code VDE-0293-308 |
CSP(Chlorosulphonated Polyethylene) outer jacket EM7 |
Working voltage | 300/500 volts |
Test voltage | 2000 volts |
Flexing bending radius | 6.0 x O |
Fixed bending radius | 4.0 x O |
Temperature Range | -20oC to +90oC |
Maximum Short Circuit Temperature | +250oC |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |
|---|---|---|---|---|---|---|
18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.1 | 29 | 54 |
18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.7 | 43 | 68 |
18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 7.3 | 58 | 82 |
18(24/32) | 5 x 0.75 | 0.6 | 1.0 | 8.1 | 72 | 108 |
17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.6 | 19 | 65 |
17(32/32) | 3 x 1 | 0.6 | 0.9 | 7.0 | 29 | 78 |
17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.6 | 38 | 95 |
17(32/32) | 5 x 1 | 0.6 | 1.0 | 8.5 | 51 | 125 |
Introduction to the H05BN4-F Cable
The H05BN4-F cable is a robust and flexible electric cable designed for demanding environments, making it a popular choice across various industries in South Africa. With its ethylene propylene rubber (EPR) insulation and chlorosulphonated polyethylene (CSP) sheath, this cable is engineered to withstand harsh conditions, including exposure to oil, grease, humidity, and extreme weather. Its versatility makes it suitable for applications ranging from industrial plants and machine shops to agricultural equipment and caravan camping setups.
Applications of the H05BN4-F Cable
The H05BN4-F cable’s robust design makes it ideal for a variety of scenarios in South Africa, including:
Industrial Plants: Powering small appliances, heating plates, and portable lamps in manufacturing facilities.
Machine Shops: Providing reliable power under weak mechanical stress and exposure to oils and greases.
Agricultural Equipment: Supporting farming machinery in humid or wet environments, such as irrigation systems in rural South Africa.
Caravans and Camping: Ensuring safe and durable power supply for camping equipment in rugged outdoor settings, such as game reserves or coastal campsites.
Construction Sites: Supplying power to temporary setups where flexibility and resistance to environmental factors are crucial.
Advantages of the H05BN4-F Cable
The H05BN4-F cable offers several benefits, making it a preferred choice in South Africa:
Durability: The CSP sheath provides excellent resistance to oil, grease, and weathering, ensuring long-term performance in harsh conditions.
Flexibility: Fine copper strands and EPR insulation allow for easy installation in tight spaces or dynamic applications.
High Temperature Tolerance: Operates reliably up to 90°C, with a short-circuit tolerance of up to 250°C.
Safety Compliance: Meets multiple international standards, including flame retardancy and RoHS compliance, ensuring environmental and user safety.
Versatility: Suitable for both indoor and outdoor use, from dry industrial settings to wet agricultural environments.
Frequently Asked Questions (FAQs)
Q1: What makes the H05BN4-F cable suitable for outdoor use in South Africa?
A: Its CSP sheath and EPR insulation provide resistance to moisture, UV rays, and oils, making it ideal for South Africa’s diverse climates, from humid coastal regions to dry inland areas.
Q2: Can the H05BN4-F cable be used in high-temperature environments?
A: Yes, it can operate at temperatures up to 90°C. However, avoid skin contact during high-temperature use to prevent burns.
Q3: Is the H05BN4-F cable safe for use in industrial settings?
A: Absolutely. It complies with strict standards like IEC 60332.1 for flame retardancy and has a high insulation resistance, ensuring safety in industrial environments.
Q4: What is the bending radius, and why does it matter?
A: The bending radius (6.0 x overall diameter for flexing, 4.0 x for fixed) indicates how tightly the cable can be bent without damage. This flexibility is crucial for installations in confined spaces or dynamic applications.
Q5: Where can I purchase the H05BN4-F cable in South Africa?
A: It is available through major electrical suppliers and distributors in South Africa, such as Voltex or ARB Electrical Wholesalers. Always ensure the supplier provides certified products compliant with local regulations.
The H05BN4-F cable is a versatile, durable, and safe solution for powering equipment across South Africa’s industrial, agricultural, and recreational sectors. Its robust construction, compliance with international standards, and ability to perform in harsh conditions make it an essential component for reliable power delivery. Whether you’re operating a vineyard in the Western Cape or setting up a campsite in Kruger National Park, the H05BN4-F cable offers unmatched performance and safety.
