H05BN4-F
Application and Description
These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc.
They are also suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.
Standard and Approval
NF C 32-102-12
ROHS compliant
VDE 0282 Part-12
IEC 60245-4
CE Low-Voltage

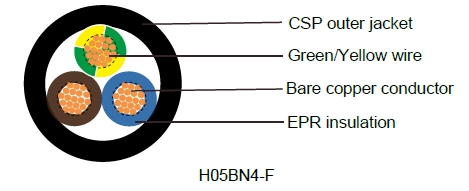

Cable Construction
Fine bare copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
Color code VDE-0293-308 |
CSP(Chlorosulphonated Polyethylene) outer jacket EM7 |
Technical Characteristics
WORKING VOLTAGE | 300/500 volts |
|---|---|
TEST VOLTAGE | 2000 volts |
FLEXING BENDING RADIUS | 6.0 x Ø |
FIXED BENDING RADIUS | 4.0 x Ø |
TEMPERATURE RANGE | -20ºC to +90ºC |
MAXIMUM SHORT CIRCUIT TEMPERATURE | +250ºC |
FLAME RETARDANT | NF C 32-070 |
INSULATION RESISTANCE | 20 MΩ x km |
Cable Parameter
AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
|---|---|---|---|---|---|---|
| # X MM² | MM | MM | MM | KG/KM | KG/KM |
18(24/32) | 0.6 | 0.8 | 6.1 | 29 | 54 | |
18(24/32) | 0.6 | 0.9 | 6.7 | 43 | 68 | |
18(24/32) | 0.6 | 0.9 | 7.3 | 58 | 82 | |
18(24/32) | 0.6 | 1.0 | 8.1 | 72 | 108 | |
17(32/32) | 0.6 | 0.9 | 6.6 | 19 | 65 | |
17(32/32) | 0.6 | 0.9 | 7.0 | 29 | 78 | |
17(32/32) | 0.6 | 0.9 | 7.6 | 38 | 95 | |
17(32/32) | 0.6 | 1.0 | 8.5 | 51 | 125 |
Introduction to the H05BN4-F Cable
The H05BN4-F cable, a harmonized code industrial cable, is a robust and versatile electrical solution designed for demanding environments. With its Ethylene Propylene Rubber (EPR) insulation and Chlorosulphonated Polyethylene (CSP) sheath, this cable is engineered to withstand harsh conditions, including exposure to oils, grease, moisture, and varying weather conditions. Its flexibility and durability make it a preferred choice for applications in industrial settings, agricultural operations, and even recreational environments such as caravans and camping equipment.
Applications of the H05BN4-F Cable
The H05BN4-F cable’s versatility makes it suitable for a wide range of applications, particularly in environments requiring resilience to mechanical stress, moisture, and chemicals. Key applications include:
Industrial Settings: Power supply for small appliances in industrial plants and machine shops, such as portable tools, heating plates, and lighting systems.
Agricultural Operations: Used in farming equipment, where exposure to moisture, oils, and varying temperatures is common.
Recreational Use: Ideal for caravans and camping equipment, providing reliable power in outdoor environments.
Wet and Humid Environments: Suitable for use in places with high humidity or direct contact with water, thanks to its CSP sheath.
The cable’s ability to operate at temperatures up to 90°C makes it suitable for high-temperature environments, though skin contact should be avoided to prevent burns.
Advantages of the H05BN4-F Cable
The H05BN4-F cable offers several advantages that make it a preferred choice for industrial and outdoor applications:
Durability: The CSP sheath and EPR insulation provide exceptional resistance to environmental stressors, extending the cable’s lifespan.
Flexibility: Fine copper strands and a flexible bending radius make it suitable for dynamic applications.
Thermal Stability: Operates reliably in temperatures from -20°C to +90°C, with a high short-circuit tolerance.
Safety: Compliance with flame-retardant standards and high insulation resistance ensures safe operation.
Versatility: Suitable for a wide range of applications, from industrial to recreational settings.
Frequently Asked Questions (FAQs)
1. What is the H05BN4-F cable used for?
The H05BN4-F cable is used for powering small appliances in industrial plants, machine shops, agricultural equipment, and recreational settings like caravans and camping. It is suitable for dry, humid, or wet environments and can withstand exposure to oils and grease.
2. What does the harmonized code “H05BN4-F” mean?
The code breaks down as follows:
H: Harmonized cable, meeting European standards.
05: Rated voltage of 300/500 volts.
B: EPR insulation.
N4: CSP sheath.
F: Fine wire strands for flexibility.
3. Can the H05BN4-F cable be used outdoors?
Yes, the cable is designed for outdoor use, with its CSP sheath providing protection against moisture, oils, and weather conditions. It is ideal for applications like camping equipment and agricultural machinery.
4. What is the maximum temperature the cable can withstand?
The cable operates at a maximum conductor temperature of 90°C in normal use and can tolerate short-circuit temperatures up to 250°C. However, skin contact should be avoided at high temperatures to prevent burns.
5. Is the H05BN4-F cable flame-retardant?
Yes, the cable complies with NF C 32-070 for flame retardancy, reducing the risk of fire propagation in case of a fault.
6. What are the differences between the 0.75 mm² and 1 mm² configurations?
The 0.75 mm² configuration is lighter and more compact, suitable for lower current loads, while the 1 mm² configuration offers higher current capacity and slightly larger dimensions. Both maintain similar insulation and sheath thicknesses, ensuring comparable durability.
7. Is the H05BN4-F cable RoHS compliant?
Yes, the cable is RoHS compliant, meaning it is free from hazardous substances, aligning with environmental regulations.
8. Can the cable be used in high-flexing applications?
Yes, with a flexing bending radius of 6.0 x Ø, the H05BN4-F cable is designed for applications requiring frequent movement, such as portable tools and equipment.
Comparison with Other Cable Types
To highlight the H05BN4-F’s unique attributes, it is useful to compare it with other common cable types, such as PVC-insulated cables (e.g., H05VV-F) and silicone rubber cables:
H05BN4-F vs. H05VV-F (PVC-insulated): The H05BN4-F’s EPR insulation and CSP sheath offer superior resistance to oils, chemicals, and extreme temperatures compared to the H05VV-F’s PVC insulation and sheath. The H05BN4-F is better suited for harsh environments, while the H05VV-F is more cost-effective for less demanding applications.
H05BN4-F vs. Silicone Rubber Cables: Silicone cables can withstand higher temperatures (up to 180°C), but the H05BN4-F offers better resistance to oils and mechanical stress due to its CSP sheath. The H05BN4-F is also more cost-effective for applications not requiring extreme heat resistance.
The H05BN4-F harmonized code industrial cable is a versatile and robust solution for a wide range of applications, from industrial plants to agricultural and recreational settings. Its EPR insulation and CSP sheath provide exceptional resistance to environmental stressors, while its compliance with international standards ensures safety and reliability. Case studies from South Africa demonstrate its effectiveness in demanding environments, and its advantages over other cable types highlight its suitability for harsh conditions. By addressing frequently asked questions and providing a detailed analysis, this article underscores the H05BN4-F cable’s role as a critical component in modern electrical systems.
