H05GG-F Harmonized Code Cable

H05GG-F Cable: Designed for Low Mechanical Stress Environments

H05GG-F

Application and Description

For general use in domestic premises, kitchens and offices and for supplying appliances where the cables are subjected to low mechanical stresses. Also for low temperature uses.(eg., cooking appliances, soldering irons, toasters)

Standard and Approval

  • HD 22.11 S1

  • VDE 0282 part 11

  • CEI 20-19/11

  • NFC 32-102-11

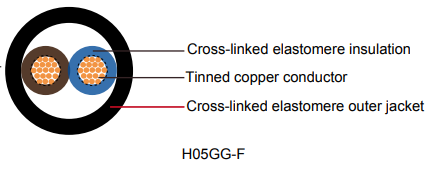

Cable Construction

Fine tinned copper strands

Strands to VDE-0295 Class-5, IEC 60228 Cl-5

Cross-linked elastomere E13 insulation

Color code VDE-0293-308

Cross-linked elastomere EM 9 outer jacket - black

Technical Characteristics

WORKING VOLTAGE

300/500V

TEST VOLTAGE

2000V

FLEXING BENDING RADIUS

4 x Ø

STATIC BENDING RADIUS

3 x Ø

TEMPERATURE RANGE

-15 ºC to +110 ºC

SHORT CIRCUIT TEMPERATURE

200 ºC

FLAME RETARDANT

IEC 60332 -1

HALOGEN-FREE

IEC 60754-1

LOW SMOKE

IEC 60754-2

SMOKE DENSITY

IEC 61034

Cable Parameter

AWG

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA

NOMINAL THICKNESS OF INSULATION

NOMINAL THICKNESS OF SHEATH

NOMINAL OVERALL DIAMETER

NOMINAL WEIGHT

# X MM²

MM

MM

MM

KG/KM

18(24/32)

2x0.75

0.6

0.8

6.3

53

17(32/32)

2x1

0.6

0.9

6.8

64

16(30/30)

2x1.5

0.8

1

8.3

95

14(50/30)

2x2.5

0.9

1.1

9.8

140

18(24/32)

3x0.75

0.6

0.9

6.8

65

17(32/32)

3x1

0.6

0.9

7.2

77

16(30/30)

3x1.5

0.8

1

8.8

115

14(50/30)

3x2.5

0.9

1.1

10.4

170

12(56/28)

3 x 4

1

1.2

12.2

240

10(84/28)

3 x 6

1

1.4

13.6

320

18(24/32)

4x0.75

0.6

0.9

7.4

80

17(32/32)

4x1

0.6

0.9

7.8

95

16(30/30)

4x1.5

0.8

1.1

9.8

145

14(50/30)

4x2.5

0.9

1.2

11.5

210

12(56/28)

4 x 4

1

1.3

13.5

300

10(84/28)

4 x 6

1

1.5

15.4

405

18(24/32)

5x0.75

0.6

1

8.3

100

17(32/32)

5x1

0.6

1

8.7

115

16(30/30)

5x1.5

0.8

1.1

10.7

170

14(50/30)

5x2.5

0.9

1.3

12.8

255

What is the H05GG-F Cable?

The H05GG-F cable is a flexible, harmonized code cable designed for general-purpose use in environments with low mechanical stresses. Its designation, "H05GG-F," provides insight into its characteristics:

  • H: Harmonized cable, adhering to European standards.

  • 05: Indicates a working voltage of 300/500V.

  • GG: Refers to the cross-linked elastomer insulation and outer jacket, ensuring flexibility and durability.

  • F: Denotes fine-stranded conductors, which enhance flexibility.

This cable is commonly used in domestic premises, offices, and kitchens, where it powers appliances subjected to minimal mechanical strain. Its ability to operate in low-temperature environments makes it suitable for devices like toasters and soldering irons, which require reliable performance under varying conditions.

Standards and Approvals Governing the H05GG-F Cable

The H05GG-F cable complies with several international standards, ensuring safety, reliability, and performance. These standards include:

  • HD 22.11 S1: A harmonized European standard for flexible cables with cross-linked elastomeric insulation.

  • VDE 0282 Part 11: A German standard specifying requirements for flexible cables with special rubber insulation.

  • CEI 20-19/11: An Italian standard for rubber-insulated cables.

  • NFC 32-102-11: A French standard for flexible cables with elastomeric insulation.

These standards ensure that the H05GG-F cable meets stringent safety and performance criteria, making it suitable for use across Europe and in regions like South Africa, where international standards are often adopted to ensure compatibility with global equipment.

Applications of the H05GG-F Cable

The H05GG-F cable is designed for environments where flexibility and safety are paramount. Its primary applications include:

  • Domestic Premises: Used in homes for wiring appliances like toasters, microwaves, and vacuum cleaners.

  • Kitchens: Powers commercial kitchen equipment, such as mixers and grills, where low mechanical stress and high temperatures are common.

  • Offices: Supports office equipment like printers, computers, and lighting systems.

  • Low-Temperature Appliances: Ideal for devices like soldering irons and cooking appliances, where cables must withstand heat without degrading.

In South Africa, the H05GG-F cable is particularly valuable in urban and industrial settings, where reliable power distribution is essential. Its halogen-free and low-smoke properties make it a preferred choice for public buildings, such as schools and hospitals, where fire safety is a priority.

Frequently Asked Questions (FAQs)

What makes the H05GG-F cable suitable for low mechanical stress environments?

The H05GG-F cable’s fine tinned copper strands and cross-linked elastomer insulation provide exceptional flexibility, allowing it to bend without damage in low-stress applications. Its bending radius (4 x Ø for flexing, 3 x Ø for static) ensures it can adapt to various installation scenarios.

Why is the H05GG-F cable considered safe for public buildings?

The cable’s compliance with IEC 60332-1 (flame retardant), IEC 60754-1 (halogen-free), IEC 60754-2 (low smoke), and IEC 61034 (smoke density) makes it ideal for public buildings, where minimizing fire risks and ensuring visibility during emergencies are critical.

Can the H05GG-F cable be used outdoors in South Africa?

While the H05GG-F cable is primarily designed for indoor use, its temperature range (-15°C to +110°C) and durable outer jacket make it suitable for limited outdoor applications, provided it is protected from direct exposure to UV radiation and moisture.

How does the H05GG-F cable support South Africa’s renewable energy goals?

The cable’s heat resistance, flexibility, and safety features make it ideal for renewable energy projects, such as solar and wind installations, where reliable power distribution is essential in harsh environmental conditions.

The H05GG-F harmonized code industrial cable is a versatile and reliable solution for low mechanical stress environments, offering flexibility, safety, and compliance with international standards. Its applications in domestic, commercial, and industrial settings, combined with its relevance in South Africa’s urban and renewable energy sectors, highlight its importance in modern electrical systems. As South Africa continues to address its infrastructure and safety challenges, the H05GG-F cable will remain a critical component in powering the nation’s growth.
