H05V-K

What is the H05V-K Cable?

The H05V-K cable is a single-core, PVC-insulated wire designed for fixed and flexible installations in dry indoor environments. Its name reflects its compliance with harmonised European standards (H), a working voltage of 300/500V (05), and PVC insulation (V) with a flexible conductor (K). Widely used in South Africa, it’s a go-to choice for electricians and engineers due to its versatility and safety features.

Technical Specifications

The H05V-K cable is engineered with precision to meet rigorous standards. Here’s a breakdown of its key specs:

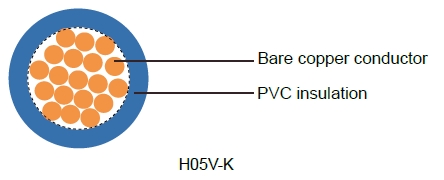

• Conductor: Fine bare copper strands, compliant with VDE-0295 Class-5 and IEC 60228 Class-5, ensuring high flexibility.

• Insulation: Special PVC TI1 core insulation, offering excellent electrical insulation and durability.

• Voltage Rating: 300/500V working voltage, with a test voltage of 2000V.

• Bending Radius: 12.5 x outer diameter for both flexing and static applications, allowing easy installation in tight spaces.

• Temperature Range:

  • Flexing: -5°C to +70°C

  • Static: -30°C to +80°C

• Flame Retardancy: Meets IEC 60332.1 standards, reducing fire risk.

• Insulation Resistance: 10 MΩ x km, ensuring minimal electrical leakage.

• Cable Parameters:

  • 0.5 mm² (AWG 20): 2.1 mm diameter, 4.9 kg/km copper weight, 10 kg/km total weight

  • 0.75 mm² (AWG 18): 2.4 mm diameter, 7.2 kg/km copper weight, 13 kg/km total weight

  • 1 mm² (AWG 17): 2.6 mm diameter, 9.6 kg/km copper weight, 15 kg/km total weight

• Standards and Approvals: CEI 20-20/3, CEI 20-35, CEI 20-52, HD 21.3 S3, CE Low Voltage Directive, and RoHS compliant.

These specs make the H05V-K cable ideal for a range of applications, from household wiring to industrial setups.

Applications in South Africa

The H05V-K cable is a versatile workhorse in South African electrical installations. Its flexibility and safety features make it suitable for:

• Appliance Wiring: Used inside household appliances like fridges, air conditioners, and microwaves, ensuring safe and reliable connections.

• Lighting Systems: Perfect for protective laying in lighting setups, such as in homes, offices, or public buildings like schools in Pretoria.

• Switchboards and Distribution Panels: Commonly used in electrical panels in factories and commercial buildings in Durban for efficient power distribution.

• Tube and Surface Mounting: Ideal for installations under plaster or within conduits in new housing developments in Gauteng.

South African Case Study: Green Point Stadium

During the 2010 FIFA World Cup, Cape Town’s Green Point Stadium (now DHL Stadium) underwent significant electrical upgrades. The H05V-K cable was used extensively for internal wiring in lighting and control systems. Its flame-retardant properties ensured compliance with strict safety regulations, while its flexibility allowed electricians to navigate complex layouts. This case highlights how the H05V-K cable supports large-scale, high-stakes projects in South Africa.

Advantages of the H05V-K Cable

Why is the H05V-K cable so popular among South African electricians? Here are its key benefits:

1. Flexibility: The Class-5 copper conductor allows the cable to bend easily, making it perfect for tight spaces or complex installations.

2. Safety: Its flame-retardant PVC insulation reduces fire risks, crucial for densely populated areas like Soweto or industrial zones in Port Elizabeth.

3. Durability: With a wide temperature range and high insulation resistance, it withstands South Africa’s varied climates, from humid coastal regions to dry inland areas.

4. Compliance: Meets international standards, ensuring reliability and legal compliance for projects across South Africa.

5. Versatility: Suitable for both residential and industrial applications, from small homes in Bloemfontein to large factories in Richards Bay.

FAQs About the H05V-K Cable

Q: Can the H05V-K cable be used outdoors?
A: No, it’s designed for dry indoor environments. For outdoor use, consider cables with UV-resistant or weatherproof insulation.

Q: Is the H05V-K cable safe for home use?
A: Absolutely! Its flame-retardant properties and high insulation resistance make it a safe choice for household wiring, provided it’s installed by a qualified electrician.

Q: What’s the difference between H05V-K and other cables like H07V-K?
A: The H05V-K has a 300/500V rating, while the H07V-K is rated for 450/750V, making it suitable for higher voltage applications. Always choose based on your project’s voltage needs.

Q: Where can I source H05V-K cables in South Africa?
A: Major suppliers like Voltex, ARB Electrical, or local hardware stores in cities like Johannesburg and Cape Town stock H05V-K cables. Always verify compliance with standards.

Q: Can it be used in high-temperature environments?
A: The cable operates safely up to 70°C when flexing and 80°C when static. For extreme heat, consult a professional for alternative options.

The H05V-K cable is a cornerstone of South Africa’s electrical infrastructure, offering flexibility, safety, and reliability for a wide range of applications. From powering homes in Pretoria to supporting iconic projects like Green Point Stadium, this cable meets the needs of both everyday and high-profile installations. Its compliance with international standards, flame-retardant properties, and adaptability make it a top choice for electricians across the country. Whether you’re a homeowner or an industrial engineer, the H05V-K cable is a smart, safe, and durable solution for your wiring needs.
